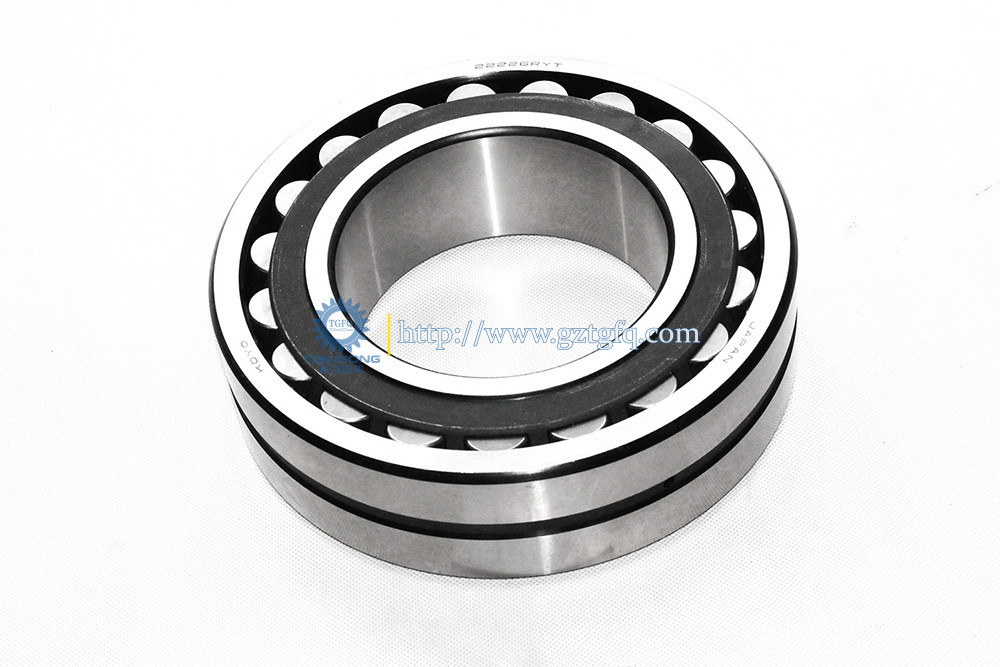

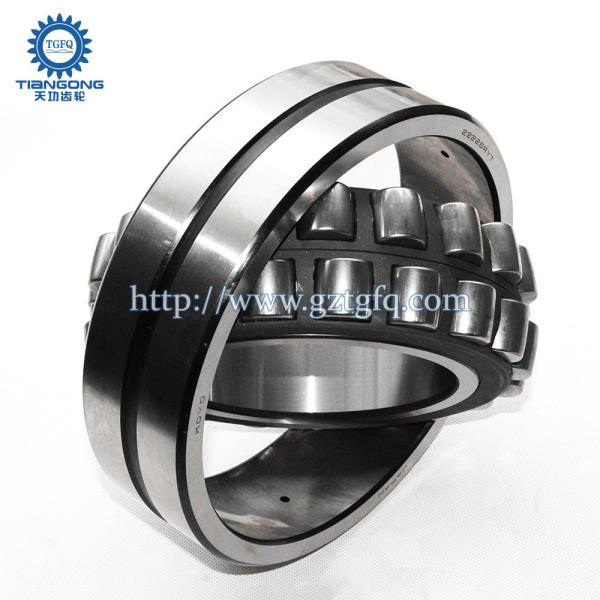

High Quality Spherical Roller Bearing 22226 CA CC W33 Roller Bearing

Product Description

Product Display

Self aligning Roller bearing is a kind of bearing with spherical roller between the inner ring of two raceways and the outer ring with
spherical raceway.
The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning
function as the automatic self-aligning roller bearing. When the shaft and shell are flexed, it can be adjusted automatically
without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial
load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be
directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder.
The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages.
The self-aligning roller bearing has cylindrical hole and conical hole. The cage is made of steel plate and synthetic resin. Its
feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning
roller bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall
not exceed 3 degrees.
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has
self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the
outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work.
There are two kinds of bore in self-aligning roller bearings: cylindrical bore and conical bore. The taper of conical inner hole is
1:12 or 1:30. In order to enhance the lubriion performance of the bearing, an annular oil groove and three oil holes are
machined on the outer ring of the bearing.

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.

TGFQ, manufacturing and trading combo, specializes in excavator gear parts and gearbox more than 20 years with professional team since 2000. After twenty years’ effort and development, now we have become one the leader manufacturers and suppliers in China.

TGFQ's main products are Excavator Hydraulic pump, Swing motor, Travel motor, Final drive, Swing motor assemblies, Swing gearbox, Travel gearbox and components. Until now, our products enjoy high reputation all over the world and have been exported to more than 150 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "TGFQ" are widely acclaimed by foreign customers.

All of our products are manufactured in our 120,000 square foot state-of-the-art manufacturing facility loed in Meizhou, Guangdong. At the same time, a professional sales team is equipped with 100 million yuan of stock in Guangzhou, Guangdong.
