Brand Name : | TGFQ |
Model Number : | ZAX120 |
Price : | 1000.00-5000.00usd |
Payment Terms : | L/C, T/T, D/P, D/A |
Supply Ability : | 500 pcs / month |
Delivery Time : | 1-3days |
High Quality Hitachi Excavator Slew Motor ZAX120 Swing Motor
What is excavator swing motor?
Swing motors are hydraulic motors that form the proper turning
force of excavator booms using oil pressure, shift rotation either
to the right or left and convey or cut off turning power.
How does excavator swing brake work?
The swing brake is a multi-disc and plate assembly loed in the
first stage planetary gear assembly. It is spring applied and
hydraulically released. The brake is designed as a parking brake
only and is not intended to be used as a cyclic service brake. The
discs and plates are lubried by the release signal oil.

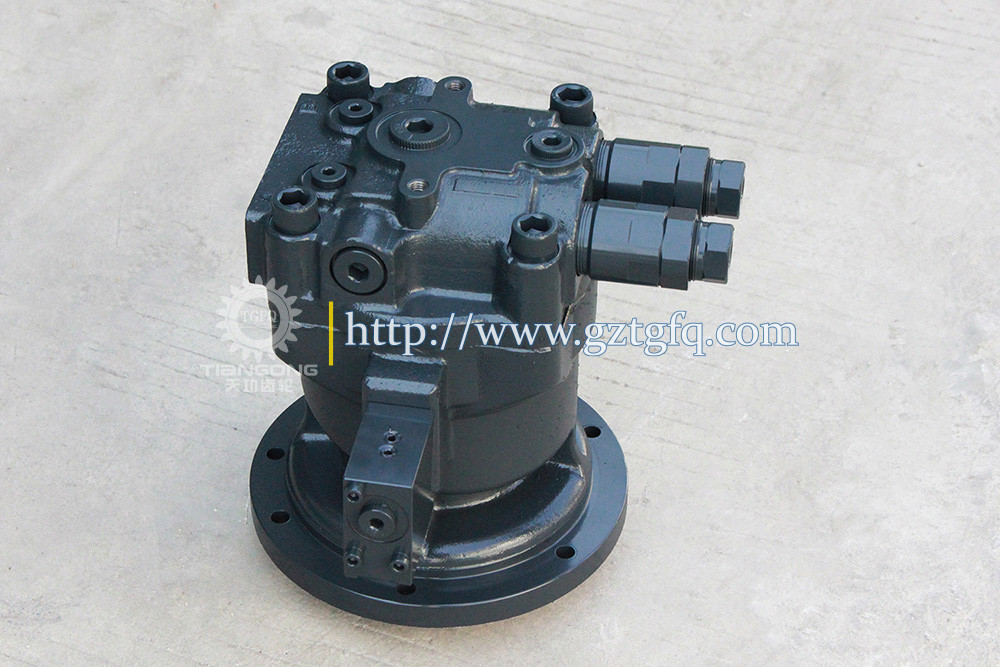

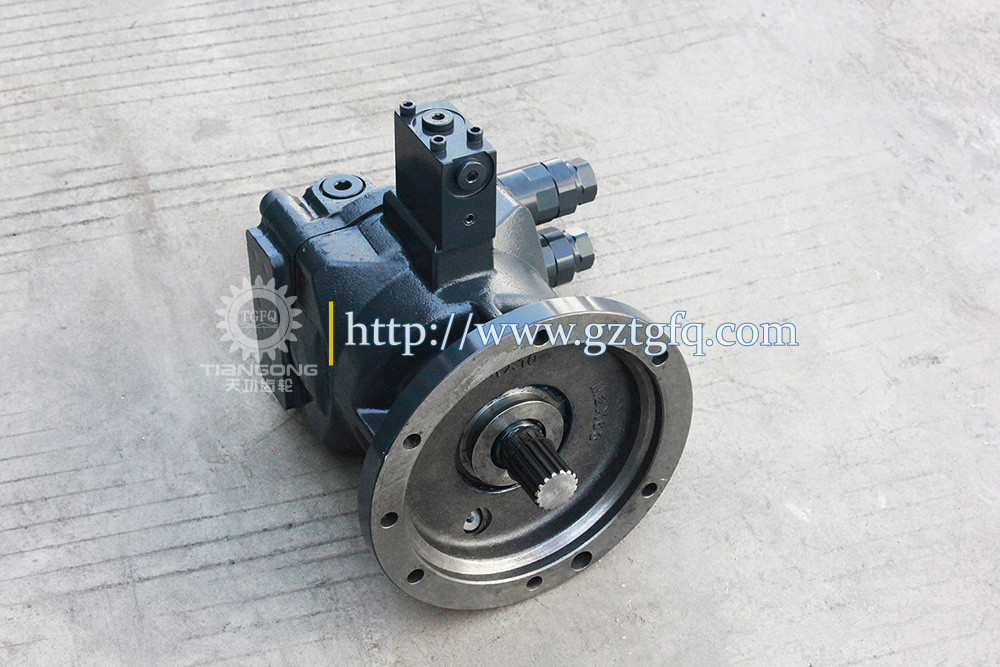

ZAX120 Picture Of Swing Motor
ZAX120 Drawing Of Swing Motor
Pos. | Part No | Qty | Parts Name | Comments |
9177550 | [1] | MOTOR;OIL | I 9196961 <for assembly of machine> | |
-9196961 | [1] | MOTOR;OIL | <for transportation> | |
1 | 8080152 | [1] | CASING | |
01A. | +++++++ | [1] | CASING;MOTOR | |
01B. | +++++++ | [1] | PLUNGER;ASSY | |
2 | 4320490 | [1] | SEAL;OIL | |
3 | 3085794 | [1] | SHAFT | |
5 | 991342 | [1] | RING;RETAINING | |
6 | 4402669 | [1] | BRG.;ROL. | |
7 | 940144 | [1] | RING;RETAINING | |
8 | 4396102 | [1] | PLATE;SWASH | |
10 | 2043442 | [1] | ROTOR | |
12 | 4413753 | [1] | SPRING;DISC | |
13 | 4413700 | [1] | BUSHING | |
14 | 8071556 | [9] | PISTON | |
15 | 3081727 | [1] | RETAINER | |
17 | 3087818 | [4] | PLATE;FRICTION | |
19 | 3075729 | [4] | PLATE | |
21 | 3084716 | [1] | PISTON | |
22 | 4413765 | [1] | O-RING | |
23 | 4413764 | [2] | O-RING | |
24 | 4434436 | [1] | SPRING;DISC | |
26 | 3089613 | [1] | PLATE;VALVE | |
28 | 9177595 | [1] | VALVE;BRAKE | I 9198979 <for assembly of machine> |
28 | -9198979 | [1] | VALVE;BRAKE | <for transportation> |
29 | 4413768 | [1] | BRG.;NEEDLE | |
30 | 4413761 | [2] | PIN;KNOCK | |
32 | A590916 | [4] | WASHER;SPRING | |
34 | M341650 | [4] | BOLT;SOCKET | |
36 | M492564 | [2] | SCREW;DRIVE | |
37 | 3088886 | [1] | NAME-PLATE | |
41 | 9134110 | [3] | PLUG | |
41A. | 957366 | [1] | O-RING | |
43 | 9134109 | [1] | PLUG | |
43A. | 4506408 | [1] | O-RING | |
45 | 4399892 | [1] | POPPET | |
46 | 4398846 | [1] | SPRING;COMPRES. | |
47 | 4452178 | [1] | WASHER;PLANE | |
50 | 4398889 | [1] | SPRING;COMPRES. |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
![]() |
