    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EX300-1 EX270-1
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    TGFQ Factory EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive


    Product Parameter:

    Product Name: Excavator Swing Gearbox Assy

    Place of Origin: China (Mainland)

    Model: EX300-1 EX270-1

    Part Number: 9083736 / 9097706

    MOQ: 1 PCS

    Payment term: L/C, T/T, D/P, D/A

    Delivery time: Within 1-3 days after receiving the payment

    Means of Transport: By Sea, By Air or By Express

    EX300-1 Product Photo:

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

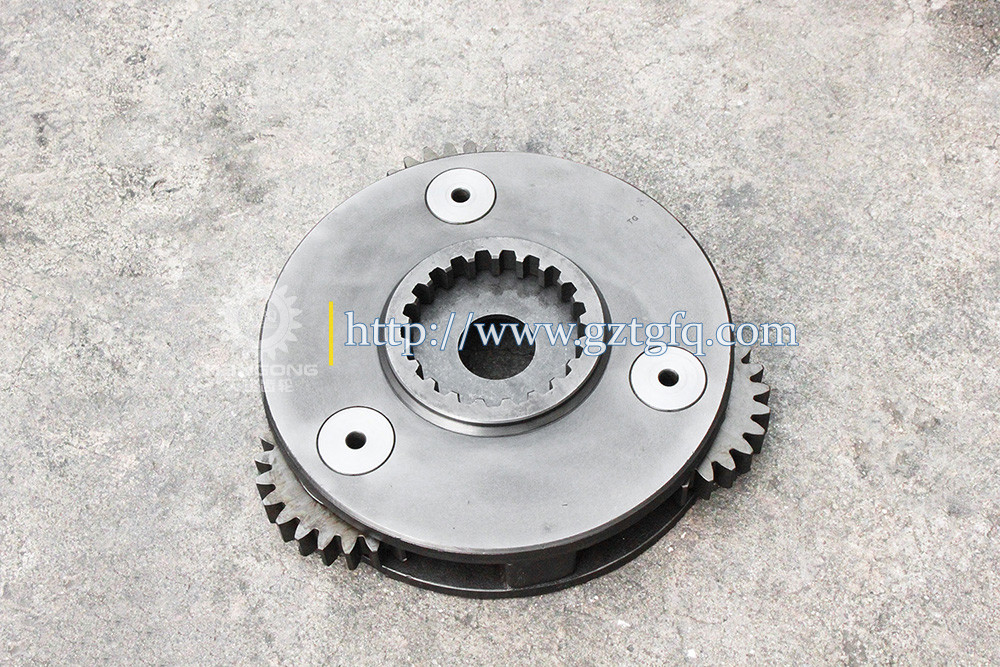

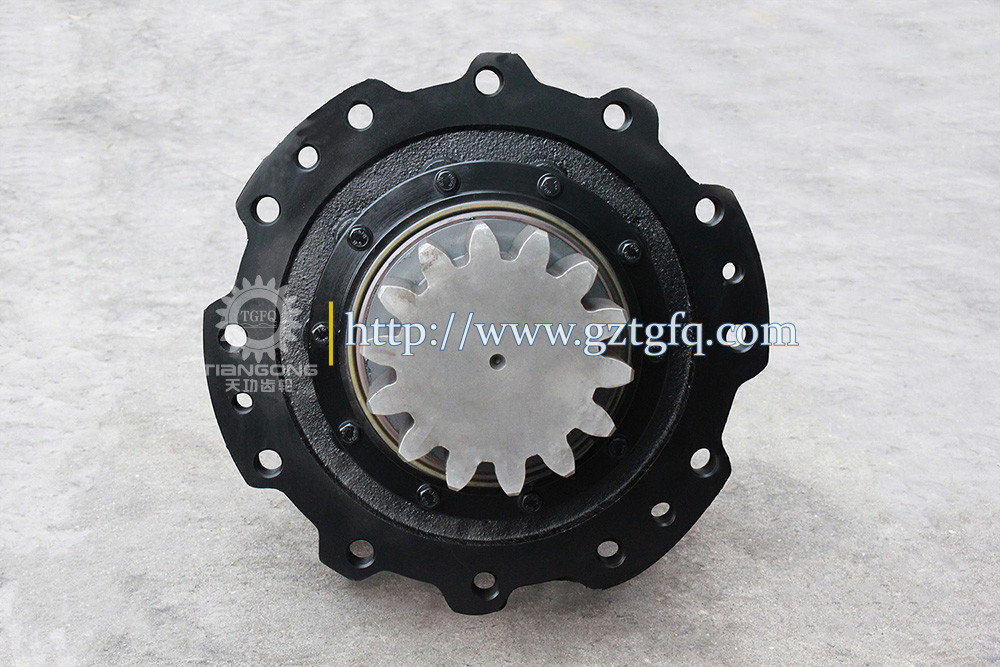

    EX300-1 Parts Photo:

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    EX300-1 Swing Drawing:

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    Parts on group SWING DEVICE:

    Pos.Part NoQtyParts NameComments
    22023371[1]CARRIER
    34194454[2]PLATE;THRUST
    44187588[3]PIN
    51010618[1]HOUSING
    6986954[6]PIN;SPRING
    73036571[1]GEAR;SUN
    93036572[3]GEAR;PLANETARY
    114187318[3]BRG.;NEEDLE
    129726338[3]GEAR;PLANETARY
    134187591[12]PLATE;THRUST
    15991354[1]RING;RETAINING
    164176247[1]BRG.;SPH.ROL.
    174019558[1]BRG.;ROL.Y 4305425
    174305425[1]BRG.;SPH.ROL.
    19J401640[2]PIN;KNOCK
    202023381[1]GEAR;INTERNAL
    222023369[1]SHAFT;PROP.Y 2034610
    222034610[1]SHAFT;PROP.
    30J901235[10]BOLT
    31A590912[10]WASHER;SPRING
    322024789[1]SLEEVE
    344187681[1]SEAL;OILY 4250326
    344250326[1]SEAL;OIL
    39A811140[1]O-RING
    464194712[1]COCK
    483039026[1]COVER
    494204138[1]O-RING
    504206425[1]RING;RETAINING
    514204644[2]MAGNET
    524204645[2]SCREW
    5394-2024[1]PLUG
    542024993[1]CARRIERY 2033936
    542033936[1]CARRIER
    554207808[3]PINY 4244694
    554244694[3]PIN
    563039518[1]GEAR;SUN
    572024994[1]GEAR;INTERNAL
    618043498[1]COVER(for transportation)
    62J902015[6]BOLT(for transportation)
    63A590920[6]WASHER;SPRING(for transportation)
    644232537[1]SHIM 0.5(for transportation)(for transportation)
    654232696[3]SHIM 1.0(for transportation)
    114959499[1]RING;RETAINING
    124J912013[12]BOLT
    124J912013[12]BOLT
    124J912016[12]BOLTI J912017
    124J912017[12]BOLT
    124J912017[12]BOLT
    125A590920[12]WASHER;SPRING
    128J932270[12]BOLT
    129A590922[12]WASHER;SPRING
    1374080398[2]PIN;KNOCK
    14194-2025[1]PLUG
    1443035979[1]GAUGE;LEVELI 3043290
    1443035979[1]GAUGE;LEVEL
    1443043290[1]GAUGE;LEVEL
    1443043290[1]GAUGE;LEVEL
    1454191879[1]PIPE
    1454191879[1]PIPE
    1454229787[1]PIPE
    1454229787[1]PIPE
    1584197829[1]MOTOR;OIL
    1584197829[1]MOTOR;OIL
    1584224993[1]MOTOR;OIL
    1584224993[1]MOTOR;OIL
    1593053093[1]NAME-PLATE
    160M492564[2]SCREW;DRIVE
    2009083736[1]SWING DEVICEY 9097706 (WITHOUT MOTOR)
    2009097706[1]SWING DEVICE(WITHOUT MOTOR)

    What is the function of swing motor on excavator?
    Swing motors (sometimes called swing drives) provide the powerful turning force of excavator booms using hydraulic oil pressure and are finely engineered to ensure trouble-free operation and performance.

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

    FAQ:
    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
