Brand Name : | TGFQ |
Model Number : | EC380D |
Price : | 200.00-800.00USD |
Payment Terms : | L/C, T/T, D/P, D/A |
Supply Ability : | 500 pcs / month |
Delivery Time : | 2-3days |
TGFQ Factory EC380D Swing Gearbox Swing Reducer Lingong400 Excavator Swing Device VOE14743548
Product Parameter:
Product Name: Excavator Swing Reduction Assy
Place of Origin: China (Mainland)
Model: EC380D
Part Number: VOE14743548 / VOE14680015
MOQ: 1 PCS
Payment term: L/C, T/T, D/P, D/A
Delivery time: Within 1-3 days after receiving the payment
Means of Transport: By Sea, By Air or By Express

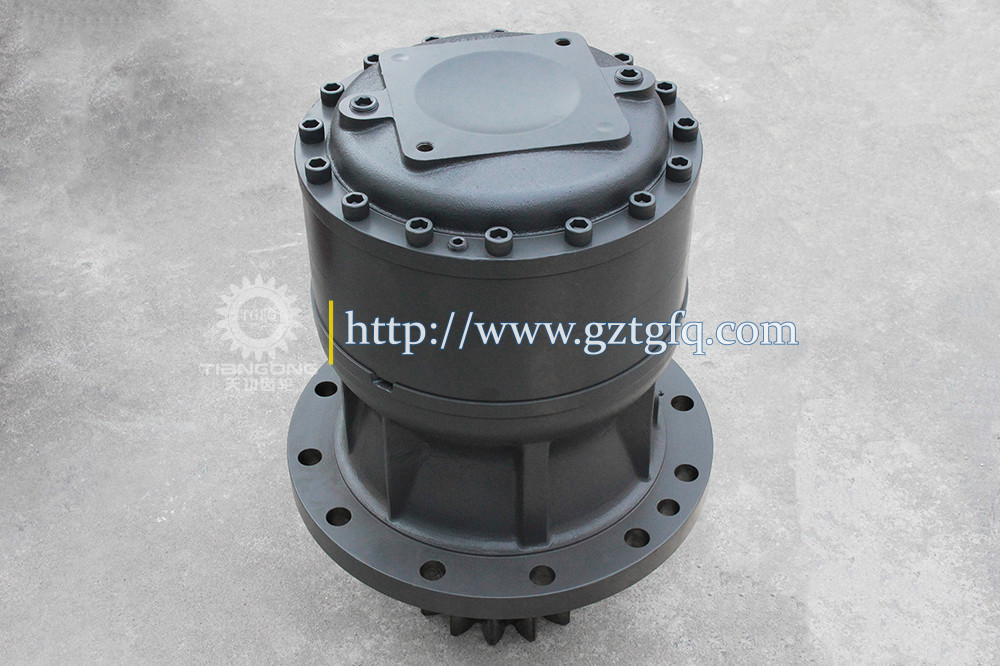

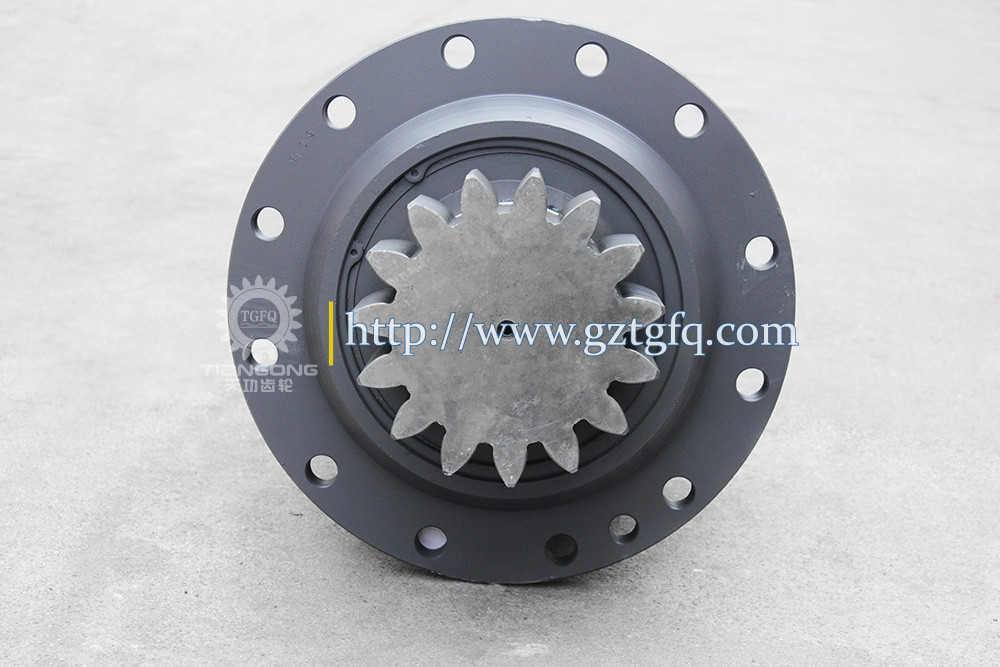

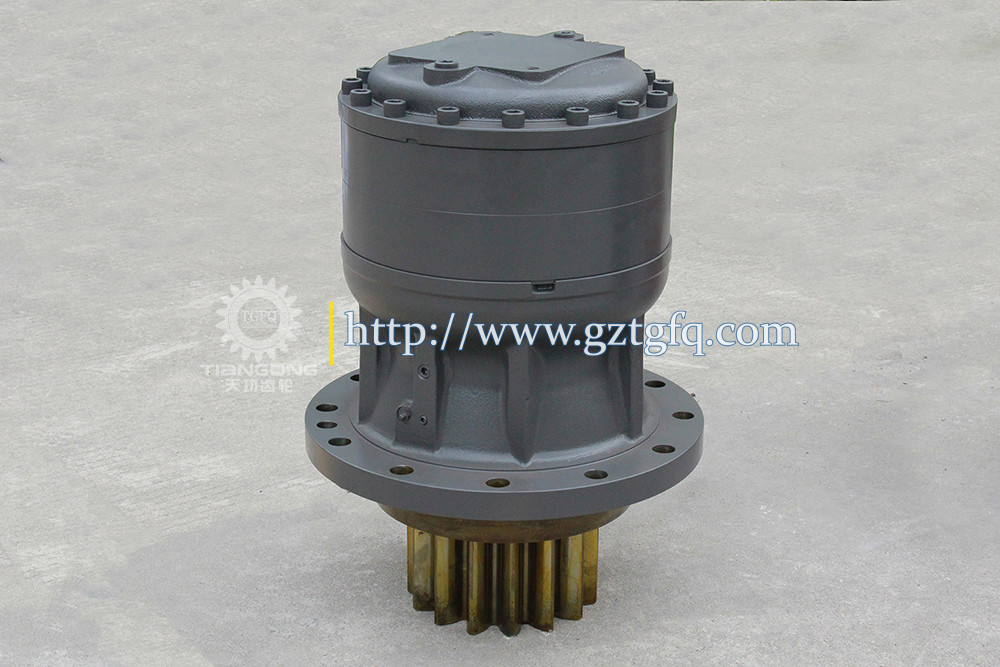

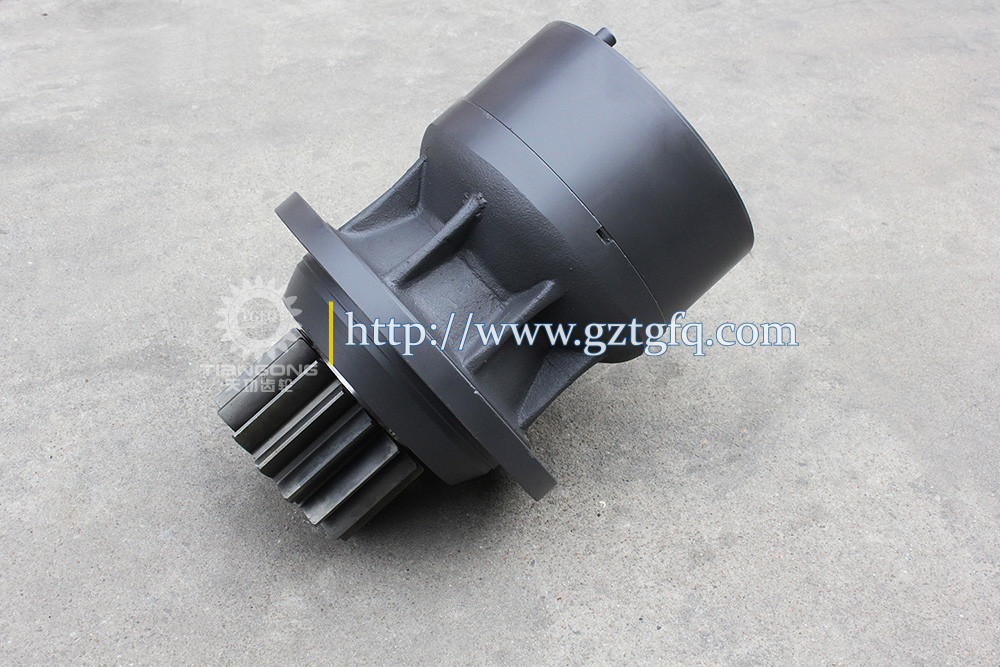

EC380D Product Photo:
E380D Swing Drawing:
Parts on group Swing gearbox:
Pos. | Part No | Qty | Parts name |
VOE14743548 | [1] | Swing gearbox | |
1 | VOE14637254 | [1] | Shaft |
2 | VOE14637256 | [1] | Collar |
3 | VOE14637258 | [1] | Ring |
4 | VOE14622894 | [1] | Roller bearing |
5 | VOE14596611 | [1] | Seal |
6 | VOE14637257 | [1] | Cover |
7 | VOE997876 | [12] | Hex. socket screw |
8 | VOE14637261 | [1] | Roller bearing |
9 | VOE14883598 | [1] | Retaining ring |
10 | SA9324-21317 | [4] | Pin |
11 | VOE14622914 | [1] | Gear |
12 | SA7118-30380 | [1] | Thrust ring |
13 | VOE14676744 | [1] | Planet carrier |
VOE14622910 | [4] | Gear | |
VOE14622911 | [4] | Bushing | |
VOE14596618 | [4] | Washer | |
VOE14676745 | [4] | Pin | |
VOE952004 | [4] | Spring pin | |
14 | VOE14637262 | [1] | Gear |
15 | VOE14596621 | [1] | Thrust washer |
16 | VOE14637263 | [1] | Planet carrier |
17 | VOE14680062 | [1] | Gear |
18 | VOE14633289 | [1] | Cover |
19 | VOE60110253 | [16] | Hex. socket screw |
20 | VOE14883865 | [2] | Plug |
21 | VOE14883861 | [1] | Plug |
22 | VOE914167 | [1] | Lubriing nipple |
23 | VOE14719169 | [2] | Elbow |
24 | VOE14529015 | [1] | Valve |
What is the function of swing motor on excavator?
Swing motors (sometimes called swing drives) provide the powerful
turning force of excavator booms using hydraulic oil pressure and
are finely engineered to ensure trouble-free operation and
performance.
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
![]() |
