    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EC240 Old Type
    Price : 1000.00-5000.00usd
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Hydraulic Motor Excavator Swing Motor Assy For EC240 Old Type VOV For Swing Device Assy


    PRODUCT DESCRIPTION

    Model: EC240 Old Type

    egory: Excavator Swing Hydraulic Motor

    Brand: TGFQ

    Part Number: VOE14550094 / 14500382

    Outer Packing: Wooden case

    Motor: M2X146

    Delivery Time: 1-3 days (after receive the payment)

    Means of Transport: By Sea, By Air or By Express

    Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.


    What motors are used in excavators?
    Hydraulic motors

    Hydraulic motors are commonly seen in earthmoving equipment like excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, bulldozers etc where hydraulic cylinders extend and retract as vital operational parts while the machine performs various

    How does excavator swing brake work?
    The swing brake is a multi-disc and plate assembly loed in the first stage planetary gear assembly. It is spring applied and hydraulically released. The brake is designed as a parking brake only and is not intended to be used as a cyclic service brake. The discs and plates are lubried by the release signal oil.

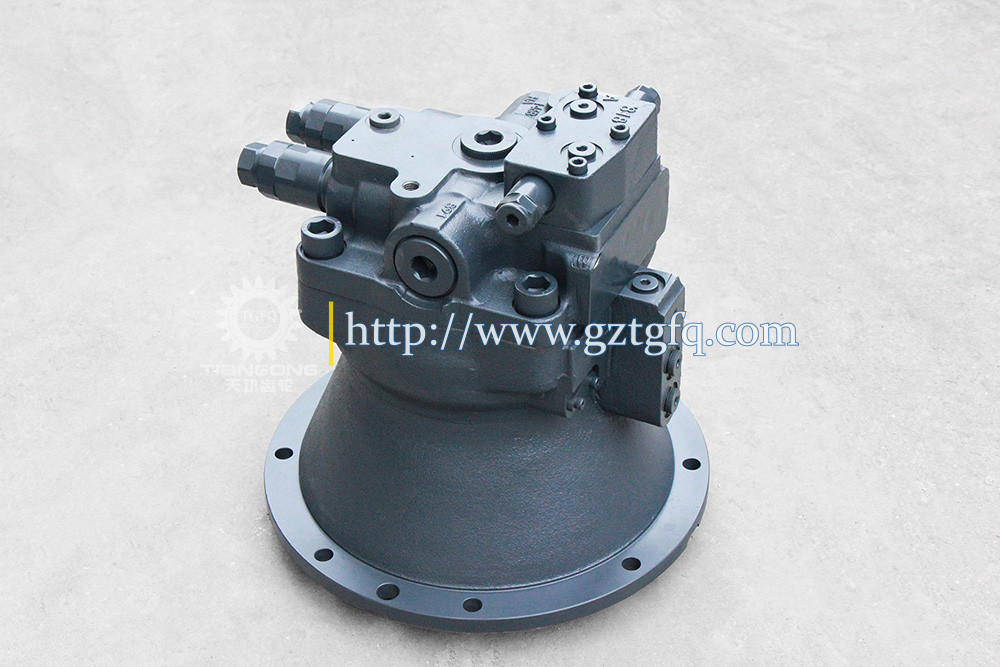

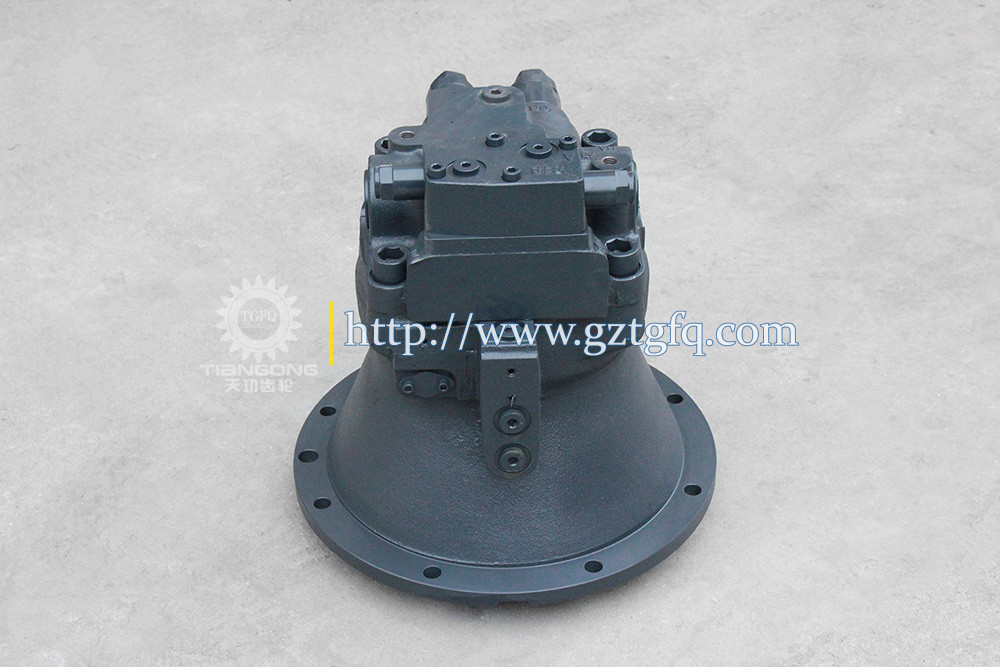

    EC240 Picture Of Swing Motor:

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device AssyHydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device AssyHydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device AssyHydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device AssyHydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    EC240 Drawing Of Swing Motor

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy


    Parts on group Swing motor:

    Pos.Part NoQtyParts Name
    VOE14550094[1]Swing motor
    1VOE14500062[1]Piston
    2VOE14509246[1]Casing
    3VOE14500066[1]Shaft
    4SA8230-13500[1]Spacer
    5SA8230-13680[1]Cylinder
    6SA8230-13700[1]Retainer
    7SA8230-13460[1]Spring
    8SA8230-26390[12]Bar
    9SA8230-13490[3]Spacer
    10SA8230-13630[1]Plate
    11SA8230-13710[1]Plate
    12SA8230-13750[1]Plate
    13SA8230-13580[1]Casing
    14SA8230-13540[1]Cover
    15VOE14501798[2]Plunger
    16VOE14501799[2]Spring
    17SA8230-25820[4]Bolt
    18SA8230-25760[1]Ring
    19SA8230-25740[1]Ring
    20SA8230-26530[1]Roller bearing
    21SA8230-26600[1]Roller bearing
    22SA8230-25640[2]Plug
    23VOE14501802[2]Plug
    24SA8230-25551[1]O-ring
    25VOE983502[2]O-ring
    26VOE983530[2]O-ring
    27VOE983503[2]O-ring
    28VOE14563078[1]Seal
    29SA8220-10730[1]Piston
    30VOE14552321[1]O-ring
    31SA8230-25560[1]O-ring
    32SA8230-14040[12]Spring brake
    33SA8230-13770[3]Friction plate
    34SA8230-13720[4]Separating plate
    35SA8230-13450[1]Slide
    36SA8230-13480[1]Spring
    37VOE14500067[1]Plunger
    38VOE14560637[3]Plug
    39VOE14518517[2]Relief valve
    VOE14518517[2]Relief valve
    40VOE990582[1]O-ring
    41VOE14880837[1]Back-up ring
    42SA8230-27360[1]Block
    43SA8230-29070[1]Casing
    44SA8230-25640[2]Plug
    45VOE983502[2]O-ring
    46VOE983503[2]O-ring
    47VOE983493[2]O-ring
    48SA8240-03610[4]Screw
    49VOE14684415[2]Valve
    50VOE983509[1]O-ring
    51VOE14625240[1]Ring
    52SA8230-13550[1]Cover
    53SA8230-25830[2]Hex. socket screw
    100VOE14556029[1]Seal

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    Hydraulic Excavator Swing Motor Assy For EC240 Old Type VOV Swing Device Assy

    FAQ:
    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
