    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : M5X180
    Price : 50.00-300.00usd
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 2000 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125


    VOE14577125 M5X180 Swing Motor Cover Excavator Replacement Parts


    PRODUCT DESCRIPTION
    Model: EC240 New M5X180
    egory: Swing Motor Parts
    Brand: TGFQ
    Place of Origin: China
    Outer Packing:wooden case
    Means of Transpor: By Sea, By Air or By Express

    Appliion: Crawler Excavator

    Condition: New form TGFQ
    Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.
    Hydraulic pump parts for Handok
    Head CoverServo PistonFeed Back Lever
    Valve PlateServo Piston PinPilot Pump/Gear Pump
    Cylinder BlockBall GuideLock Nut
    Shoe PlateSpacerCradle
    Piston ShoeCenter PinPin Of Link
    Swash PlateRetainerCase
    CradleThrust BearingSeparation Plate
    Drive ShaftCoil SpringFriction Plate
    Set PlateRegulatorSocket Bolt
    Fix PlateSpacer of Fix PlateCylinder Block+Valve Plate
    Hydraulic Pump seal kitDisk Spring HolderDisk Spring
    Ring of Piston ShoeBearing
    Product Display
    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125
    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125
    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125
    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

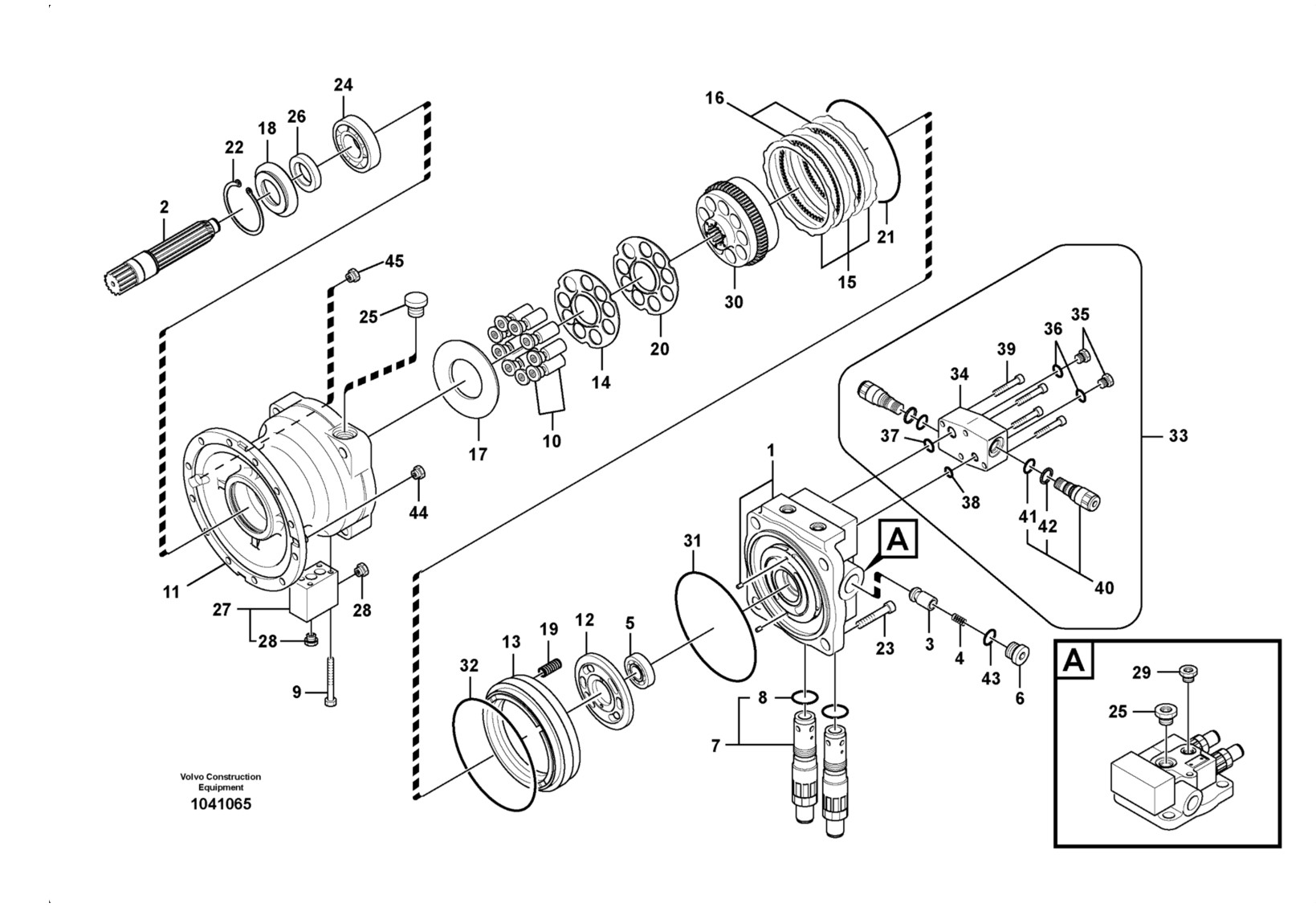

    Product Drawing

    441.610. Swing motor KOR S/N 110865--GER S/N 120449- 8287584M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

    Parts on group Swing motor:

    Pos.Part NoQtyParts nameComments
     VOE14577125[1]Swing motor
    1VOE14600787[1]Casing
    1SA8230-25950[2]Spring Pin
    2VOE14596320[1]Shaft
    3VOE14501798[2]Plunger
    4VOE14501799[2]Spring
    5VOE14600785[1]Roller bearing
    6VOE14501802[2]Plug
    7VOE14518516[2]Relief valve
    8VOE990582[1]O-ring
    9VOE14511643[3]Screw
    10VOE14596323[9]Piston
    11[1]Casing
    12VOE14596315[1]Plate
    13VOE14562617[1]Piston
    14VOE14596317[1]Plate
    15VOE14594770[3]Plate
    16VOE14596308[2]Plate
    17VOE14596316[1]Plate
    18VOE14596313[3]Cover
    19VOE14596309[20]Spring
    20VOE14596318[1]Spring
    21SA8230-25551[1]O-ring
    22VOE14596312[1]Ring
    23SA8230-25820[4]Bolt
    24VOE14596311[1]Roller bearing
    25SA14594354[3]Plug
    26VOE14562616[1]Seal
    27VOE14550664[1]Valve
    28VOE14594353[2]Plug
    29VOE14600784[1]Plug
    30VOE14596319[1]Cylinder
    31VOE14562615[1]O-ring
    32SA8230-33960[1]O-ring
    33VOE14550662[1]Valve
    34VOE14550661[1]Casing
    35VOE14550218[2]Plug
    36SA8230-26191[2]O-ring
    37VOE14529757[2]O-ring
    38VOE14533603[2]O-ring
    39SA8240-03610[4]Screw
    40VOE14684415[2]Valve
    41VOE983509[1]O-ring
    42VOE14625240[1]Ring
    43VOE983530[2]O-ring
    44VOE14600784[1]Plug
    45SA8240-03280[2]Plug
    100VOE14601385[1]Sealing kit

    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125


    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125


    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

    M5X180 High Pressure Hydraulic Motor Parts Swing Motor Cover VOE 14577125

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How can I pay the order?

    A.Through 100%T/T, Alibaba trade assurance.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
