R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

Ask Lasest Price
Brand Name :	TGFQ
Model Number :	R305-7
Price :	1000.00-5000.00usd
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	100 pcs / month
Delivery Time :	2-4days

Add to Cart

Product Details
Company Profile

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032 TGFQ

31N8-40055 31Q8-40061 31N9-40032 Hyundai R305-7 Final Device Travel Drive Motor Final Drive Assy TGFQ

PRODUCT DESCRIPTION
Model: R305-7		egory: Excavator Final Drive
Brand: TGFQ		Place of Origin: China
Part Number: 31N8-40055 / 31N8-40054 / 31N9-40032		Motor No.: DNB50
Material: Steel		Means of Transport: By Sea, By Air or By Express
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

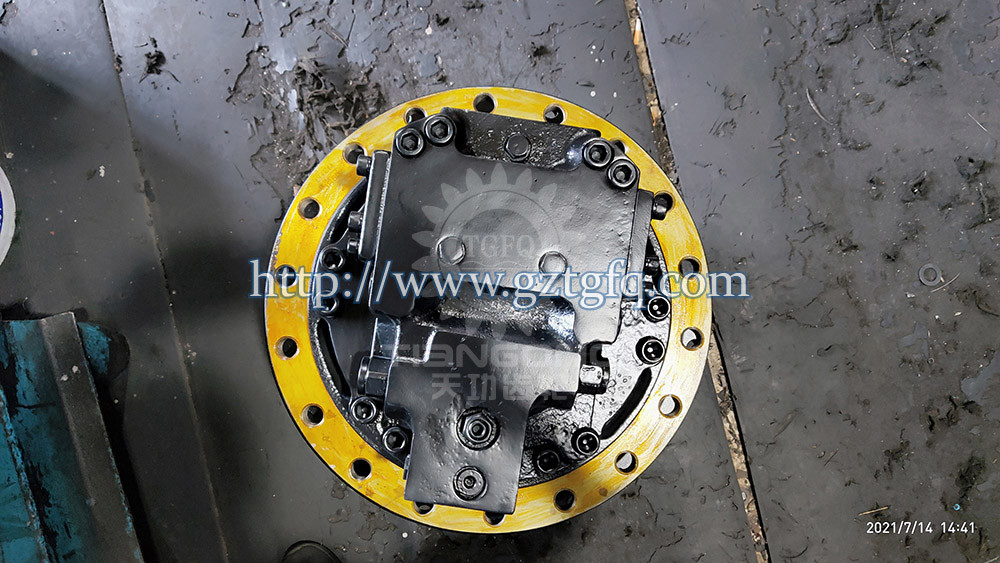

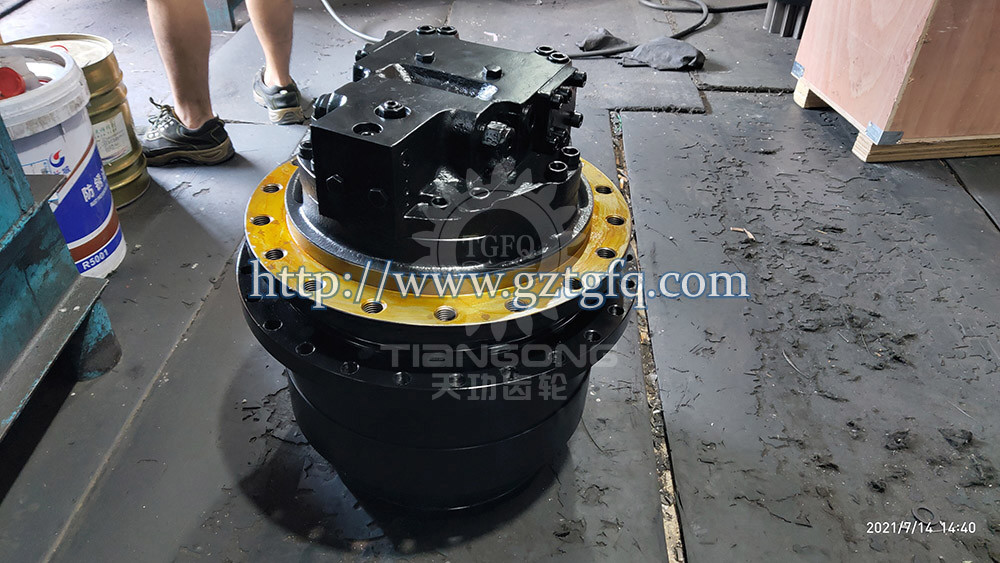

R305-7 Photo:

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

TRAVEL MOTOR(HIGH WALKER, #0373-)

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

Parts on group TRAVEL MOTOR(HIGH WALKER, #0373-):

Pos.	Part No	Qty	Parts name
*.	31N8-40050	[1]	TRACK MOTOR
*.	31N8-40051	[1]	TRACK MOTOR
*.	31N8-40051BG	[1]	TRACK MOTOR
*.	31N8-40053	[1]	TRACK MOTOR
*.	31N8-40054	[1]	TRACK MOTOR
*.	31N8-40055	[1]	TRAVEL UNIT
*-1.	31N8-40060	[1]	TRACK MOTOR UNIT
*-1.	31N8-40061	[1]	TRACK MOTOR UNIT
*-1.	31N8-40061BG	[1]	TRACK MOTOR UNIT
*-1.	31N8-40062	[1]	TRACK MOTOR UNIT
*-1.	31N8-40063	[1]	TRACK MOTOR UNIT
1	XKAY-00197	[1]	CASING-SHAFT
1	XKAY-00962	[1]	CASING-SHAFT
1	XKAY-02052	[1]	CASING-SHAFT
2	XKAY-00198	[12]	PLUG
3	XKAY-00199	[2]	SCREW-ORIFICE
4	XKAY-00200	[1]	SCREW-ORIFICE
4	XKAY-00199	[1]	SCREW-ORIFICE
5	XKAY-00201	[2]	PIN-SUPPORT
6	XKAY-00202	[4]	PIN-BRAKE
7	XKAY-00203	[1]	STOPPER(S)
8	XKAY-00204	[4]	O-RING
9	XKAY-00205	[3]	RING-BACK UP
10	XKAY-00206	[1]	PISTON-SWASH
11	XKAY-00207	[1]	SHAFT
12	XKAY-00208	[1]	SPACER-BEARING
13	XKAY-00209	[1]	BEARING-ROLLER
14	XKAY-00210	[1]	RING-STOP
*.	XKAY-00211	[1]	SUPPORT KIT
*.	XKAY-01070	[1]	SUPPORT KIT
N15.	XKAY-00212	[1]	SUPPORT
N16.	XKAY-00213	[1]	PLATE-SWASH
17	XKAY-00214	[1]	PISTON-SWASH
18	XKAY-00215	[1]	STOPPER(L)
19	XKAY-00216	[1]	O-RING
20	XKAY-00217	[2]	RING-BACK UP
*.	XKAY-00218	[1]	ROTARY KIT
*.	XKAY-01510	[1]	ROTARY KIT
*-1.	XKAY-00219	[1]	CYLINDER BLOCK KIT
*-1.	XKAY-01509	[1]	CYLINDER BLOCK KIT
N21.	XKAY-00220	[1]	BLOCK-CYLINDER
N21.	XKAY-01504	[1]	BLOCK-CYLINDER
22	XKAY-00221	[9]	SPRING-CYLINDER
23	XKAY-00222	[1]	SPACER
67	XKAY-00268	[1]	PLATE-VALVE
67	XKAY-01505	[1]	PLATE-VALVE
*-2.	XKAY-00223	[1]	RETAINER KIT
24	XKAY-00224	[1]	GUIDE-BALL
25	XKAY-00225	[1]	SET-PLATE
*-3.	XKAY-00226	[1]	PISTON KIT
N26.	XKAY-00227	[9]	PISTON & SHOE ASSY
27	XKAY-00228	[2]	PLATE-FRICTION
28	XKAY-00229	[1]	PLATE-SEPARATOR
29	XKAY-00230	[1]	RING-PISTON
29	XKAY-01071	[1]	BRAKE-PISTON
29	XKAY-00973	[1]	BRAKE-PISTON
30	XKAY-00231	[1]	RING-PISTON 252
31	XKAY-00232	[1]	RING-PISTON 278
32	XKAY-00233	[10]	SPRING-BRAKE
33	XKAY-00234	[1]	O-RING
33	XKAY-01072	[1]	CASING-VALVE
33	XKAY-01506	[1]	CASING-VALVE
34	XKAY-00235	[1]	BEARING-NEEDLE
35	XKAY-00236	[1]	O-RING
36	XKAY-00237	[2]	PIN-VALVE PLATE
*.	XKAY-00238	[1]	SPOOL KIT-C/BLC VALVE
37	XKAY-00239	[1]	SPOOL-C/BLC VALVE
38	XKAY-00240	[2]	SCREW-ORIFICE
39	XKAY-00241	[2]	DAMPING CHECK ASSY
40	XKAY-00242	[2]	SPRING-C/BLC VALVE
41	XKAY-00247	[2]	O-RING
42	XKAY-00244	[2]	PLUNGER-C/BLC VALVE
43	XKAY-00245	[2]	SPRING-CHECK
44	XKAY-00246	[2]	STOPPER-CHECK
45	XKAY-00247	[4]	O-RING
46	XKAY-00248	[4]	RING-BACK UP
47	XKAY-00249	[1]	CAP-C/BLC VALVE(R)
48	XKAY-00250	[1]	CAP-C/BLC VALVE(L)
49	XKAY-00136	[8]	BOLT-SOCKET
50	XKAY-00251	[4]	BOLT-SOCKET
51	XKAY-00252	[2]	SEAT
52	XKAY-00253	[2]	BALL-STEEL
53	XKAY-00254	[2]	STOPPER
54	XKAY-00255	[7]	PLUG-HP
55	XKAY-00256	[7]	O-RING
56	XKAY-00257	[2]	PLUG-HP
57	XKAY-00258	[2]	VALVE ASSY-RELIEF
57	XKAY-01073	[2]	VALVE ASSY-RELIEF
58	XKAY-00259	[2]	O-RING
59	XKAY-00260	[2]	RING-BACK UP
60	XKAY-00261	[1]	ROD-SWASH
61	XKAY-00262	[1]	O-RING
62	XKAY-00263	[1]	SCREW-LOCK
62	XKAY-01074	[1]	SCREW-LOCK
63	XKAY-00279	[2]	NUT-HEX
64	XKAY-00265	[1]	SPOOL-SWASH
65	XKAY-00266	[1]	PLUG
66	XKAY-00267	[1]	O-RING
68	XKAY-00269	[1]	SPRING-SWASH
69	XKAY-00270	[3]	O-RING
70	XKAY-00271	[8]	BOLT-WRENCH
71	XKAY-00272	[4]	BOLT-SOCKET
72	XKAY-00273	[1]	SCREW-LOCK
73	XKAY-00274	[1]	SEAL-OIL
74	XKAY-00275	[1]	RING-LOCK
75	XKAY-02051	[1]	NAME PLATE
76	XKAY-00277	[2]	RIVET
K.	XKAY-00278	[1]	SEAL KIT
*-2.	@	[1]	T/REDUCTION GEAR
N.	@	[1]	NOT SUPPLIED PARTS

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

R305-7 Hyundai Final Drive Device 31N8-40055 31Q8-40061 31N9-40032

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
