R275-9 R265-9 R245-7 Excavator Swing Drive Gearbox For Construction
Machinery
R250LC-7 R275-9 /R265-9 R245-7 Excavator Swing Gearbox For
Construction Machinery Online Support
Product Parameter:

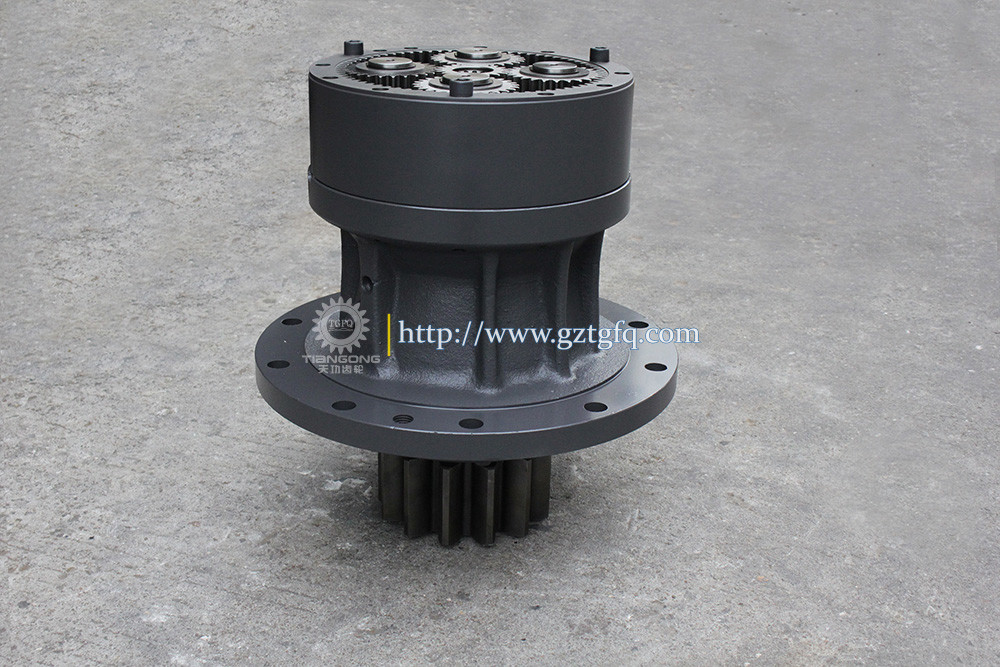

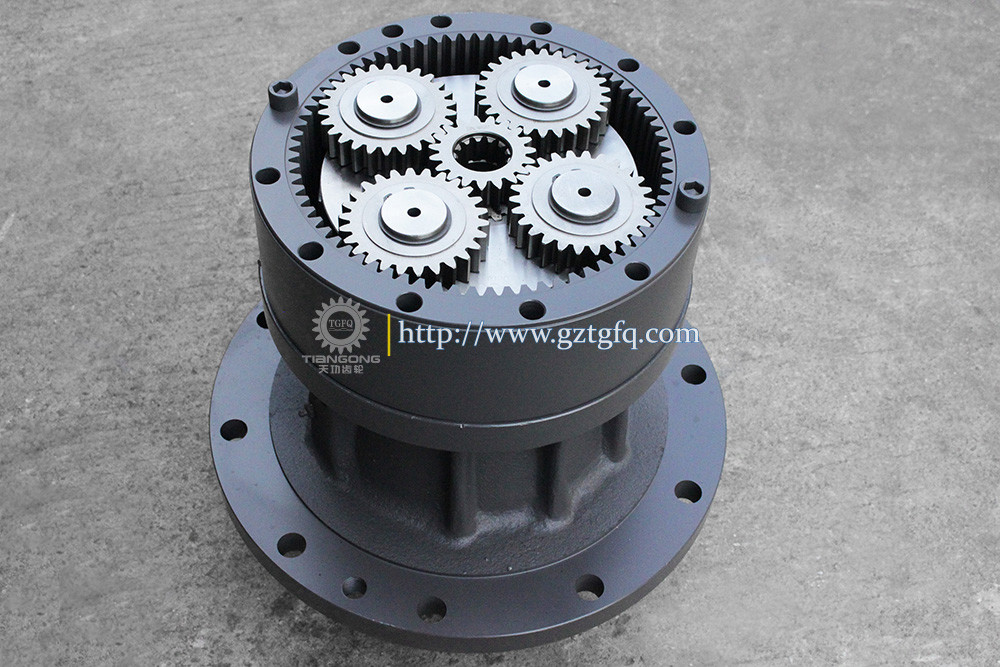

Product Name: Excavator Swing Gearbox
Place of Origin: China (Mainland)
Model: R250LC-7 R275-9 R265-9 R245-7
Part Number: 31EN-10070 / 31EN-10071
MOQ: 1 PCS
Stock: Yes
Delivery time: Within 1-3 working days after receiving the payment
Means of Transport: By Sea, By Air or By Express
R250LC-7 motor : M2X170
R275-9 motor : SG08
Parts on group SWING REDUCTION GEAR:
| Pos. | Part No | Qty | Parts name |
| *. | @ | [1] | SWING MOTOR ASSY |
| *-2. | 31EN-10070 | [1] | SWING REDUCTION GEAR |
| *-2. | 31EN-10071 | [1] | SWING REDUCTION GEAR |
| 1 | XKAQ-00632 | [1] | CASING |
| 1 | XKAQ-00633 | [1] | CASING |
| 2 | XKAQ-00115 | [1] | SHAFT |
| 3 | XKAQ-00116 | [1] | SPACER |
| 4 | XKAQ-00117 | [1] | BEARING-ROLLER |
| 5 | XKAQ-00118 | [1] | PLATE-COVER |
| 6 | XKAQ-00064 | [8] | BOLT-HEX |
| 7 | XKAQ-00119 | [1] | SEAL-OIL |
| 8 | XKAQ-00120 | [1] | BEARING-ROLLER |
| 9 | XKAQ-00121 | [1] | CARRIER 2 |
| 10 | XKAQ-00122 | [1] | GEAR-SUN 2 |
| 10 | XKAQ-00634 | [1] | GEAR-SUN 2 |
| 11 | XKAQ-00123 | [4] | GEAR-PLANET 2 |
| 12 | XKAQ-00124 | [4] | PIN 2 |
| N13. | XKAQ-00533 | [4] | BUSHING 2 |
| N34. | @ | [4] | PIN-SPRING |
| 14 | XKAQ-00050 | [4] | PIN-SPRING |
| 15 | XKAQ-00071 | [4] | WASHER-THRUST |
| 16 | XKAQ-00126 | [1] | CARRIER 1 |
| 17 | XKAQ-00127 | [1] | GEAR-SUN 1 |
| 18 | XKAQ-00128 | [4] | GEAR-PLANET 1 |
| 19 | XKAQ-00019 | [4] | PIN 1 |
| 20 | XKAQ-00030 | [4] | CAGE-NEEDLE |
| 21 | XKAQ-00129 | [4] | NEEDLE CAGE |
| 22 | XKAQ-00635 | [1] | GEAR-RING |
| 23 | XKAQ-00072 | [4] | PIN-KNOCK |
| 24 | XKAQ-00131 | [12] | BOLT-SOCKET |
| 25 | XKAQ-00132 | [1] | GEAR-PINION |
| 26 | XKAQ-00296 | [1] | PLATE-LOCK |
| 27 | XKAQ-00292 | [1] | WASHER-LOCK |
| 28 | XKAQ-00042 | [2] | BOLT-HEX |
| 29 | XKAQ-00066 | [2] | PLUG |
| 30 | XKAQ-00049 | [1] | PLUG |
| 31 | XKAQ-00040 | [4] | PLATE-SIDE 2 |
| 32 | XKAQ-00041 | [4] | RING-STOP |
| 33 | XKAQ-00048 | [4] | PIN-SPRING |
| 34 | XKAQ-00133 | [1] | PIN-SPRING |
| 35 | XKAQ-00166 | [1] | BAR-GAUGE |
| 35 | XKAQ-00034 | [1] | BAR-GAUGE |
| 36 | XKAQ-00167 | [1] | PIPE-GAUGE |
| 36 | XKAQ-00035 | [1] | PIPE-GAUGE |
| 37 | XKAQ-00143 | [1] | POST-AIR BREATHER |
| 37-1. | @ | [1] | POST |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER |
| *-1. | @ | [1] | SWING MOTOR UNIT |
| N. | @ | [1] | NOT SUPPLIED PARTS |
1,Customers offer the part number, part name, model, quantity, data
of items, delivery term.
2,We quote the best price according to the requirement of
customers.
3,Confirm the purchase order and pay the deposit.
4,We prepare and pack the goods.
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: If I only know the excavator model, but can not offer parts No.,
what should I do ?
A: If possible, you can send us pictures of old products, nameplate
or the size for reference.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: Do you have a factory?
A: Yes, we have our own factory and have 20 years of production
experience in the excavated gear industry.
