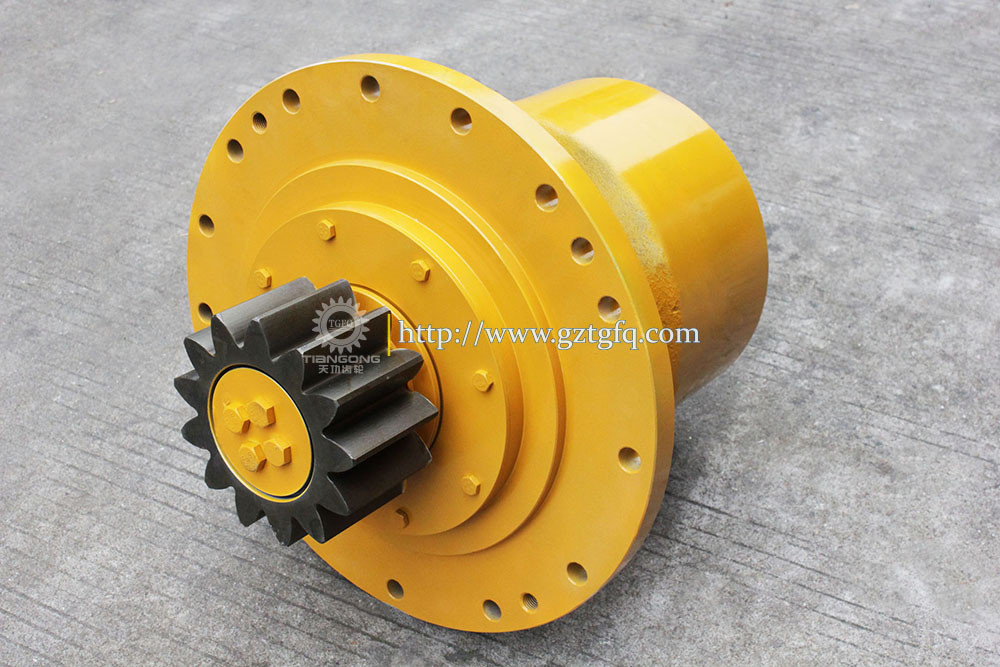

Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051 from wholesalers

    Buy cheap Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051 from wholesalers
    • Buy cheap Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051 from wholesalers
    • Buy cheap Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051 from wholesalers
    • Buy cheap Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051 from wholesalers

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : R290LC-7 R300-5 R305-7 / R335-7 Old type
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051


    Factory Direct Sale 31E9-01051 Swing Gearbox For Excavator R290LC-7 R300-5 R305-7


    Product Parameter:

    Product Name: Excavator Swing Gearbox

    Place of Origin: China (Mainland)

    Model: R290LC-7 R300-5 R305-7 / R335-7 Old type

    Part Number: 31E9-01051 / 31E9-01052

    (R305-7:31N9-10150 / 31N9-00151)/( R320-7:31N9-10152 / 31N9-10151 )

    MOQ: 1 PCS

    Payment term: L/C, T/T, D/P, D/A

    Delivery time: Within 1-3 days after receiving the payment

    Means of Transport: By Sea, By Air or By Express

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    swing motor : M2X170


    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Parts on group SWING REDUCTION GEAR(-#2205):

    Pos.Part NoQtyParts name
    *.@[1]SWING MOTOR ASSY
    N*-2.31E9-01050[1]SWING REDUCTION GEAR
    N*-2.31E9-01051[1]SWING REDUCTION GEAR
    N*-2.31E9-01052[1]SWING REDUCTION GEAR
    N1.XKAQ-00063[1]CASING-FRONT
    1XKAQ-00112[1]CASING-FRONT
    1XKAQ-00141[1]CASING-FRONT
    1XKAQ-00279[1]CASING-FRONT
    1XKAQ-00329[1]CASING-FRONT
    2XKAQ-00003[1]CASING-MIDDLE
    3XKAQ-00004[1]SHAFT-DRIVE
    3XKAQ-00328[1]SHAFT-DRIVE
    4XKAQ-00006[1]GEAR-RING 2
    5XKAQ-00022[3]GEAR-PLANET 2
    6XKAQ-00062[1]GEAR-2 SUN
    6XKAQ-00012[1]GEAR-2 SUN
    7XKAQ-00008[1]GEAR-RING 1
    8XKAQ-00024[3]GEAR-PLANET 1
    8XKAQ-00137[3]GEAR-PLANET 1
    9XKAQ-00009[1]GEAR-1 SUN
    9XKAQ-00061[1]GEAR-1 SUN
    10XKAQ-00016[1]CARRIER
    *-1.XKAQ-00021[3]PIN ASSY NO.2
    N11.XKAQ-00060[3]PIN ASSY-2
    N32.XKAQ-00046[3]BUSHING 2
    12XKAQ-00059[6]WASHER-THRUST
    13XKAQ-00058[1]BUTTON-THRUST
    14XKAQ-00019[3]PIN 1
    14XKAQ-00136[3]PIN ASSY 1
    15XKAQ-00057[3]PLATE-SIDE 1
    16XKAQ-00056[4]MAGNET
    17XKAQ-00055[1]PLATE-SIDE 3
    18XKAQ-00054[1]BAR-GAUGE
    18XKAQ-00034[1]BAR-GAUGE
    19XKAQ-00035[1]PIPE-GAUGE
    20XKAQ-00017[1]RING-SPACER
    20XKAQ-00111[1]RING-SPACER
    21XKAQ-00053[4]PIN-KNOCK
    21XKAQ-00053[2]PIN-KNOCK
    22XKAQ-00028[1]BEARING-ROLLER
    23XKAQ-00027[1]BEARING-ROLLER
    24XKAQ-00030[3]CAGE-NEEDLE
    25XKAQ-00052[16]BOLT-SOCKET
    26XKAQ-00051[12]BOLT-SOCKET
    27XKAQ-00033[1]SEAL-OIL
    27XKAQ-00138[1]SEAL-OIL
    27XKAQ-00280[1]SEAL-OIL
    27XKAQ-00330[1]SEAL-OIL
    28XKAQ-00050[3]PIN-SPRING
    29XKAQ-00049[1]PLUG
    30XKAQ-00048[3]PIN-SPRING
    31XKAQ-00047[1]RING-STOP
    33XKAQ-00045[1]RING-STOP
    34XKAQ-00044[2]WASHER-LOCK
    34XKAQ-00292[1]WASHER-LOCK
    35XKAQ-00013[1]GEAR-PINION
    36XKAQ-00043[1]PLATE-LOCK
    36XKAQ-00296[1]PLATE-LOCK
    37XKAQ-00042[4]BOLT-HEX
    37XKAQ-00042[2]BOLT-HEX
    38XKAQ-00041[3]RING-STOP
    39XKAQ-00040[3]PLATE-SIDE 2
    40XKAQ-00109[1]CIRCLIP
    41XKAQ-00110[1]V-SEAL
    42XKAQ-00143[1]POST-AIR BREATHER
    N.@[1]NOT SUPPLIED PARTS

    1,Customers offer the part number, part name, model, quantity, data of items, delivery term.
    2,We quote the best price according to the requirement of customers.
    3,Confirm the purchase order and pay the deposit.
    4,We prepare and pack the goods.

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    Hyundai Excavator Swing Gearbox R290LC-7 R300-5 R305-7 31E9-01051

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How long is the warranty period?
    A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
