30tons Excavator Swing Reducer Gearbox Hyundai R375-7 R385-9 R380-9 R360-7
TGFQ R375-7 R385-9 R380-9 R360-7 Swing Reducer Slewing Gearbox For 30tons Excavator
Product Parameter:
Product Name: Excavator Swing Gearbox
Place of Origin: China (Mainland)
Model: R375-7 R385-9 R380-9 R360-7
Part Number: 31NA-10150 / 31QA-10141 / 31QA-10140
R375-7/R360-7 : 31NA-10151
R380-9/R360-9 : XKAH-01449
Motor No.: SG20E-104B
MOQ: 1 PCS
Weight: 320KG
Package Size: 63*63*76CM
Means of Transport: By Sea, By Air or By Express

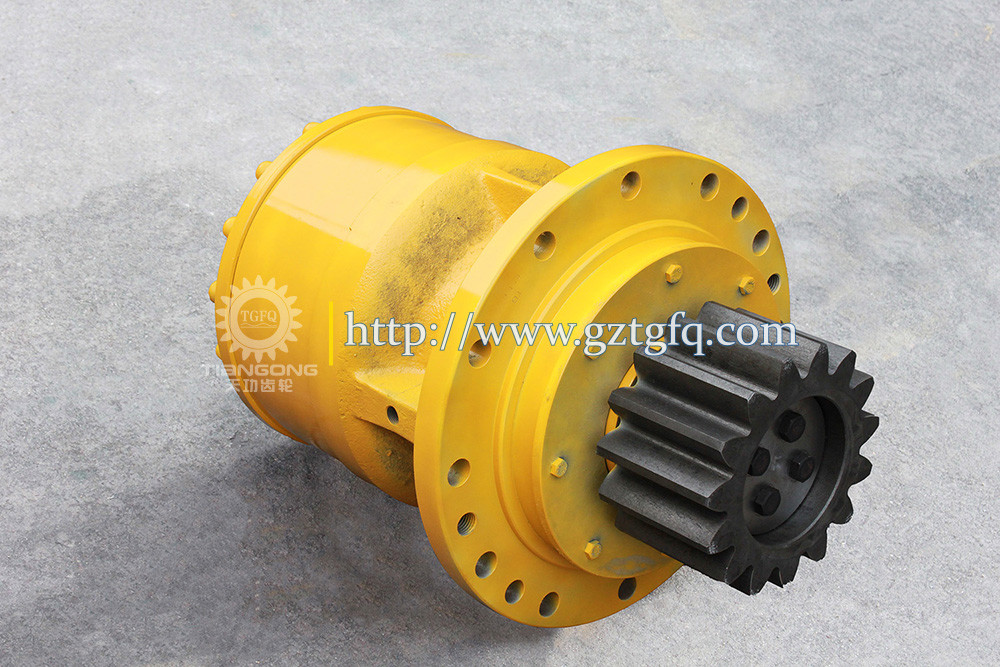

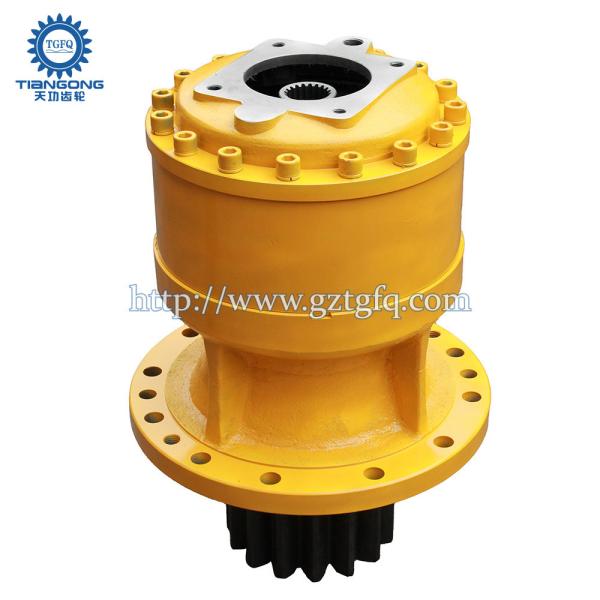

R375-7 Swing Reducer Gearbox Photo:
Hyundai HCE parts alog |
R360LC-7 |
SWING REDUCTION GEAR(#0063-) » SWING REDUCTION GEAR 31NA-10150 |
R360LC-7A |
SWING REDUCTION GEAR » SWING REDUCTION GEAR 31NA-10150 |
R370LC-7 |
SWING REDUCTION GEAR(SB360) » SWING REDUCTION GEAR 31NA-10150 |
Pos. | Part No | Qty | Parts name |
*-2. | 31NA-10150 | [1] | SWING REDUCTION GEAR |
1 | XKAQ-00144 | [1] | CASING |
2 | XKAQ-00145 | [1] | SHAFT-DRIVE |
2 | XKAQ-00300 | [1] | SHAFT-DRIVE |
3 | XKAQ-00146 | [1] | BEARING-ROLLER |
4 | XKAQ-00147 | [1] | PLATE-COVER |
5 | XKAQ-00148 | [8] | BOLT-HEX |
6 | XKAQ-00149 | [1] | SEAL-OIL |
7 | XKAQ-00027 | [1] | BEARING-ROLLER |
*. | XKAQ-00263 | [1] | CARRIER ASSY-NO 2 |
*. | XKAQ-00264 | [1] | CARRIER ASSY-NO 2 |
8 | XKAQ-00150 | [1] | CARRIER 2 |
8 | XKAQ-00251 | [1] | CARRIER 2 |
10 | XKAQ-00152 | [4] | GEAR-PLANET 2 |
10 | XKAQ-00253 | [4] | GEAR-PLANET 2 |
11 | XKAQ-00153 | [4] | PIN ASSY 2 |
11 | XKAQ-00254 | [4] | PIN 2 |
N12. | @ | [4] | BUSHING |
N12. | @ | [4] | BUSHING |
N33. | @ | [4] | PIN-SPRING |
13 | XKAQ-00050 | [4] | PIN-SPRING |
14 | XKAQ-00156 | [4] | WASHER-THRUST |
*. | XKAQ-00261 | [1] | CARRIER ASSY-NO 1 |
*. | XKAQ-00262 | [1] | CARRIER ASSY-NO 1 |
15 | XKAQ-00157 | [1] | CARRIER 1 |
15 | XKAQ-00325 | [1] | CARRIER 1 |
16 | XKAQ-00158 | [1] | GEAR-SUN 1 |
16 | XKAQ-00257 | [1] | GEAR-SUN 1 |
17 | XKAQ-00774 | [4] | GEAR-PLANET 1 |
18 | XKAQ-00019 | [4] | PIN 1 |
19 | XKAQ-00030 | [4] | CAGE-NEEDLE |
20 | XKAQ-00040 | [4] | PLATE-SIDE 2 |
21 | XKAQ-00048 | [4] | PIN-SPRING |
22 | XKAQ-00160 | [1] | GEAR-RING |
22 | XKAQ-00258 | [1] | GEAR-RING |
23 | XKAQ-00072 | [4] | PIN-KNOCK |
24 | XKAQ-00161 | [16] | BOLT-SOCKET |
24 | XKAQ-00259 | [16] | BOLT-SOCKET |
25 | XKAQ-00162 | [1] | SPACER |
26 | XKAQ-00163 | [1] | GEAR-PINION |
27 | XKAQ-00164 | [1] | PLATE-LOCK |
27 | XKAQ-00299 | [1] | PLATE-LOCK |
28 | XKAQ-00042 | [2] | BOLT-HEX |
28 | XKAQ-00042 | [4] | BOLT-HEX |
29 | XKAQ-00041 | [1] | RING-STOP |
30 | XKAQ-00273 | [1] | PLUG |
31 | XKAQ-00274 | [2] | PLUG |
32 | XKAQ-00057 | [4] | PLATE-SIDE 1 |
34 | XKAQ-00166 | [1] | BAR-GAUGE |
35 | XKAQ-00167 | [1] | PIPE-GAUGE |
36 | XKAQ-00168 | [1] | WASHER-LOCK |
36 | XKAQ-00292 | [2] | WASHER-LOCK |
37 | XKAQ-00169 | [1] | COVER |
38 | XKAQ-00170 | [4] | BOLT-SOCKET |
39 | XKAQ-00155 | [1] | PLUG-SOCKET |
40 | XKAQ-00171 | [1] | RING-SPACER |
41 | XKAQ-00076 | [1] | PLATE-THRUST |
41 | XKAQ-00260 | [1] | RING-THRUST |
42 | XKAQ-00143 | [1] | POST-AIR BREATHER |
43 | XKAQ-00151 | [1] | GEAR-SUN 2 |
43 | XKAQ-00252 | [1] | GEAR-SUN 2 |
N. | @ | [1] | NOT SUPPLIED PARTS |
1,Customers offer the part number, part name, model, quantity, data of items, delivery term.
2,We quote the best price according to the requirement of
customers.
3,Confirm the purchase order and pay the deposit.
4,We prepare and pack the goods.
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q:Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
![]() |
