SK460-8 Kobelco Excavator Final Drive Assy TGFQ LS15V00022F4
LS15V00022F4 SK460-8 Travel motor Apply For Kobelco Excavator Final
Drive Assy
|
Model: SK460-8 | egory: Excavator Final Drive |
Brand: TGFQ | Place of Origin: China |
Part No.:GM85VA | Payment Term: L/C, T/T, D/P, D/A |
Package Size: 74*74*80 CM | Means of Transport: By Sea, By Air or By Express |
Guarantee: We will check the starter motor and send detail pictures to buyer
to confirm before shipping.
|

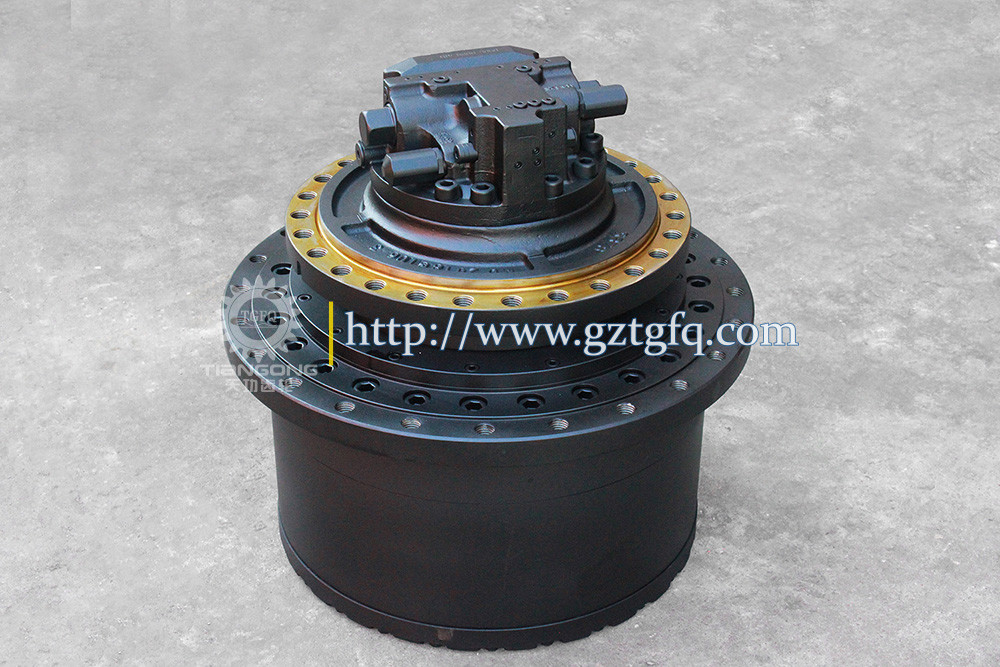

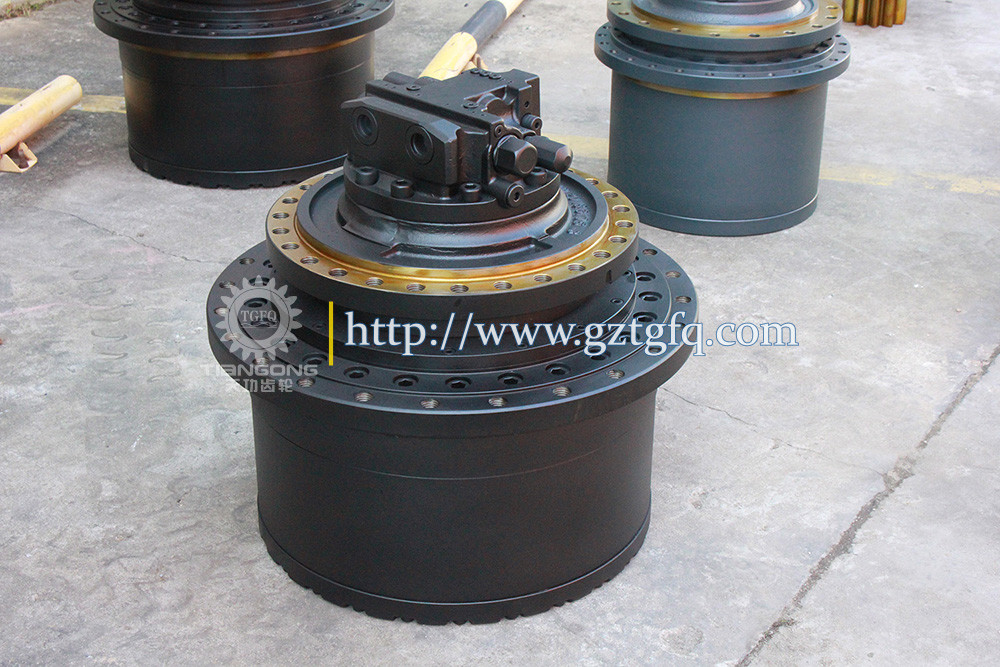

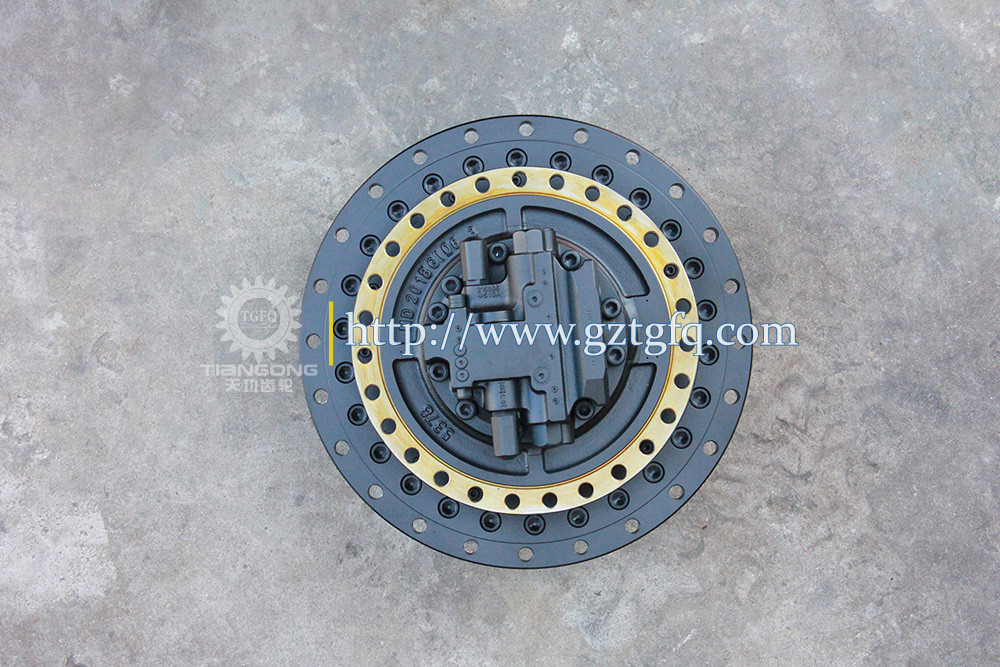

SK460-8 Final Device Assy Photo:
(35.353.03[01]) - HYDRAULIC MOTOR, ASSY Kobelco:
Parts on group (SK485LC-9) - ACERA MARK 9 EXCAVATOR, ASN YS12U0802
(11/11-12/13):
| Pos. | Part No | Qty | Parts Name | Comments |
| .. | LS15V00022F4 | [1] | HYDRAULIC MOTOR | KOB Assembly, Incl 1 - 43 |
| 1 | NSS | [1] | NOT SOLD SEPARAT | CON Body |
| 2 | NSS | [2] | NOT SOLD SEPARAT | CON Plug |
| 3 | NSS | [1] | NOT SOLD SEPARAT | CON Oil ring |
| 4 | 2441U1040S19 | [1] | COVER | KOB Ring, Retaining |
| 5 | LC15V00023S035 | [1] | BALL | KOB |
| 6 | LS15V00022S008 | [1] | SHAFT | KOB |
| 7 | LS15V00022S009 | [1] | BEARING | KOB |
| 8 | LC15V00023S040 | [1] | BLOCK | KOB |
| 9 | 2441U1030S29 | [9] | SPRING | KOB |
| 10 | LC15V00023S042 | [1] | HOLDER | KOB Holder |
| 11 | LC15V00021S024 | [1] | BALL JOINT | KOB |
| 12 | LC15V00021S004 | [1] | RETAINER | KOB |
| 13 | 2441U1040S7 | [5] | PLATE | KOB |
| 14 | 2441U1040S5 | [4] | PLATE | KOB |
| 15 | 2441U1040S6 | [1] | PISTON | KOB Piston |
| 16 | LS15V00004S052 | [1] | O-RING | KOB |
| 17 | LS15V00004S053 | [1] | O-RING | KOB |
| 18 | LS15V00022S023 | [1] | COVER | KOB |
| 19 | 2436U1427S25 | [14] | PLUG | KOB |
| 20 | 2436U1317S13 | [2] | PLUG | KOB |
| 21 | ZD12P01100 | [2] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 22 | YN15V00017S038 | [5] | PLUG | KOB |
| 23 | ZD12P00800 | [5] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 24 | YN15V00017S017 | [3] | CHECK VALVE | KOB |
| 25 | YN15V00017S026 | [3] | SPRING | KOB |
| 26 | YN15V00037S376 | [2] | ORIFICE | SM Superseded by part number: GN15V00010S024 |
| 27 | ZD12P01250 | [1] | O-RING | KOB ID 12.3mm X OD 14.7mm |
| 28 | GN15V00010S025 | [1] | RESTRICTOR | KOB Orifice |
| 29 | ZD12P01500 | [1] | O-RING | KOB |
| 30 | 2441U1040S40 | [1] | O-RING | KOB |
| 31 | 2441U1040S32 | [1] | ROLLER BEARING | KOB |
| 32 | LS15V00014S033 | [2] | SHIM | KOB Superseded by part number: 2441U1040S34 |
| 33 | 2441U1040S35 | [1] | PIN | KOB |
| 34 | LS15V00014S008 | [1] | PLATE | KOB |
| 35 | YN15V00003S030 | [14] | SPRING | KOB |
| 36 | ZS23C18050 | [10] | SCREW,Hex Socket Head, M18 x 50mm | KOB Cap |
| 37 | 2441U1040S10 | [1] | COUPLING JOINT | KOB |
| 38 | ZR26X04000 | [1] | RING | KOB Snap |
| 39 | NSS | [2] | NOT SOLD SEPARAT | CON Spool |
| 40 | NSS | [1] | NOT SOLD SEPARAT | CON Plate |
| 41 | NSS | [1] | NOT SOLD SEPARAT | CON Piston |
| 42 | NSS | [1] | NOT SOLD SEPARAT | CON Piston Seal |
| 43 | NSS | [9] | NOT SOLD SEPARAT | CON Piston Assembly |
| . . | LC15V00007R100 | [1] | REPAIR KIT | KOB Incl 13(5), 14(4) |
| . . | LC15V00021R300 | [1] | SHIM | KOB Incl 32(6) Superseded by part number: 2441U1040S34 |
| . . | LS15V00022R800 | [1] | REPAIR KIT | KOB Incl 2436R874S5(2), Body LS53D00007F2(1) |
| . . | LS15V00022R700 | [1] | REPAIR KIT | KOB Incl 43(9) Superseded by part number: LS15V00014R100 |
| . . | LC15V00023R100 | [1] | KIT | SM Incl 41(1), 42(1) |
| . . | LC15V00023R200 | [1] | KIT | SM Incl 39(2), 40(1) |
