R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140 from wholesalers

    Buy cheap R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140 from wholesalers
    • Buy cheap R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140 from wholesalers
    • Buy cheap R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140 from wholesalers
    • Buy cheap R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140 from wholesalers

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : R110-9 R150-9 R140-9
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 100 pcs / month
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

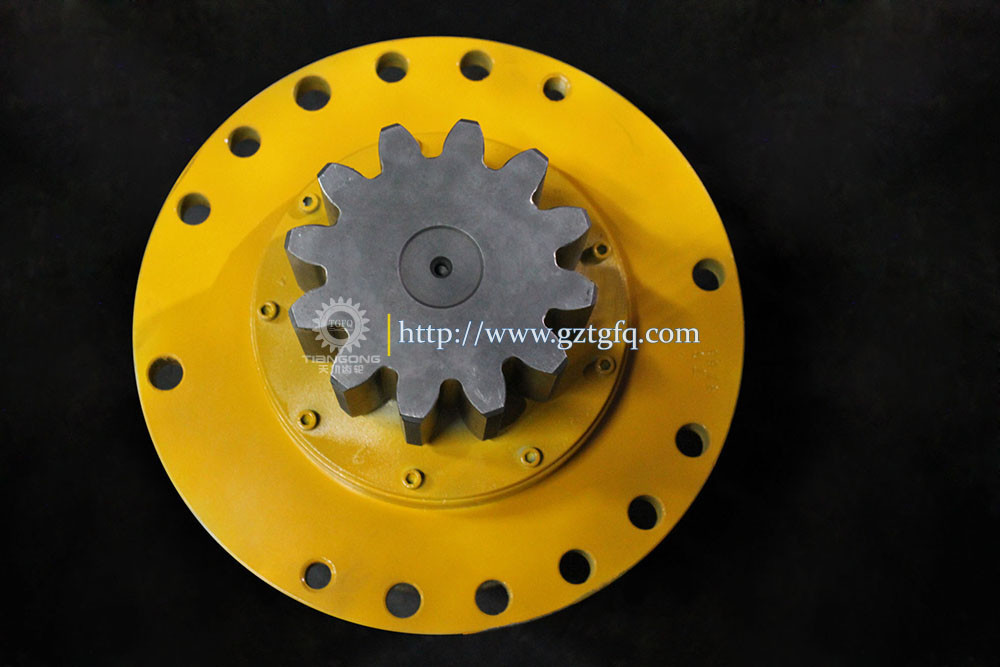

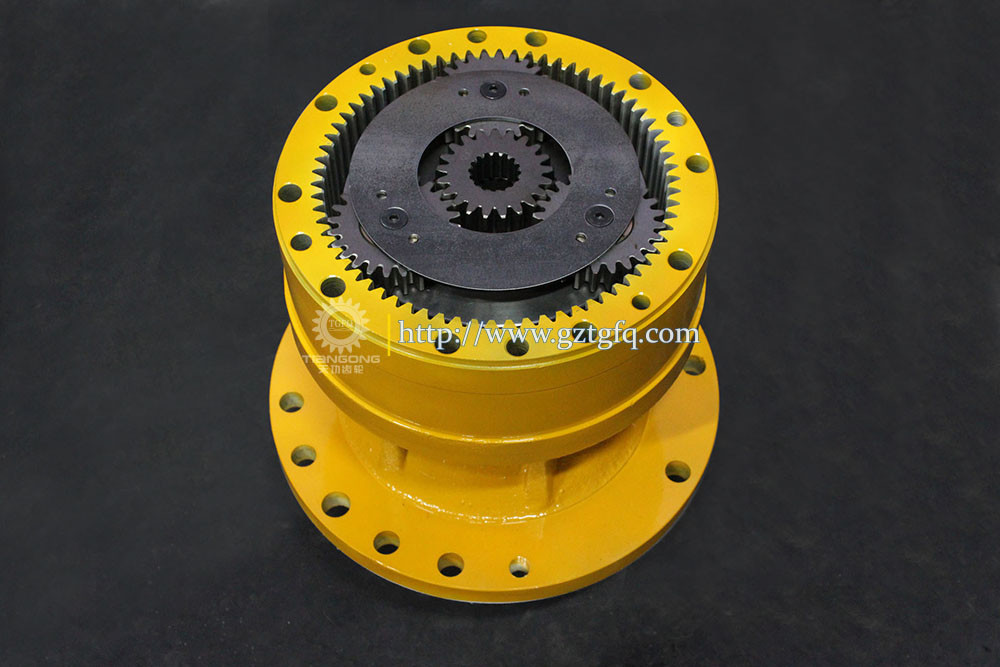

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140


    TGFQ Hyundai R110-9 R150-9 Excavator swing Gearbox Parts 31Q4-11140


    Product Parameter:

    Product Name: Excavator Swing Gearbox

    Place of Origin: China (Mainland)

    Model: R110-9 R150-9 R140-9

    Part Number: 31Q4-11140 / 31Q4-11141 / 31Q4-11142

    Size: 12/24T, 277MM

    MOQ: 1 PCS

    Payment term: L/C, T/T, D/P, D/A

    Delivery time: Within 1-3 days after receiving the payment

    Means of Transport: By Sea, By Air or By Express


    Compatible models:


    9-SERIES CRAWLER EXCAVATOR R140LC9 R145CR9
    9-SERIES WHEEL EXCAVATOR R140W9 Hyundai

    Hyundai HCE parts alog

    R140LC-9
    SWING REDUCTION GEAR(TYPE 1) » SWING REDUCTION GEAR 31Q4-11140

    R140W-9
    SWING REDUCTION GEAR (TYPE 1) » SWING REDUCTION GEAR 31Q4-11140

    R145CR-9
    SWING REDUCTION GEAR(TYPE 1) » SWING REDUCTION GEAR 31Q4-11140

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    Parts on group SWING REDUCTION GEAR(TYPE 1):

    Pos.Part NoQtyParts name
    N*.@[1]SWING MOTOR ASSY
    *-2.31Q4-11140[1]SWING REDUCTION GEAR
    *-2.31Q4-11141[1]SWING REDUCTION GEAR
    *-2.31Q4-11142[1]SWING REDUCTION GEAR
    *-2.31Q4-11142AR[1]SWING REDUCTION GEAR
    1XKAQ-00511[1]CASING
    2XKAQ-00512[1]SHAFT-DRIVE
    3XKAQ-00513[1]PLATE-COVER
    4XKAQ-00514[1]SPACER
    5XKAQ-00515[1]BEARING-SPH ROLLER
    6XKAQ-00089[1]BEARING-CYL ROLLER
    7XKAQ-00087[1]SEAL-OIL
    8XKAQ-00809[1]CARRIER ASSY 2
    9XKAQ-00516[1]CARRIER 2
    10XKAQ-00517[4]GEAR-PLANET 2
    10XKAQ-00810[4]GEAR-PLANET 2
    11XKAQ-00518[4]PIN ASSY 2
    11XKAQ-00811[4]PIN ASSY 2
    N12.XKAQ-00812[1]PIN 2
    N13.XKAQ-00813[1]BUSHING 2
    21XKAQ-00093[4]WASHER-THRUST(B)
    22XKAQ-00086[4]PIN-SPRING
    14XKAQ-00519[1]GEAR-SUN 2
    15XKAQ-00814[1]CARRIER ASSY 1
    16XKAQ-00520[1]CARRIER 1
    17XKAQ-00521[3]GEAR-PLANET 1
    17XKAQ-00815[3]GEAR-PLANET 1
    18XKAQ-00522[3]PIN ASSY 1
    18XKAQ-00816[3]PIN ASSY 1
    N19.XKAQ-00817[1]PIN 1
    N20.XKAQ-00818[1]BUSHING 1
    21XKAQ-00093[3]WASHER-THRUST(B)
    22XKAQ-00086[3]PIN-SPRING
    23XKAQ-00085[3]RING-STOP
    24XKAQ-00523[1]GEAR-SUN 1
    25XKAQ-00084[1]RING-STOP
    26XKAQ-00524[1]PLATE-SIDE 1
    27XKAQ-00525[1]GEAR-RING
    27XKAQ-00782[1]GEAR-RING
    28XKAQ-00091[4]PIN-KNOCK
    29XKAQ-00526[9]BOLT-HEX
    30XKAQ-00527[10]BOLT-SOCKET
    31XKAQ-00049[1]PLUG
    32XKAQ-00066[2]PLUG
    *-1.@[1]SWING MOTOR UNIT
    N.@[AR]NOT SUPPLIED PARTS

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140


    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140


    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    R110-9 R150-9 R140-9 Excavator Hyundai Swing Gear Box 31Q4-11140

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: do you have a factory?
    A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
