Construction Machinery Parts Excavator Gear E330C E330D E336D
Factory Price Construction Machinery Parts E330C E330D E336D
Excavator Carrier Assy
Product Parameter:
Product Name: Excavator Swing Gear
Place of Origin: Guangdong China
Model: E330C E330D E336D
Part number: 1st --- 191-2511 ; 2nd --- 418-6218
Means of Transport: By Sea, By Air or By Express

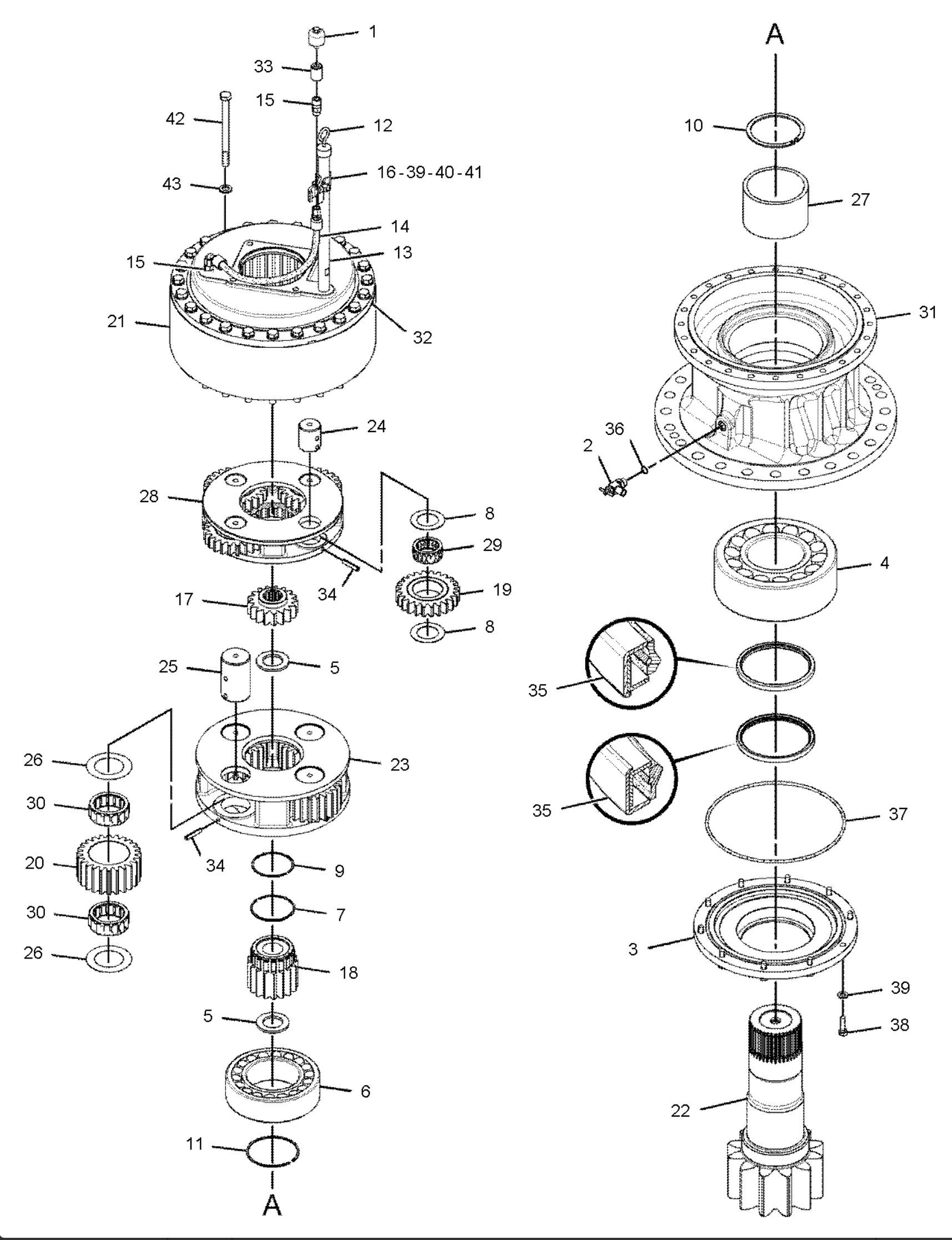

Swing Gears Drawing:
Parts for your 330C MOBILE HYD POWER UNIT:
| Pos. | Part No | Qty | Parts name |
| 1 | 4H-6112 | [1] | BREATHER (SWING DRIVE) |
| 2 | 6V-7238 | [1] | VALVE-SHUTOFF (SWING DRIVE) |
| 3 | 7I-7611 | [1] | CAGE |
| 4 | 7I-7619 | [1] | BEARING-ROLLER |
| 5 | 7I-7684 M | [2] | SPACER (50X79.6X6-MM THK) |
| 6 | 9U-8693 | [1] | BEARING-ROLLER |
| 7 | 093-1730 | [1] | RING-RETAINING |
| 8 | 094-1528 | [8] | WASHER (53X84X1-MM THK) |
| 9 | 096-1441 | [1] | RING-RETAINING |
| 10 | 110-7149 | [1] | RING-RETAINING |
| 11 | 114-1322 | [1] | RING-RETAINING |
| 12 | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) |
| 13 | 114-1399 | [1] | PIPE-GAUGE |
| 14 | 127-3872 I | [1] | HOSE AS |
| 15 | 136-2802 | [2] | CONNECTOR |
| 16 | 136-2803 | [2] | CLIP |
| 17 | 148-4600 | [1] | GEAR-SUN (17-TEETH) |
| 18 | 148-4601 | [1] | GEAR-SUN (17-TEETH) |
| 19 | 148-4602 | [4] | GEAR-PLANETARY (24-TEETH) |
| 20 | 148-4603 | [4] | GEAR-PLANETARY (24-TEETH) |
| 21 | 148-4604 | [1] | GEAR-RING (67-TEETH) |
| 22 | 148-4605 | [1] | SHAFT-PINION |
| 23 | 418-6218 | [1] | CARRIER-PLANETARY |
| 24 | 148-4608 | [4] | SHAFT-PLANETARY |
| 25 | 148-4609 | [4] | SHAFT-PLANETARY |
| 26 | 148-4611 | [8] | WASHER (71.3X112X1-MM THK) |
| 27 | 171-9413 | [1] | SPACER (140.5X160X103.2-MM THK) |
| 28 | 191-2511 | [1] | CARRIER-PLANETARY |
| 29 | 191-2513 | [4] | BEARING AS-ROLLER |
| 30 | 191-2514 | [8] | BEARING AS |
| 31 | 191-2524 | [1] | HOUSING |
| 32 | 199-4540 | [1] | COVER-HOUSING |
| 33 | 227-6215 | [1] | BOSS (1/4-18-THD) |
| 34 | 099-5194 | [8] | PIN-SPRING |
| 35 | 128-9170 | [2] | SEAL-LIP TYPE |
| 36 | 3K-0360 | [1] | SEAL-O-RING |
| 37 | 5M-4454 | [1] | SEAL-O-RING |
| 38 | 453-3447 M | [10] | BOLT (M12X1.75X40-MM) |
| 39 | 451-2182 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 40 | 8T-4244 M | [1] | NUT (M12X1.75-THD) |
| 41 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) |
| 42 | 453-4169 M | [24] | BOLT (M16X2X200-MM) |
| 43 | 451-2175 | [24] | WASHER-HARD (17.5X30X3.5-MM THK) |
| | | | |
| | 1U-8846 BF | | SEALANT-GASKET |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |

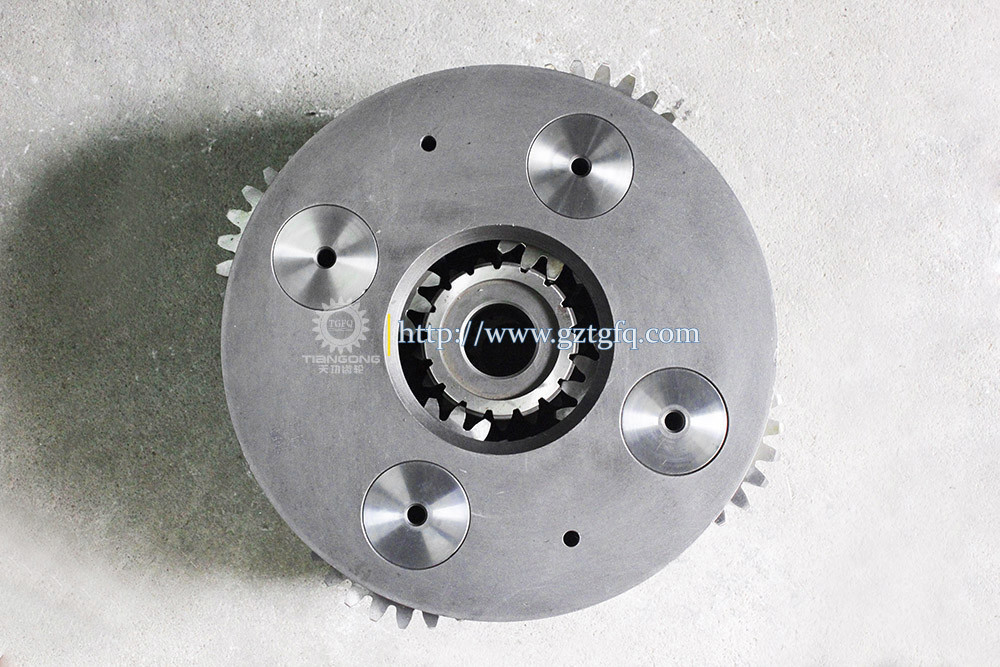

Picture for 1st carrier assy with sun gear:

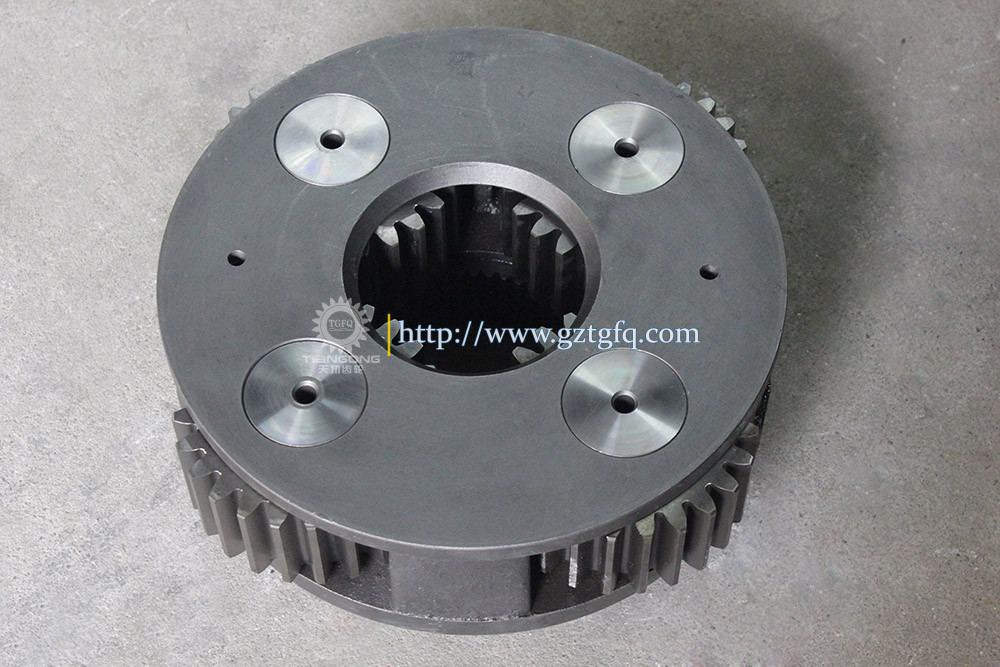

Picture for 2nd carrier assy with sun gear :
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: Which shipping term you can supply?
A: By sea, air or by express ( DHL, Fedex, TNT, UPS, EMS).
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
