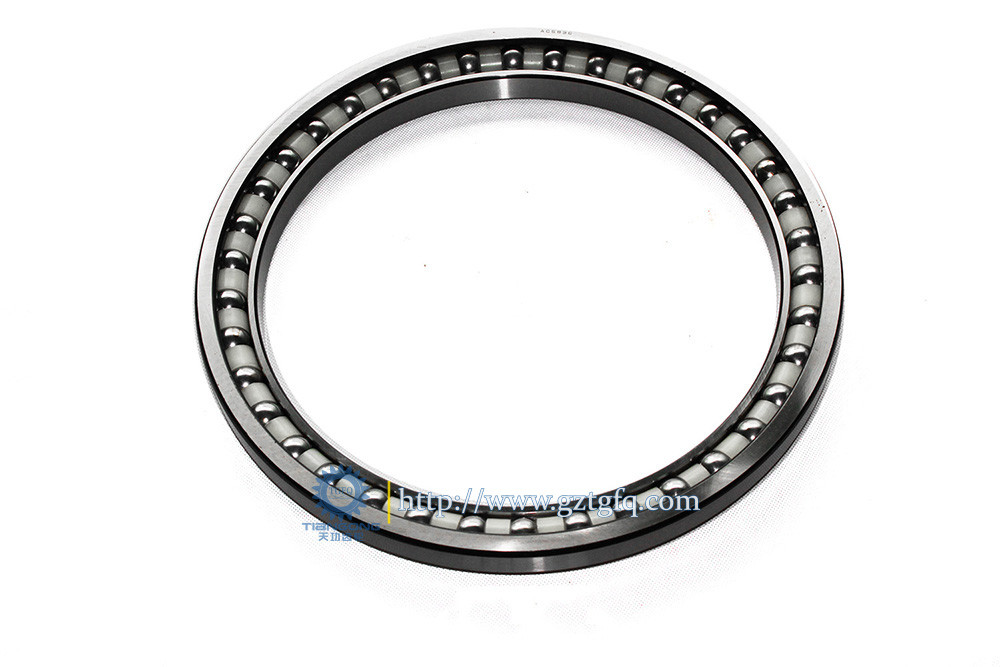

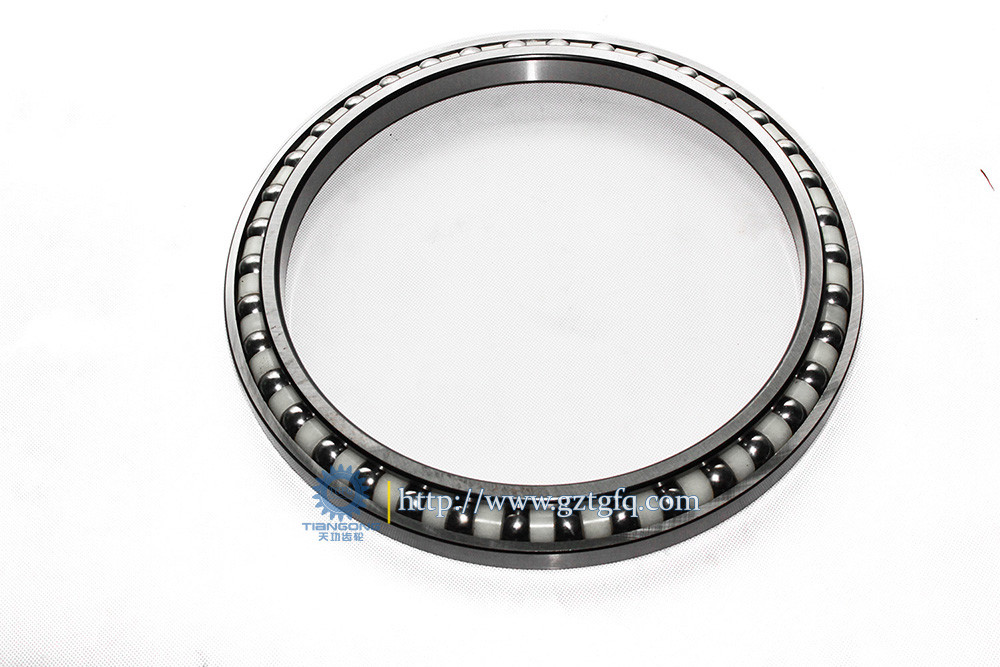

Single Row Excavator Bearing Deep Groove AC5836 50 HRC Low Voice
Single Type Excavator Bearing AC5836 Bearing High Quality
| Feature | Stable Performance: low Voice |
| Bearing number | AC5836 |
| Precision Rating | P0, P5,P4 |
| Bore Size | 5 - 1000 mm |
| Weight | 5KG |
| Material | Chrome steel |
| Hardness | 60-50 HRC |
| Bearing material | Chrome steel, Stainless steel, Ceramics |
| Stock | 1000pcs |
| Model number | Internal diameter | External diameter | Height |
| AC5836 | 289 | 355 | 34 |
| AC5033 | 250 | 330 | 38 |
| AC463240 | 230 | 320 | 40 |
| AC4629 | 230 | 290 | 27 |
| AC4531 | 225 | 315 | 40 |
| AC423040 | 210 | 300 | 40 |
| AC4630 | 230 | 300 | 35 |
| AC6037 | 300 | 370 | 33 |
| AC4631 | 230 | 310 | 39 |
| AC523438-1 | 260 | 340 | 38
|
Deep Groove ball bearings are the most popular of all the ball bearing types because they
are available in a wide variety of seal, shield and snap-ring
arrangements.The bearing ring grooves are circular arcs made
slightly larger than the radius of the ball.
The balls make point contact with the raceways (elliptical contact
when loaded). The inner ring shoulders are of equal height (as the
outer ring shoulders). Deep Groove ball bearings can sustain
radial, axial, or composite loads and because of simple design,
this bearing type can be produced to provide both high-running
accuracy and high-speed operation. Standard ball retainers (cages)
are made from pressed steel. Machined cages are used in bearing
operation at very high speed or for large diameter bearings.
Excavator bearing Excavator walking bearing
Excavator bearing installation and removal methods should be based
on excavator bearing structure, size and with the excavator bearing
components with the nature of the decision. Installation,
demolition of the pressure should be added directly to the
excavator bearing ring tight end surface, not through the excavator
bearing rolling body transfer pressure, because it will work in the
excavator bearing surface indentation, affecting the excavator
bearing normal work, And even make the excavator bearing damage.
Excavator bearing cages, seals, dust cover and other parts are easy
to deformation, installation or removal of the excavator bearing
pressure can not be added to these parts.
