    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E345D 345D E349D
    Price : 500.00-1000.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044


    Gearbox For Apply E345D 345D E349D Excavator Final Drive


    Product Parameter:

    Product Name:345D Excavator Travel Parts
    Place of Origin:China(Mainland)
    Model:E345D 345D E349D
    Part Number:227-6045 / 227-6044
    MOQ:1 PCS
    Payment term:L/C, T/T, D/P, D/A
    Delivery time:Within 1-3 days after receiving the payment
    Means of Transport:
    By Sea, By Air or By Express

    EXCAVATOR 330DL 330D MH 345C 345C L 345C MH 345D 345D L345D L VG 349D 349D L
    MOBILE HYD POWER UNIT 345C L

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

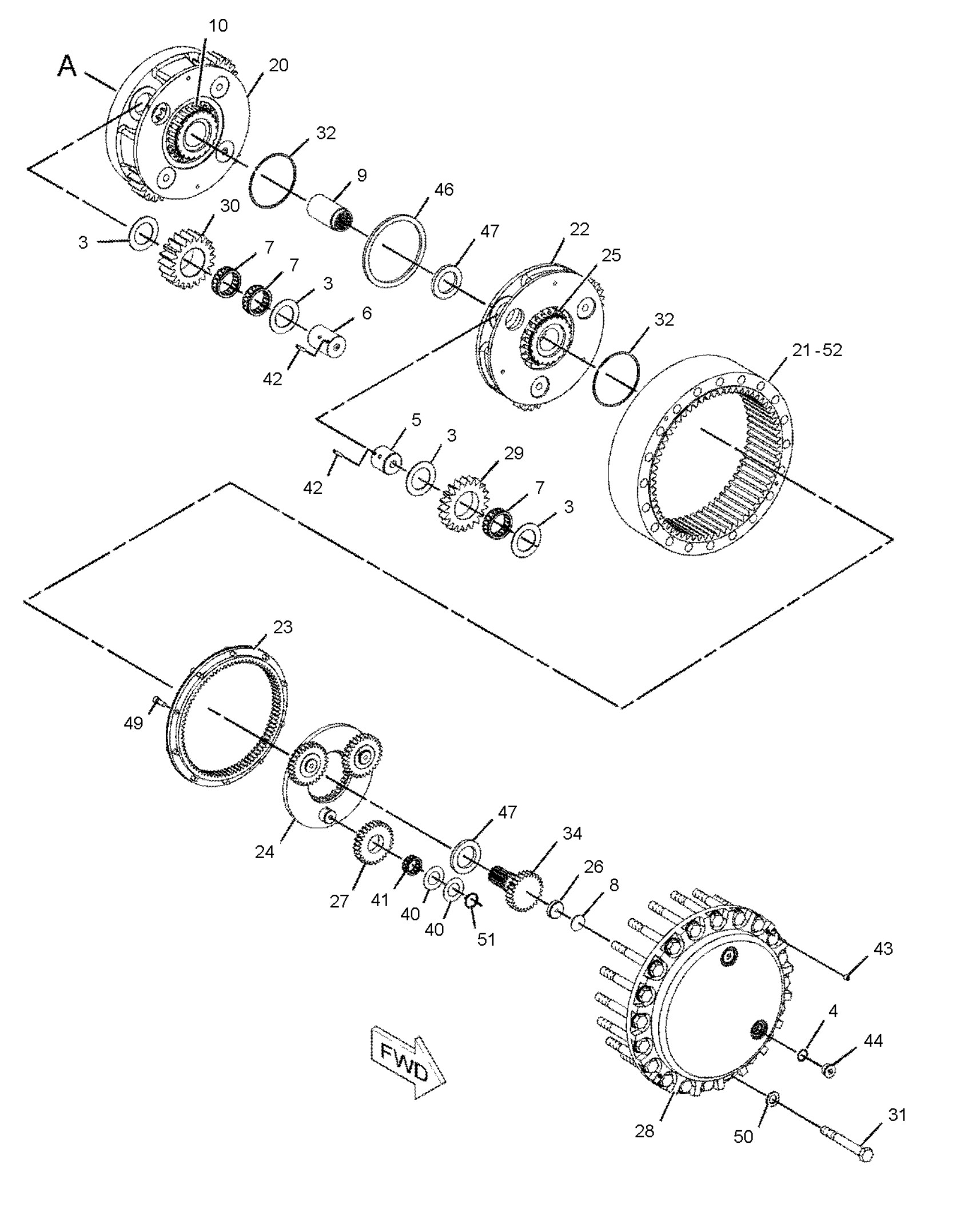

    Drawing:
    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
    Pos.Part NoQtyParts name
    12R-0524[2]CONE-BEARING
    22R-0525[2]CUP-BEARING
    34I-7576[14]WASHER (66.3X104X3-MM THK)
    47M-8485[2]SEAL-O-RING
    57Y-0661[3]SHAFT-PLANETARY
    67Y-0662[4]SHAFT-PLANETARY
    7199-4583[11]BEARING AS
    87Y-0808 B[1]SHIM (1.6-MM THK)
    97Y-1469[1]COUPLING
    107Y-1470[1]GEAR-SUN (21-TEETH)
    117Y-1472 B[1]SHIM (0.15-MM THK)
    127Y-1473 B[1]SHIM (0.3-MM THK)
    137Y-1474 B[1]SHIM (0.4-MM THK)
    147Y-1475 B[1]SHIM (0.5-MM THK)
    157Y-1476 B[1]SHIM (0.6-MM THK)
    167Y-1477 B[1]SHIM (0.7-MM THK)
    177Y-1478 B[1]SHIM (0.8-MM THK)
    187Y-1479 B[1]SHIM (1-MM THK)
    197Y-1480 B[1]SHIM (1.6-MM THK)
    207Y-1482[1]CARRIER-PLANETARY
    217Y-1483[1]GEAR-RING (63-TEETH)
    227Y-1485[1]CARRIER-PLANETARY
    237Y-1487[1]GEAR-RING (85-TEETH)
    247Y-1488[1]CARRIER AS
    7Y-0656[3]SHAFT-PLANETARY
    257Y-1491[1]GEAR-SUN (21-TEETH)
    267Y-1493[1]SPACER (8.7X50X14-MM THK)
    277Y-1495[3]GEAR-PLANETARY (29-TEETH)
    287Y-1498[1]COVER
    297Y-1499[3]GEAR-PLANETARY (20-TEETH)
    307Y-1504[4]GEAR-PLANETARY (20-TEETH)
    317Y-5235 M[20]BOLT (M24X3X190-MM)
    32110-7217[2]RING-RETAINING
    33114-1541[6]PIN-DOWEL
    34169-5559[1]GEAR-SUN (26-TEETH)
    35199-4719[1]GEAR-COUPLING
    36200-3489[1]HOUSING-MOTOR
    37200-3490[1]HOUSING-GEAR
    38205-9025[1]SEAL GP-DUO-CONE
    205-9024[2]RING-TORIC
    39227-6048[12]WASHER (26X40X4-MM THK)
    40094-0584[6]WASHER (40.3X72X1-MM THK)
    41199-4582[3]BEARING AS
    42095-0891[7]PIN-SPRING
    43096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
    443E-2338[2]PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
    456V-8133 M[12]BOLT (M24X3X80-MM)
    467Y-1484[1]SPACER (191X221X8.5-MM THK)
    477Y-1492[2]SPACER (67X101.1X10-MM THK)
    488C-5240[1]SEAL-O-RING
    498T-3957 M[10]BOLT-SOCKET HEAD (M12X1.75X30-MM)
    508T-4167[20]WASHER-HARD (26X44X4-MM THK)
    518T-4240[3]RING-RETAINING
    521U-8846 BSEALANT-GASKET
    BUSE AS REQUIRED
    MMETRIC PART

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How long is the warranty period?
    A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
