E320C 320C E320D Excavator Travel Gearbox

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers

    Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers
    • Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers
    • Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers
    • Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers
    • Buy cheap E320C 320C E320D Excavator Travel Gearbox from wholesalers

    E320C 320C E320D Excavator Travel Gearbox

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E320C 320C E320D
    Price : 500.00-4000.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 50 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    E320C 320C E320D Excavator Travel Gearbox

    E320C 320C E320D Excavator Travel Gearbox


    E320C 320C E320D Travel Gearbox Apply To Excavator Spare Parts


    Product Parameter:

    Product name:Travel gearbox
    Place of Origin:China(mainland)
    Model:E320C 320C E320D
    Part Number:199-4584
    MOQ:1 PCS
    Payment term:L/C, T/T, D/P, D/A
    After sales service:Online
    Means of Transport:
    By Sea, By Air or By Express

    EXCAVATOR 318C 320C

    • 1994584 DRIVE GP-FINAL
    320C & 320C L Excavators AMC00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP30730212
    320C & 320C L Excavators BPR00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP31440149
    • 199-4599 DRIVE GP-FINAL » SEBP31440152
    320C U 320C LU Excavators CLM00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP32570146
    320C Excavators HBC00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP33640095
    318C L & 318C LN Excavators GPA00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP35410164
    318C Excavators BTG00001-UP (MACHINE) POWERED BY 3066 Engine
    • 148-4696 DRIVE GP-FINAL » SEBP35920200

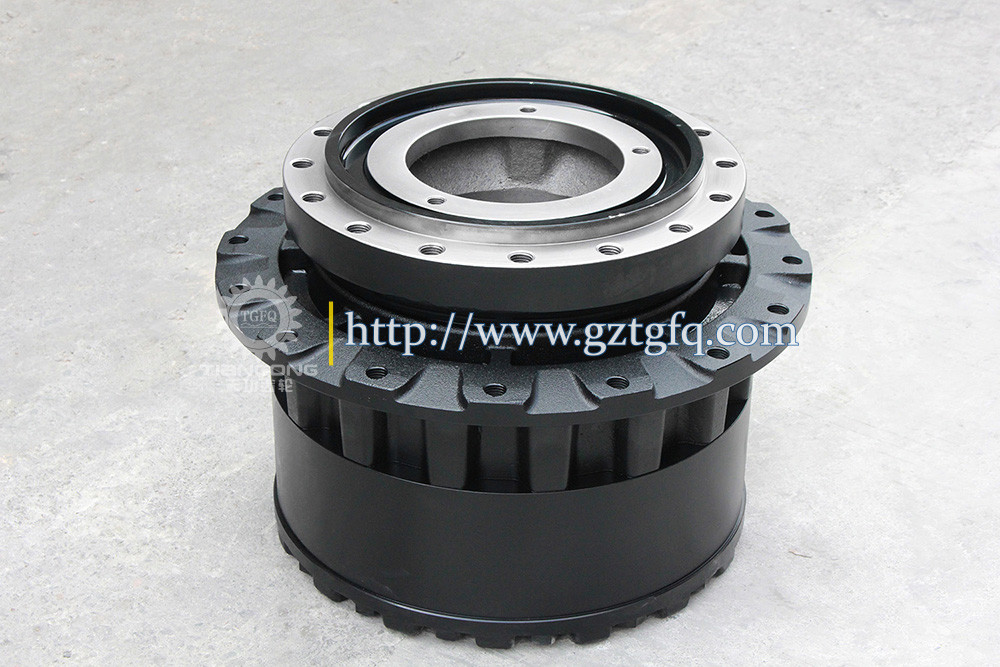

    320D Final Drive Photo:
    E320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel GearboxE320C 320C E320D Excavator Travel Gearbox
    Drawing:
    E320C 320C E320D Excavator Travel Gearbox
    Pos.Part NoQtyParts name
    17Y-1434[1]SPACER (40X69.5X6-MM THK)
    2096-1773 B[1]SHIM (0.15-MM THK)
    3096-1774 B[1]SHIM (0.3-MM THK)
    4096-1775 B[1]SHIM (0.4-MM THK)
    5096-1776 B[1]SHIM (0.5-MM THK)
    6096-1777 B[1]SHIM (0.6-MM THK)
    7096-1778 B[1]SHIM (0.7-MM THK)
    8096-1779 B[1]SHIM (0.8-MM THK)
    9096-1780 B[1]SHIM (1-MM THK)
    10096-1781 B[1]SHIM (1.6-MM THK)
    116V-3303 M[14]BOLT (M16X2X60-MM)
    127Y-0223[3]SHAFT-PLANETARY
    13094-1542[6]BEARING-ROLLER
    147Y-1431[3]GEAR-PLANETARY (30-TEETH)
    15094-1528[6]WASHER (53X84X1-MM THK)
    16095-0891[6]PIN-SPRING
    176I-6585[3]GEAR-PLANETARY (44-TEETH)
    18094-0616[3]BEARING AS-ROLLER
    193E-2338[2]PLUG-PIPE
    207M-8485[2]SEAL-O-RING
    217Y-1426[1]COVER
    227Y-0225[3]SHAFT-PLANETARY
    23094-0611[6]WASHER (47.3X76X1-MM THK)
    24094-0580[1]PLATE (10-MM THK)
    256I-6583[1]GEAR-SUN (13-TEETH)
    267Y-1430[1]GEAR-SUN (17-TEETH)
    277Y-1558[1]SPACER (90X119.6X7.5-MM THK)
    287Y-1432[1]CARRIER
    297X-2568 M[16]BOLT (M20X2.5X180-MM)
    308T-4123[16]WASHER (22X35X3.5-MM THK)
    311U-8846 B SEALANT-GASKET
    33148-4705[1]GEAR-RING (104-TEETH)
    347Y-1433[1]CARRIER
    356D-0692[1]SEAL-O-RING
    36148-4715[1]GEAR-COUPLING (55-TEETH)
    37114-1539[6]PIN-DOWEL
    38114-1486[1]HOUSING
    39168-8451[2]BALL BEARING
    40114-1497[1]SEAL GP-DUO-CONE
    41148-4716[1]HOUSING-MOTOR
    42095-1270 M[2]SETSCREW-SOCKET (M12X1.75X30-MM)
    43148-4708[1]GEAR-RING (79-TEETH)
     B USE AS REQUIRED
     M METRIC PART

    E320C 320C E320D Excavator Travel Gearbox


    E320C 320C E320D Excavator Travel Gearbox


    E320C 320C E320D Excavator Travel Gearbox


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    E320C 320C E320D Excavator Travel Gearbox

    E320C 320C E320D Excavator Travel Gearbox

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: do you have a factory?
    A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
