    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EX200-5 EX200-3
    Price : 500.00-4000.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3


    Excavator Parts Final Drive Travel Reduction GearBox EX200-5 EX200-3


    Product parameter:

    Product name:Hydraulic Motor Reduction
    Place of Origin:China(Mainland)
    Model:EX200-5 EX200-3
    Part number:9150472 / 9155253 / 9119377
    Motor case:14 Holes
    MOQ:1 PCS
    Payment term:L/C, T/T, D/P, D/A
    Delivery time:Within 1-3 days after receiving the payment
    Means of Transport:
    By Sea, By Air or By Express

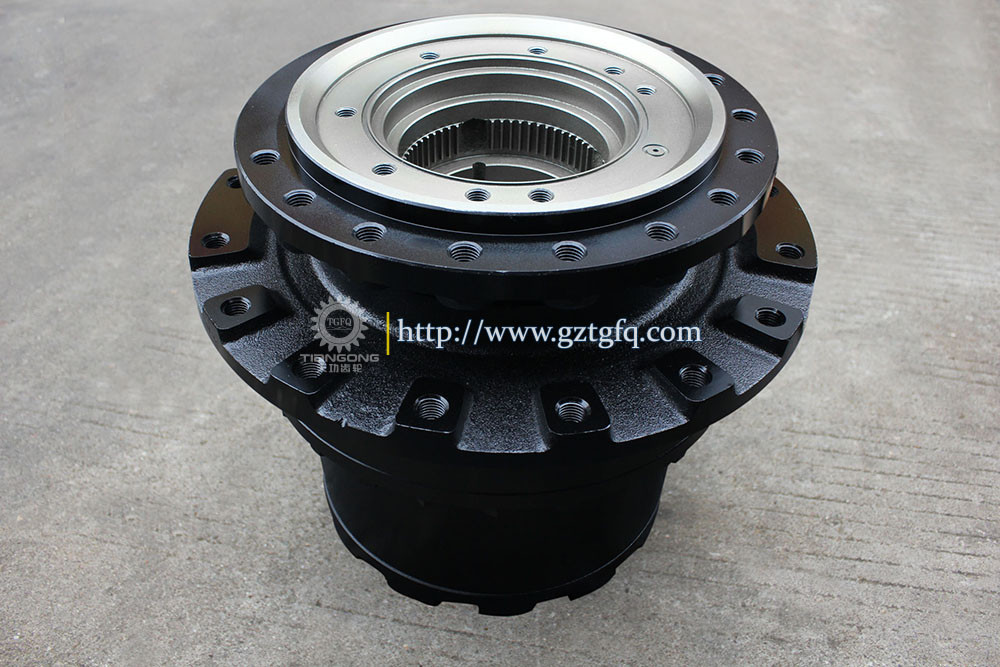

    EX200-5 Reduction Picture:

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-39155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-39155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

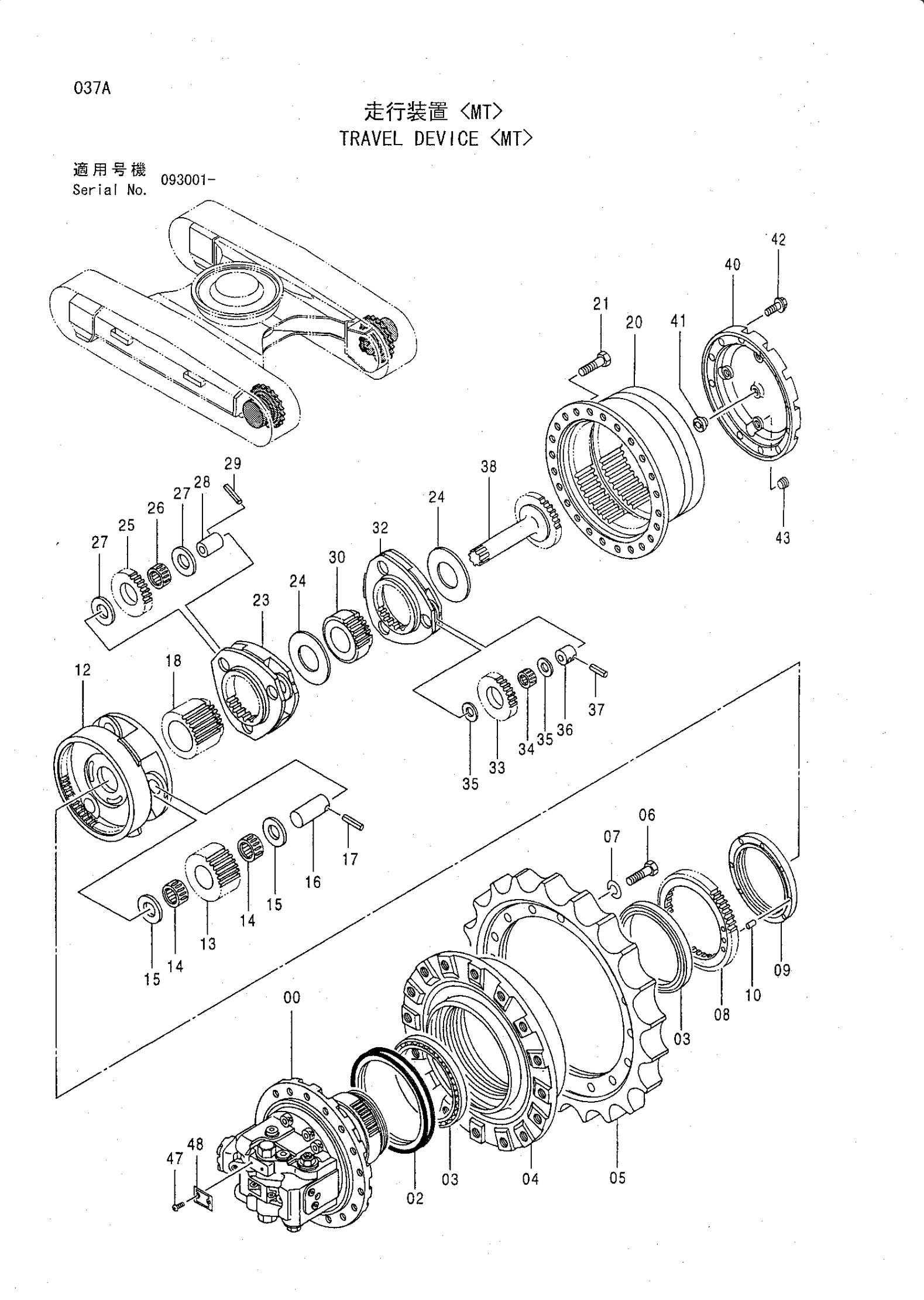

    Drawing:
    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    Compatible equipment models: 9150472:

    CHR70 EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX210LC-5HHE Hitachi
    Parts on group TRAVEL DEVICE:
    Pos.
    Part NoQtyParts nameComments
     9150472[2]TRAVEL DEVICE ASS'YI 9155253 (for assembly of machine)
     -9155253[2]TRAVEL DEVICE ASS'Y(for transportation)
    09146471[1]MOTOR;OILI 9149087 (for assembly of machine)
    0-9149087[1]MOTOR;OIL(for transportation)
    24114753[1]SEAL;GROUP
    34246793[2]BRG.;ROL.
    41018736[1]DRUM
    51018740[1]SPROCKET
    6J932055[16]BOLT
    7A590920[16]WASHER;SPRING
    83047448[1]HUB
    93057125[1]NUT
    104246783[1]PIN;KNOCK
    121019147[1]CARRIER
    133063957[3]GEAR;PLANETARY
    144317122[6]BRG.;NEEDLE
    154284521[6]PLATE;THRUST
    164315838[3]PIN
    174116309[3]PIN;SPRING
    183063959[1]GEAR;SUN
    201020184[1]GEAR;RING
    21J931640[24]BOLT
    232034836[1]CARRIER
    244192979[2]SPACER
    253063956[3]GEAR;PLANETARY
    264317121[3]BRG.;NEEDLE
    274210851[6]PLATE;THRUST
    284309995[3]PIN
    294192020[3]PIN;SPRING
    303063958[1]GEAR;SUN
    322034835[1]CARRIER
    333063955[3]GEAR;PLANETARY
    344210849[3]BRG.;NEEDLE
    354192910[6]PLATE;THRUST
    364210853[3]PIN
    374173093[3]PIN;SPRING
    382034834[1]SHAFT;PROP.
    402034833[1]COVER
    414285323[1]PIN;STOPPER
    42J011230[12]BOLT;SEMS
    434245797[3]PLUG
    47M492564[2]SCREW;DRIVE

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    9155253 Excavator Hydraulic Motor Reduction Gearbox EX200-5 EX200-3

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How long is the warranty period?
    A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
