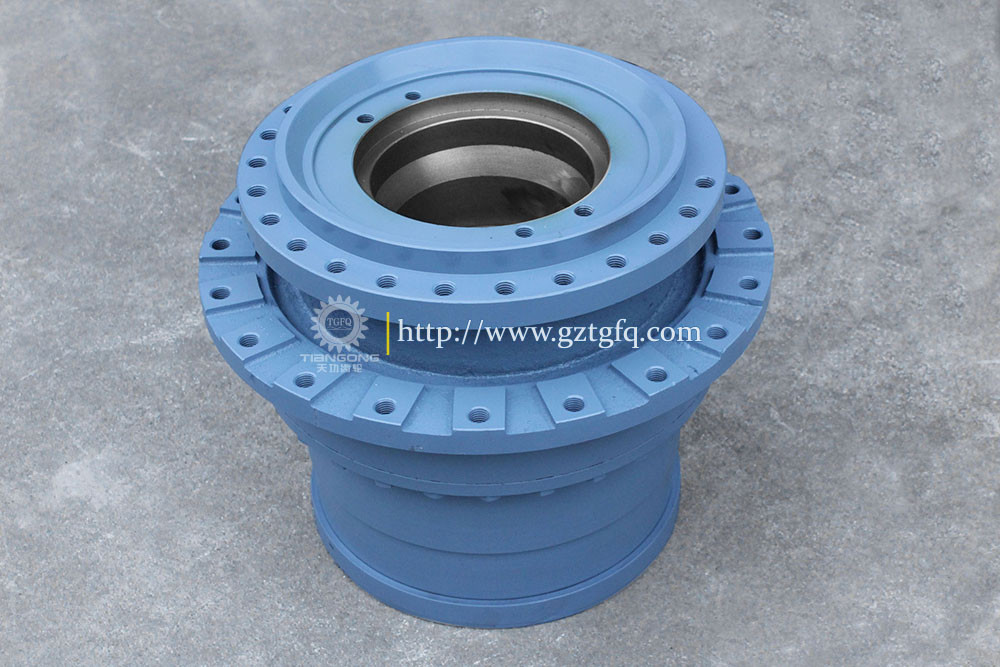

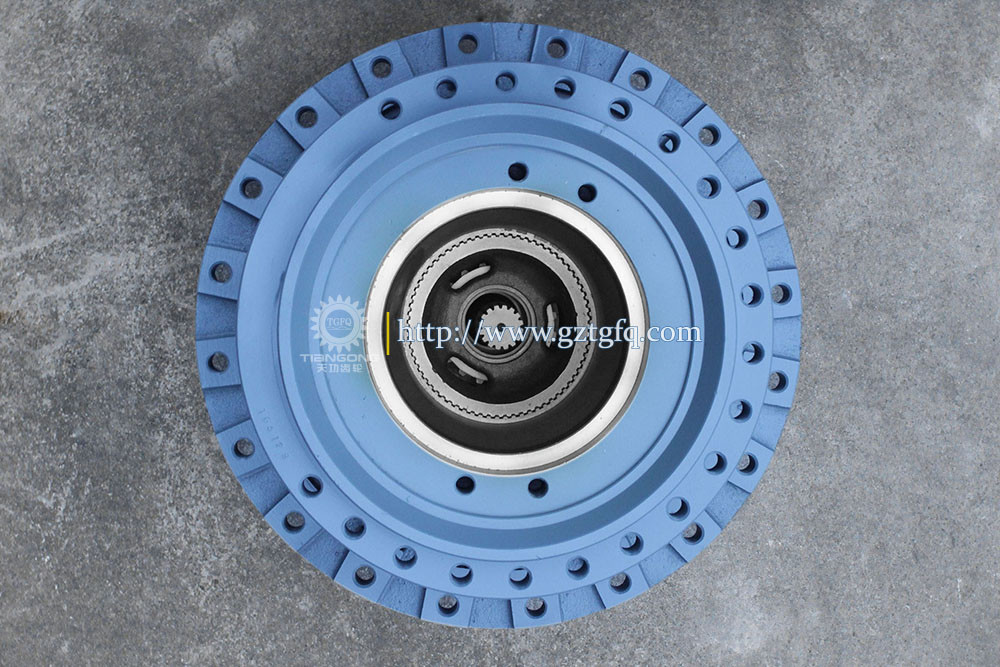

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5 from wholesalers

    Buy cheap 9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5 from wholesalers
    • Buy cheap 9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5 from wholesalers
    • Buy cheap 9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5 from wholesalers

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EX300-5 EX350-5
    Price : 500.00-4000.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 50 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5


    9149237 For Apply EX300-5 EX350-5 Hitachi Excavator Travel Gearbox


    Product parameter:

    Product name:Excavator Final Drive Gearbox
    Place of Origin:China(Mainland)
    Model:EX300-5 EX350-5
    Part number:9149237 / 9155748
    Motor case:20 Holes
    MOQ:1 PCS
    Payment term:L/C, T/T, D/P, D/A
    Delivery time:Within 1-3 days after receiving the payment
    Means of Transport:
    By Sea, By Air or By Express

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    Drawing:

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5


    Pos.Part NoQtyParts name
    -9155748[2]TRAVEL DEVICE ASSY
    9149237[2]TRAVEL DEVICE ASSY
    0-9155694[1]MOTOR;OIL
    09149125[1]MOTOR;OIL
    21022194[1]HOUSING
    34066695[1]SEAL;GROUP
    44192975[2]BRG.;ROL.
    51022179[1]DRUM
    61022168[1]SPROCKET
    7A590920[20]WASHER;SPRING
    8J932060[20]BOLT
    103036256[1]NUT
    114192974[1]PLATE;LOCK
    12J901225[2]BOLT
    141022198[1]CARRIER
    154192979[2]SPACER
    163075003[3]GEAR;PLANETARY
    184269470[6]PLATE;THRUST
    194269452[3]PIN
    204192021[3]PIN;SPRING
    213075005[1]GEAR;SUN
    224371402[6]BRG.;NEEDLE
    231022195[1]GEAR;RING
    24J931640[28]BOLT
    261022197[1]CARRIER
    273075002[3]GEAR;PLANETARY
    284183818[3]BRG.;NEEDLE
    294284521[6]PLATE;THRUST
    304269451[3]PIN
    314197763[3]PIN;SPRING
    323074989[1]GEAR;SUN
    341022196[1]CARRIER
    354308769[1]SPACER
    363075001[3]GEAR;PLANETARY
    374269471[3]BRG.;NEEDLE
    384284520[6]PLATE;THRUST
    394269472[3]PIN
    404192020[3]PIN;SPRING
    412038915[1]SHAFT;PROP.
    432038904[1]COVER
    444277474[1]PIN;STOPPER
    454278168[1]BRG.;BALL
    46930451[1]RING;RETAINING
    47J011230[16]BOLT;SEMS
    484245797[3]PLUG
    504269473[1]O-RING
    514287213[4]WASHER;SPRING
    52M341885[4]BOLT;SOCKET
    543053559[1]NAME-PLATE
    55M492564[2]SCREW;DRIVE

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How long is the warranty period?
    A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
