TGFQ 207-27-00160 Komstau Excavator PC300-6 6D102 Travel Reducer Gear Box

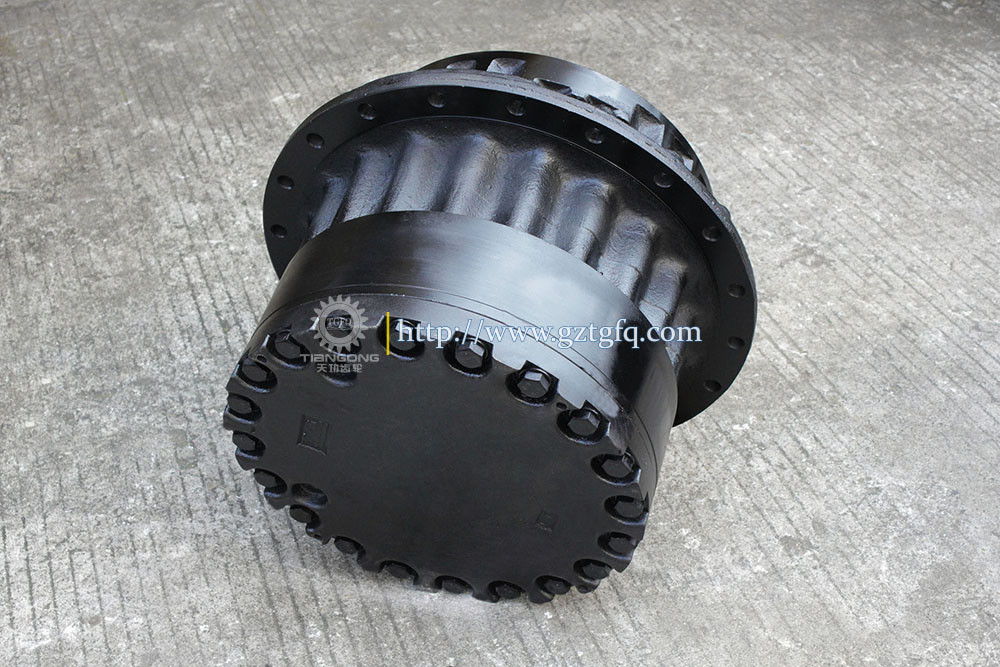

Travel Reduction Assy Photo:

Drawing:

Pos.	Part No	Qty	Parts name	Comments
	207-27-00160	[2]	FINAL DRIVE ASS Komatsu	684 kg.
			["Field_1: J10118-"] |$1.
1.	708-8H-00270	[1]	MOTOR ASS'Y Komatsu	181.4 kg.
			["Field_1: J10118-"]
	170-27-00025	[1]	FLOATING SEAL A Komatsu OEM	3.72 kg.
			["Field_1: J10118-"] analogs:["2072700310", "1702700024", "4233300021"] |$3.
2	170-27-00115	[1]	SEAL RING ASS'Y Komatsu OEM	3.425 kg.
			["Field_1: J10118-"] analogs:["1702700114"]
3	170-27-00120	[1]	O-RING SET Komatsu	0.31 kg.
			["Field_1: J10001-"] analogs:["1952700150"]
4.	207-27-63190	[1]	HUB Komatsu	121.55 kg.
			["Field_1: J10118-"]
5.	207-27-63220	[2]	BEARING Komatsu	7.8 kg.
			["Field_1: J10118-"]
6.	207-27-51292	[1]	COVER Komatsu	8.2 kg.
			["Field_1: J10118-"] analogs:["2072751291"]
7.	01010-81030	[16]	BOLT Komatsu OEM	0.03 kg.
			["Field_1: J10118-"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
8.	01643-31032	[16]	WASHER Komatsu	0.054 kg.
			["Field_1: J10001-"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
9.	207-27-63240	[1]	O-RING Komatsu	0.03 kg.
			["Field_1: J10118-"]
10.	207-27-61270	[1]	LOCK Komatsu	0.07 kg.
			["Field_1: J10001-"]
11.	207-27-61261	[1]	LOCK NUT Komatsu	7.3 kg.
			["Field_1: J10118-"]
12.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["Field_1: J10118-"] analogs:["801014093", "0101051020", "801015108"]
13.	207-27-63170	[1]	CARRIER Komatsu	31.4 kg.
			["Field_1: J10118-"]
14.	207-27-63140	[4]	GEAR Komatsu China
			["Field_1: J10118-"]
15.	207-27-63210	[4]	BEARING Komatsu OEM	0.6 kg.
			["Field_1: J10118-"]
16.	20Y-27-21250	[8]	THRUST WASHER Komatsu China	0.03 kg.
			["Field_1: J10118-"]
17.	207-27-63230	[4]	PIN Komatsu OEM	1.68 kg.
			["Field_1: J10118-"]
18.	20Y-26-21330	[4]	PIN Komatsu China	0.1 kg.
			["Field_1: J10118-"]
19.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["Field_1: J10001-"]
20.	207-27-63130	[1]	GEAR Komatsu	2.54 kg.
			["Field_1: J10118-"]
21.	207-27-63150	[1]	GEAR Komatsu	59 kg.
			["Field_1: J10118-"]
22.	207-27-63250	[1]	WASHER Komatsu	0.05 kg.
			["Field_1: J10118-"]
23.	207-27-63160	[1]	CARRIER Komatsu	8.9 kg.
			["Field_1: J10118-"]
24.	207-27-63120	[3]	GEAR Komatsu	3.9 kg.
			["Field_1: J10118-"]
25.	207-27-61220	[3]	BEARING Komatsu China	0.74 kg.
			["Field_1: J10001-"]
26.	20Y-27-21240	[6]	THRUST WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"]
27.	207-27-61240	[3]	PIN Komatsu China	2.49 kg.
			["Field_1: J10001-"]
28.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["Field_1: J10001-"]
29.	207-27-63110	[1]	SHAFT Komatsu	2.12 kg.
			["Field_1: J10118-"]
30.	20Y-27-11250	[1]	SPACER Komatsu OEM	0.044 kg.
			["Field_1: J10001-"] analogs:["2052771570"]
31.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["Field_1: J10118-"]
32.	207-27-63180	[1]	COVER Komatsu	28 kg.
			["Field_1: J10118-"]
33.	01011-61880	[20]	BOLT Komatsu	0.402 kg.
			["Field_1: J10118-"]
34.	01643-31845	[20]	WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"] analogs:["0164321845", "R0164331845"]
35.	07049-01215	[4]	PLUG Komatsu	0.001 kg.
			["Field_1: J10001-"]
36.	07044-12412	[2]	PLUG Komatsu	0.09 kg.
			["Field_1: J10001-"] analogs:["0704402412", "R0704412412"]
37.	07002-02434	[2]	O-RING Komatsu China	0.01 kg.
			["Field_1: J10001-"] analogs:["0700212434", "0700213434"]
38.	207-27-61210	[1]	SPROCKET Komatsu China	66.7 kg.
			["Field_1: J10001-"] analogs:["2072771460"]
39.	207-27-51311	[20]	BOLT Komatsu China	0.222 kg.
			["Field_1: J10001-"] analogs:["2072751310", "20727K1120", "20727K1130"]

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Troubleshooting-General Precautions:

• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially effect the Track Drive Motor's performance.

• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken during the reassembly process.

• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a result must be handled with care to avoid irreversible damage.

Diagnosis & Maintenance:

• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.

• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.
