TGFQ 160142A1 SH200 Travel Gearbox Sumitomo Excavator Parts

Product Photo:

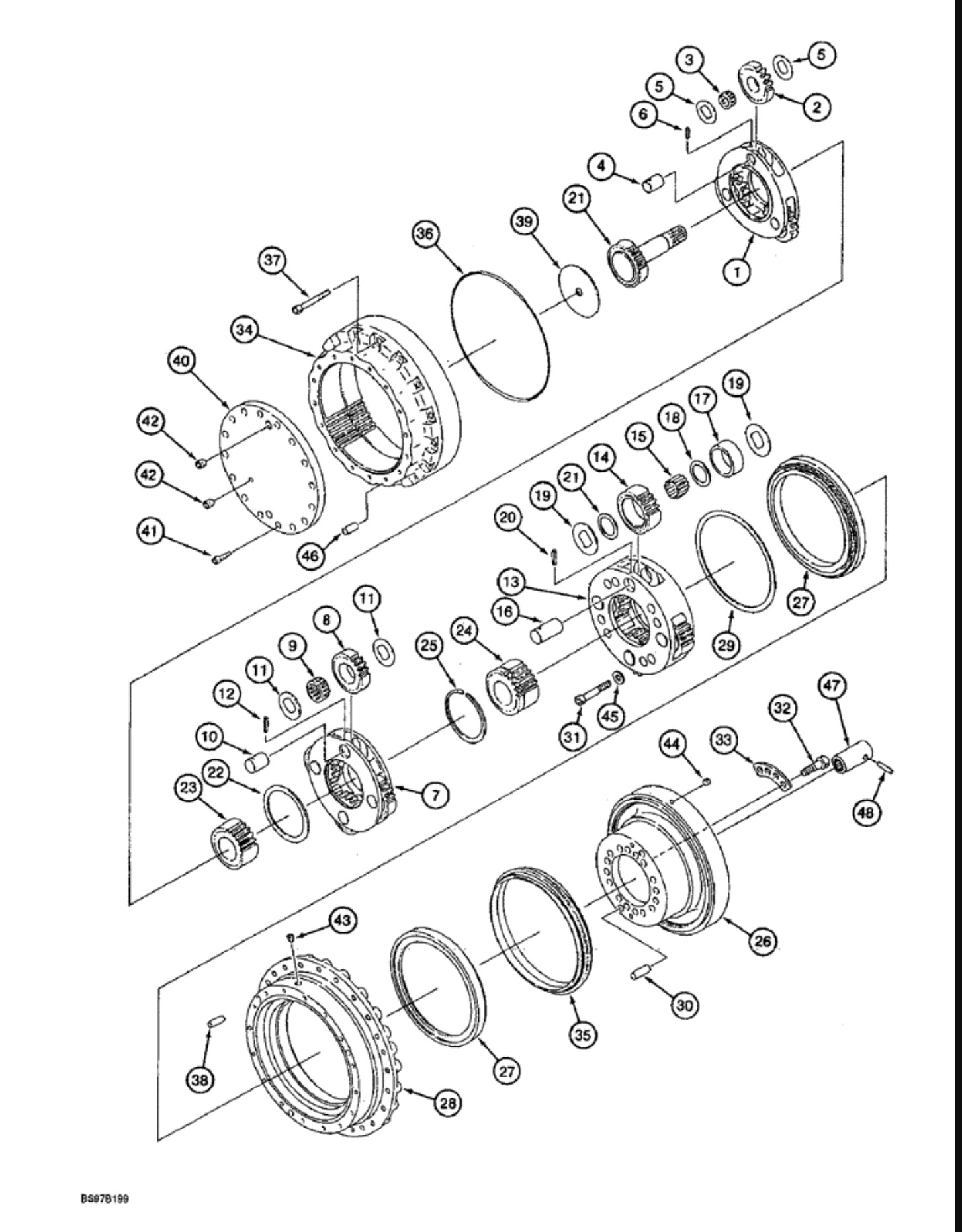

Drawing:

Parts on group (9030B) - CASE CRAWLER EXCAVATOR (11/94-12/00):

Pos.	Part No	Qty	Parts name	Comments
. .	160142A1	[1]	REDUCER	SUM TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6
. .	160146A1	[1]	GEAR WHEEL	SUM CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6
1	160094A1	[1]	GEAR WHEEL	SUM CARRIER A - planetary gears
2	160004A1	[3]	SUN GEAR	SUM GEAR - planetary
3	160278A1	[3]	BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W	SUM NEEDLE - bearing
4	160029A1	[3]	LARGE PIN	SUM SHAFT - gear
5	160291A1	[6]	THRUST WASHER	SUM WASHER - thrust
6	160109A1	[2]	PIN, ROLL	SUM PIN - roll, special
. .	160144A1	[1]	HOLDER	SUM CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12
7	160095A1	[1]	GEAR WHEEL	SUM CARRIER B - planetary gears
8	160005A1	[4]	SUN GEAR	SUM GEAR - planetary
9	160273A1	[4]	NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W	SUM BEARING - roller
10	160030A1	[4]	SHAFT	SUM - gear
11	160043A1	[3]	THRUST WASHER	SUM WASHER - thrust
12	160098A1	[4]	PIN, ROLL	SUM PIN - roll, special
. .	160145A1	[1]	GEAR WHEEL	SUM CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20
13	160207A1	[1]	HOLDER	SUM CARRIER C - planetary gears
14	160010A1	[4]	SUN GEAR	SUM GEAR - planetary
15	160326A1	[68]	ROLLER	SUM NEEDLE - bearing
16	160031A1	[4]	SHAFT	SUM - gear
17	160037A1	[4]	BUSHING	SUM RACE - bearing
18	160093A1	[8]	COLLAR	SUM - needle retaining
19	160044A1	[8]	THRUST WASHER	SUM WASHER - thrust
20	160099A1	[4]	PIN, ROLL	SUM PIN - roll, special
21	160007A1	[1]	PINION	SUM GEAR - drive
22	160038A1	[1]	PLATE, THRUST	SUM PLATE - thrust
23	160008A1	[1]	SUN GEAR	SUM GEAR B - sun
24	160009A1	[1]	SUN GEAR	SUM GEAR C - sun Superseded by part number: 155283A1
25	155643A1	[1]	RING, SNAP	SUM RING - snap
26	NSS	[1]	NOT SOLD SEPARAT	CON FLANGE - final drive transmission
27	156144A1	[2]	BEARING, BALL,240mm ID x 310mm OD x 32mm W	SUM BEARING - ball
28	NSS	[1]	NOT SOLD SEPARAT	CON HOUSING - bearing
29	160223A1	[1]	SHIM KIT	SUM KIT - shim
30	160104A1	[4]	PIN	SUM - dowel
31	863-16090	[4]	HEX SOC SCREW,M16 x 90mm, Cl 12.9	SUM BOLT - hex socket, 16-2.0 x 90 mm, class 12.9 Superseded by part number: 2465671
32	863-18055	[16]	HEX SOC SCREW,M18 x 55mm, Cl 12.9	SUM BOLT - hex socket, 18-2.5 x 55 mm, class 12.9 Superseded by part number: 108R018Z055N
33	156338A1	[4]	PLATE	SUM - lock
34	160006A1	[1]	PINION	SUM GEAR - ring
. .	160575A1	[1]	SEAL KIT	SUM KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36
35	155299A1	[1]	SEAL	SUM - face Superseded by part number: LE01126
36	155183A1	[1]	O-RING	SUM - seal
37	156200A1	[16]	BOLT,M14 x 95mm	SUM BOLT - hex socket, 14-2.0 x 95 mm
38	155647A1	[3]	COTTER PIN	SUM PIN - dowel
39	160220A1	[1]	SET OF PARTS	SUM KIT - thrust plate
40	160325A1	[1]	COVER	SUM - final drive transmission
41	863-10020	[16]	HEX SOC SCREW,M10 x 20mm, Cl 12.9	CAS BOLT - hex socket, 10-1.5 x 20 mm, class 12.9
42	151033A1	[3]	PLUG	SUM - hex socket, special
43	151026A1	[1]	PLUG	SUM - port
44	151022A1	[1]	PLUG	SUM - hex socket, special
45	892-10016	[4]	LOCK WASHER,M16	SUM WASHER - lock, 16 mm
46	155578A1	[1]	PIN	SUM - dowel
47	160002A1	[1]	COUPLING	SUM - drive motor Superseded by part number: 155257A1
48	738-1650	[1]	LOCK PIN,M6 x 50, Slotted	CAS PIN - roll, 6 x 50 mm

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Troubleshooting-General Precautions:

• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially effect the Track Drive Motor's performance.

• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken during the reassembly process.

• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a result must be handled with care to avoid irreversible damage.

Diagnosis & Maintenance:

• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.

• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.
