Excavator Travel Reducer Sumitomo SH265 Travel Reduction Gearbox

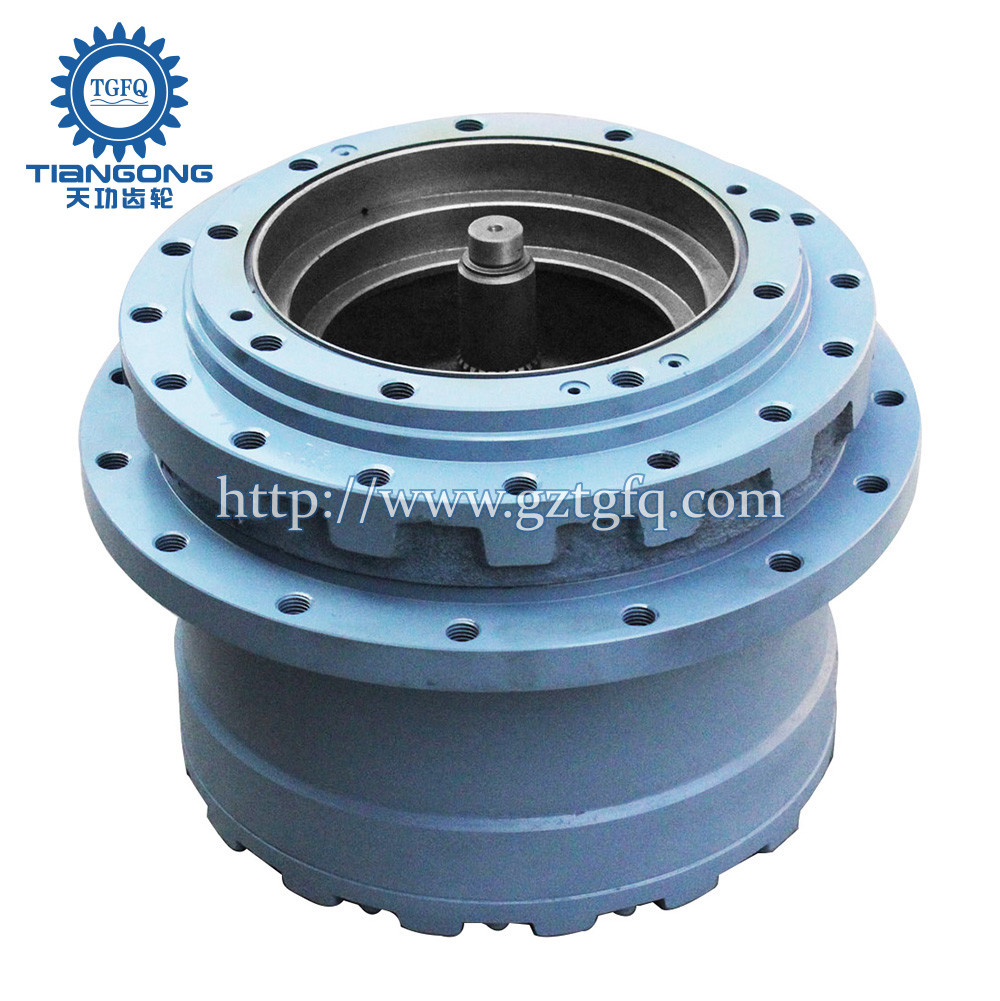

Product Photo:

Drawing:

SIS
Pos.	Part No	Qty	Parts name
121-147.	099-7046	[1]	TRAVEL GEAR ASSY.
	1R-5394	[1]	TRAVEL GEAR ASSY.
121-149.	1R-5490	[1]	TRAVEL GEAR ASSY.
	099-7202	[1]	GEAR ASSY. SEAL KIT
	1R-5472	[1]	GEAR ASSY. SEAL KIT
	1R-5494	[1]	GEAR ASSY. SEAL KIT
121	099-7055	[4]	WASHER
122	099-7052	[4]	GEAR
123	099-7053	[4]	BEARING
124	099-7054	[4]	BUSHING
125	099-7057	[4]	SCREW
126	099-7056	[1]	PLATE
127	099-7061	[3]	GEAR
128	099-7072	[1]	WIRE
129	099-7071	[1]	O-RING
	1R-5470	[1]	O-RING
130	099-7062	[3]	BEARING
131	099-7063	[3]	RING
132	099-7064	[3]	PIN
133	099-7060	[1]	HOLDER
134	093-4489	[5]	PLUG

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Troubleshooting-General Precautions:

• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially effect the Track Drive Motor's performance.

• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken during the reassembly process.

• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a result must be handled with care to avoid irreversible damage.

Diagnosis & Maintenance:

• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.

• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.
