Komatsu Excavator PC60-7 Travel Gearbox Without Motor

TZ502D1000-00 Komatsu Excavator PC60-7 Travel Gearbox Without Motor

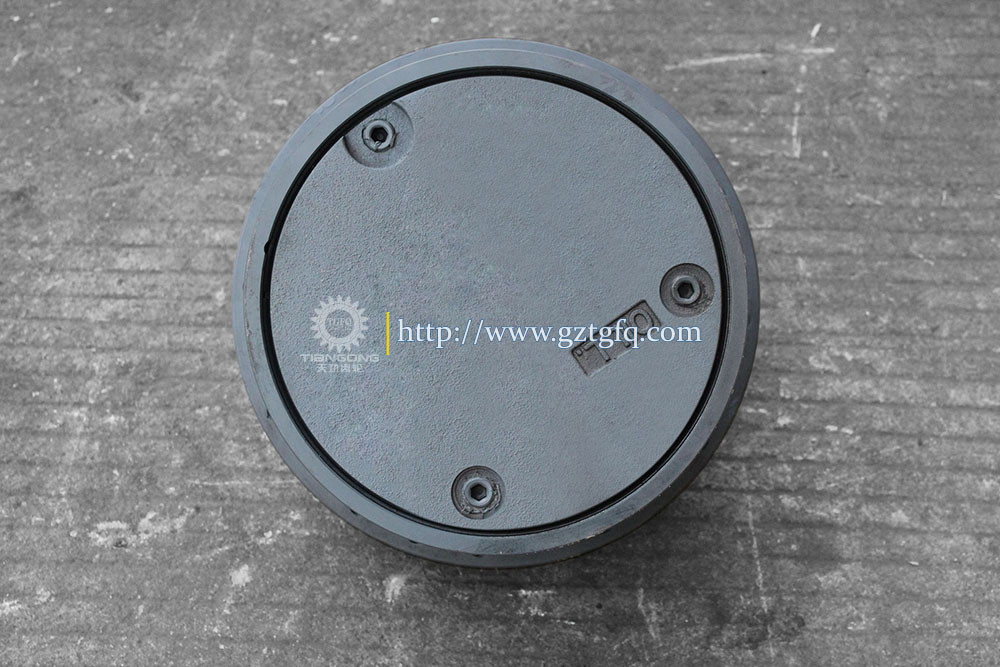

PC60-7 Product Photo:

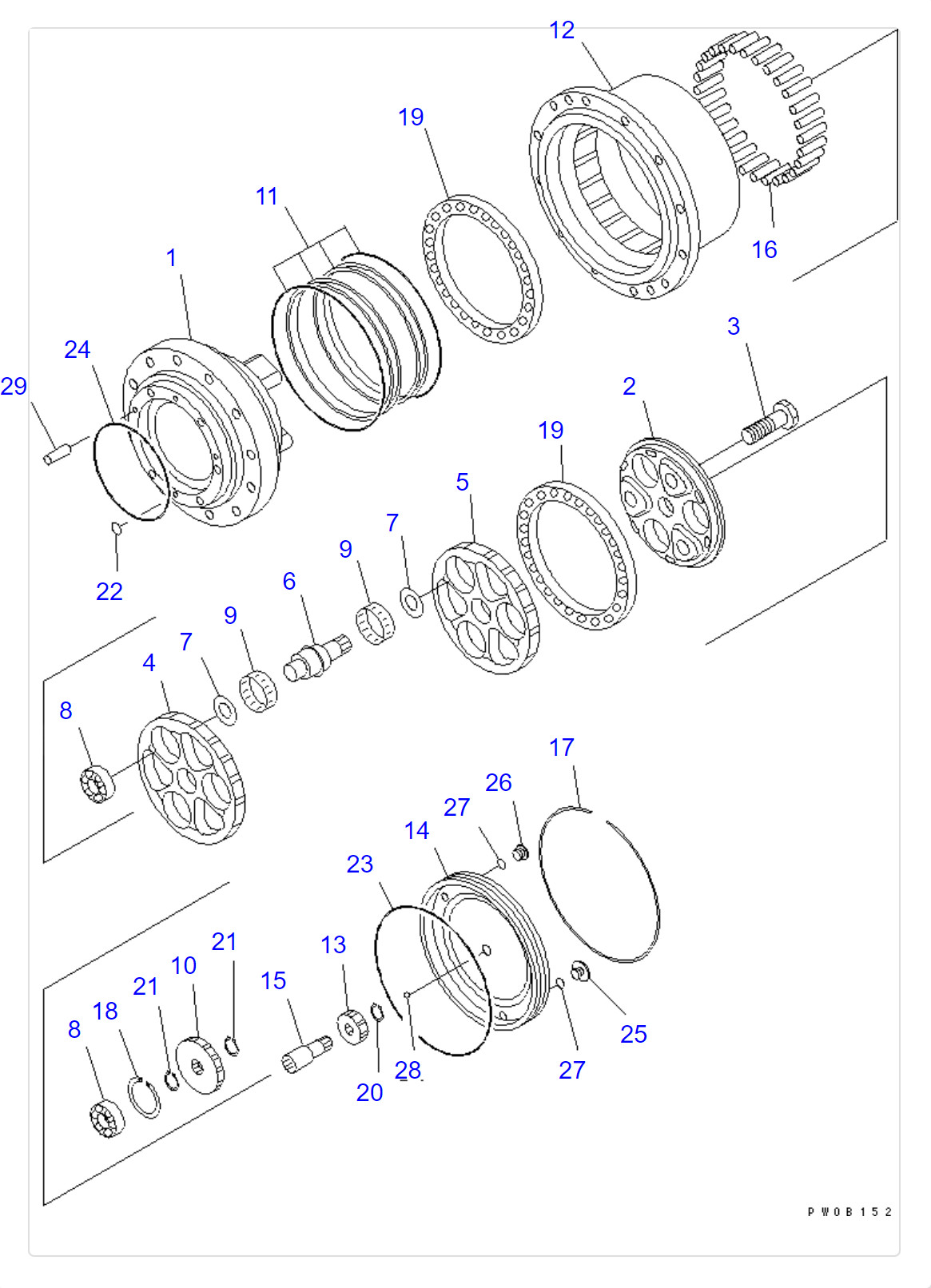

Part Drawing:

Pos.	Part No	Qty	Parts name	Comments
	201-60-73500	[2]	TRAVEL MOTOR ASSY Komatsu	102.04 kg.
			["SN: 58728-UP"] |$1.
	TZ502D1000-00	[1]	FINAL ASSY Komatsu China
			["SN: 58728-UP"] |$3.
	TZ500D1102-00	[1]	SPINDLE KIT Komatsu China
			["SN: 58728-UP"] |$4.
	TZ500D1132-00	[1]	SPINDLE ASSY Komatsu China
			["SN: 58728-UP"] |$5.
3	TZ500D1019-00	[3]	BOLT,REAMER Komatsu China
			["SN: 58728-UP"]
	TZ500D1104-00	[1]	RV GEAR ASSY Komatsu China
			["SN: 58728-UP"] |$9.
	TZ500D1204-00	[1]	RV GEAR KIT Komatsu	4.24 kg.
			["SN: 58728-UP"] |$10.
	TZ502D1107-00	[1]	SPUR GEAR KIT (3 PIECES) Komatsu China
			["SN: 58728-UP"] |$17.
	TZES20423232-B	[1]	FLOATING SEAL ASSY (KIT) Komatsu	1.5 kg.
			["SN: 58728-UP"] |$19.
12	TZ500D1001-00	[1]	HUB Komatsu China
			["SN: 58728-UP"]
13	TZ502D1006-00	[1]	GEAR,INPUT Komatsu China
			["SN: 58728-UP"]
14	TZ500D1008-00	[1]	COVER Komatsu China
			["SN: 58728-UP"]
15	TZ500D1015-00	[1]	SHAFT Komatsu China
			["SN: 58728-UP"]
16	TZ500D1017-00	[28]	PIN Komatsu China
			["SN: 58728-UP"]
17	TZ810B1018-00	[1]	RING Komatsu	0.06 kg.
			["SN: 58728-UP"]
18	TZ860A1013-00	[3]	SNAP RING SET (15 KINDS) Komatsu	0.4 kg.
			["SN: 58728-UP"]
19	TZ500D1021-00	[2]	BEARING Komatsu China
			["SN: 58728-UP"]
20	TZJB2804-S19	[1]	RING,SNAP Komatsu	0.002 kg.
			["SN: 58728-UP"]
21	04064-02512	[6]	RING,SNAP Komatsu	0.002 kg.
			["SN: 58728-UP"]
22	07000-11008	[2]	O-RING (KIT) Komatsu China	0.01 kg.
			["SN: 58728-UP"] analogs:["0700001008", "2016018950"]
23	07000-15230	[1]	O-RING (KIT) Komatsu China	0.03 kg.
			["SN: 58728-UP"] analogs:["0700005230"]
24	TZJW1516-G35-5	[1]	O-RING (KIT) Komatsu China
			["SN: 58728-UP"]
25	TZ410D1033-00	[1]	PLUG Komatsu China
			["SN: 58728-UP"]
26	TZ810B2021-00	[2]	PLUG Komatsu	0.03 kg.
			["SN: 58728-UP"]
27	07000-12014	[3]	O-RING (KIT) Komatsu China	0.01 kg.
			["SN: 58728-UP"] analogs:["0700002014"]
28	04260-00952	[1]	BALL Komatsu	0.004 kg.
			["SN: 58728-UP"] analogs:["890001277"]
29	TZJB1354-8-22	[2]	PIN Komatsu China
			["SN: 58728-UP"]
K.	TZ505D9000-00	[2]	SEAL KIT Komatsu	1.68 kg.
			["SN: 58728-UP"]
