TGFQ PC200-6 6D102 Final Drive Travel Reduction Gearbox Travel Motor Reduce

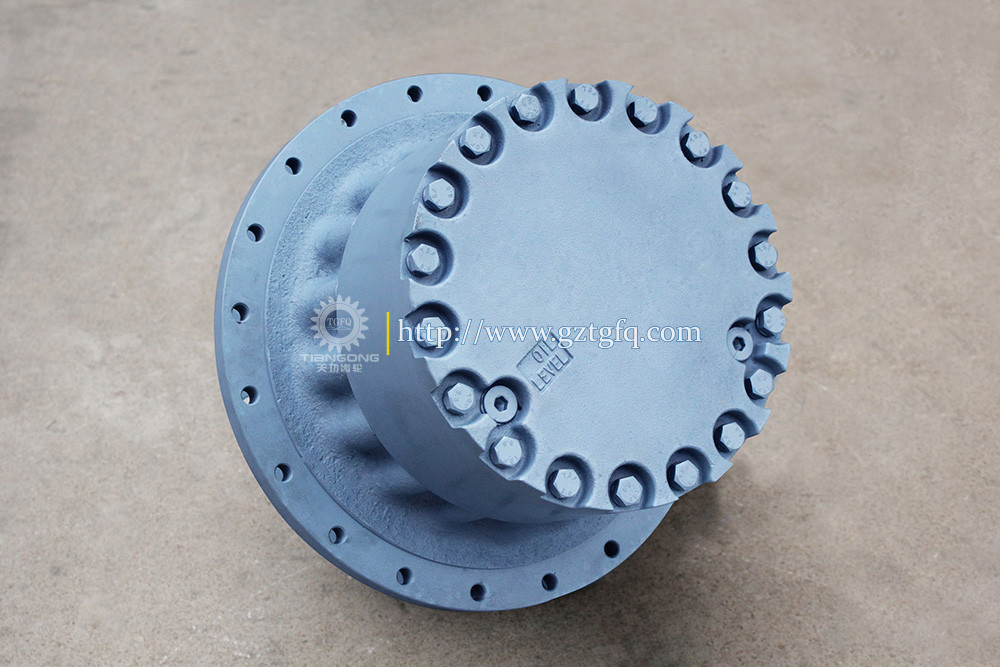

Product Photo:

Drawing:

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00203	[1]	FINAL DRIVE ASSY Komatsu	560 kg.
			["SN: 110673-UP"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700101", "20Y2700102", "20Y2700200", "20Y2700202", "20Y27K1220"] |$1.
	20Y-27-00202	[1]	FINAL DRIVE ASSY Komatsu	560 kg.
			["SN: 98409-110672"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700101", "20Y2700102", "20Y2700200", "20Y27K1220", "20Y2700203"] |$2.
	20Y-27-00201	[1]	FINAL DRIVE ASSY Komatsu	560 kg.
			["SN: 97792-98408"] analogs:["20Y27K1200", "20Y2700204", "20Y2700101", "20Y2700102", "20Y2700200", "20Y2700202", "20Y27K1220", "20Y2700203"] |$3.
	20Y-27-00200	[1]	FINAL DRIVE ASSY Komatsu	560 kg.
			["SN: 91087-97791"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700101", "20Y2700102", "20Y2700202", "20Y27K1220", "20Y2700203"] |$4.
1.	708-8F-00111	[1]	MOTOR ASSY Komatsu	102.801 kg.
			["SN: 110673-UP"] analogs:["7088F00110"]
1.	708-8F-00110	[1]	MOTOR ASSY Komatsu	102.801 kg.
			["SN: 98409-110672"] analogs:["7088F00111"]
1.	708-8F-00061	[1]	MOTOR ASSY Komatsu China
			["SN: 97792-98408"] analogs:["7088F00060"]
		[-1]	(708-8F-00110,20Y-27-22181,20Y-27-22261)
			|$$8.
1.	708-8F-00060	[1]	MOTOR ASSY Komatsu China
			["SN: 91087-97791"] analogs:["7088F00061"]
	150-27-00330	[1]	FLOATING SEAL ASSY Komatsu China	2.99 kg.
			["SN: 99850-UP"] analogs:["1502700029", "1502700410"] |$15.
	150-27-00029	[1]	FLOATING SEAL ASSY Komatsu China	2.99 kg.
			["SN: 83115-99849"] analogs:["1502700330", "1502700410"] |$16.
4.	20Y-27-22181	[1]	HUB Komatsu	78 kg.
			["SN: 98409-UP"]
4.	20Y-27-22180	[1]	HUB Komatsu China
			["SN: 91087-98408"]
5.	20Y-27-22230	[2]	BEARING Komatsu	4.6 kg.
			["SN: 91087-UP"]
6.	20Y-27-22280	[1]	O-RING Komatsu China	0.02 kg.
			["SN: 91087-UP"]
7.	20Y-27-22261	[1]	LOCK Komatsu	5.22 kg.
			["SN: 98409-UP"]
7.	20Y-27-22260	[1]	LOCK Komatsu	4.05 kg.
			["SN: 91087-98408"]
8.	20Y-27-22270	[1]	LOCK Komatsu	0.07 kg.
			["SN: 91087-UP"]
9.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 91087-UP"] analogs:["801014093", "0101051020", "801015108"]
10.	20Y-27-22170	[1]	CARRIER Komatsu China	20.4 kg.
			["SN: 91087-UP"]
11.	20Y-27-22140	[4]	GEAR Komatsu China	3.72 kg.
			["SN: 91087-UP"]
12.	20Y-27-22220	[4]	BEARING Komatsu China	0.3 kg.
			["SN: 91087-UP"] analogs:["20Y2721270"]
13.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 91087-UP"]
14.	20Y-27-21230	[4]	PIN Komatsu	1.54 kg.
			["SN: 91087-UP"]
15.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 91087-UP"]
16.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: 80001-UP"]
17.	20Y-27-22130	[1]	GEAR Komatsu China	1.75 kg.
			["SN: 91087-UP"]
18.	20Y-27-22240	[1]	WASHER Komatsu China	0.03 kg.
			["SN: 91087-UP"]
19.	20Y-27-22150	[1]	GEAR Komatsu	43.7 kg.
			["SN: 91087-UP"] analogs:["20Y2722151"]
20.	20Y-27-22160	[1]	CARRIER Komatsu OEM	6 kg.
			["SN: 91087-UP"]
21.	20Y-27-22120	[3]	GEAR Komatsu China	2.5 kg.
			["SN: 91087-UP"]
22.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 91087-UP"] analogs:["20Y2721260"]
23.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: 80001-UP"]
24.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: 80001-UP"]
25.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 80001-UP"]
26.	20Y-27-22110	[1]	SHAFT Komatsu China	1.4 kg.
			["SN: 91087-UP"] analogs:["20Y2731140"]
27.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: 80001-UP"]
28.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["SN: 91087-UP"]
29.	20Y-27-22190	[1]	COVER Komatsu	17.6 kg.
			["SN: 91087-UP"]
30.	20Y-27-13281	[18]	BOLT Komatsu	0.31 kg.
			["SN: 91087-UP"]
31.	01643-31645	[18]	WASHER Komatsu	0.072 kg.
			["SN: 80001-UP"] analogs:["802170005", "0164301645"]
32.	07049-01012	[2]	PLUG Komatsu	0.001 kg.
			["SN: 91087-UP"]
33.	07044-12412	[2]	PLUG Komatsu	0.09 kg.
			["SN: 80001-UP"] analogs:["0704402412", "R0704412412"]
34.	07002-02434	[2]	O-RING Komatsu China	0.01 kg.
			["SN: 80001-UP"] analogs:["0700212434", "0700213434"]
35.	20Y-27-11582	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: 108386-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
35.	20Y-27-11581	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: 80001-108385"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"]
36.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: 80001-UP"]

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Diagnosis & Maintenance:

• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.

• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.
