DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox from wholesalers

    Buy cheap DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox from wholesalers
    • Buy cheap DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox from wholesalers
    • Buy cheap DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox from wholesalers
    • Buy cheap DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox from wholesalers

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : DH150-7 DH130-5
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1000 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    TGFQ DH150-7 DH130-5 Swing Reduction GearBox 2404-1066A Rotation Slewing Gearbox


    Product
    Model:DH150-7 DH130-5
    Part Name: Excavator Swing Reduction
    Brand: TGFQ
    Place of Origin: Meizhou,China
    Part Number:2404-1066A / K1007357B
    Delivery Methods: Air / Express / Sea
    Process:Heat Treatment
    Packing: Standard exporting packing or as required
    Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

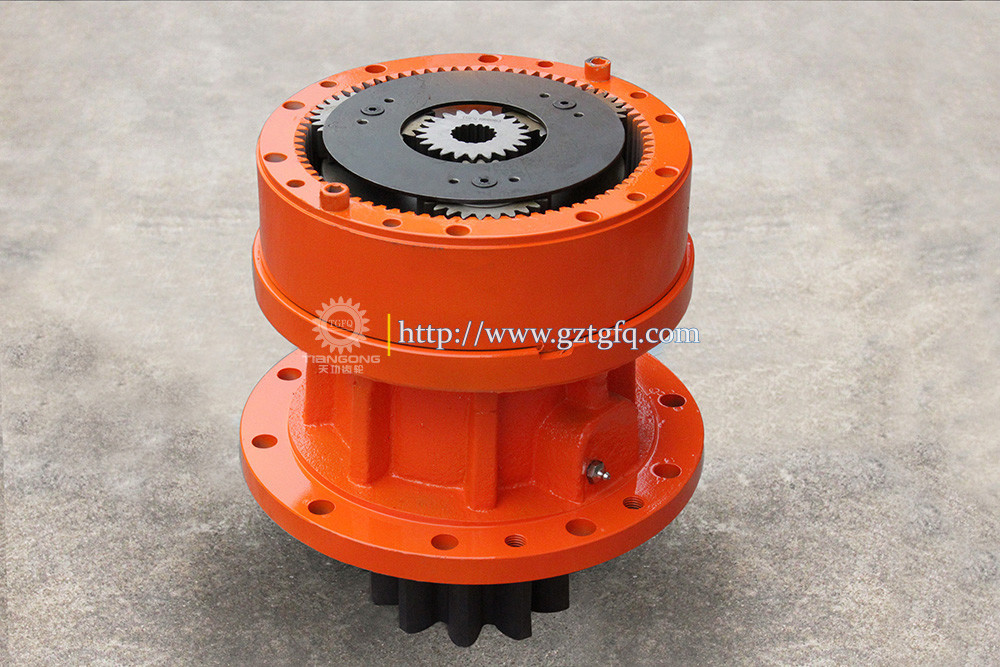

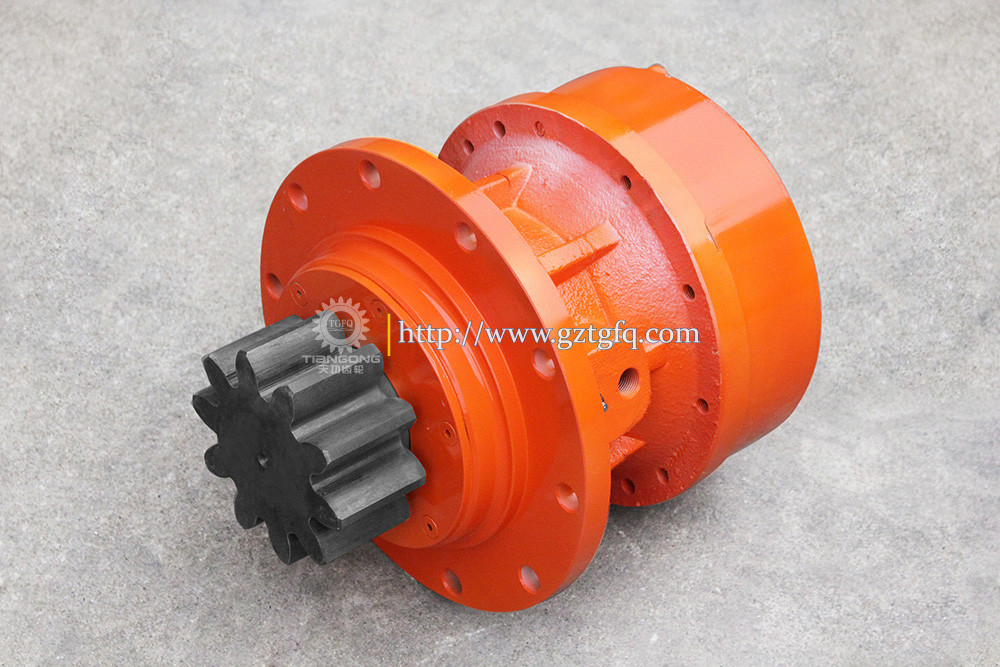

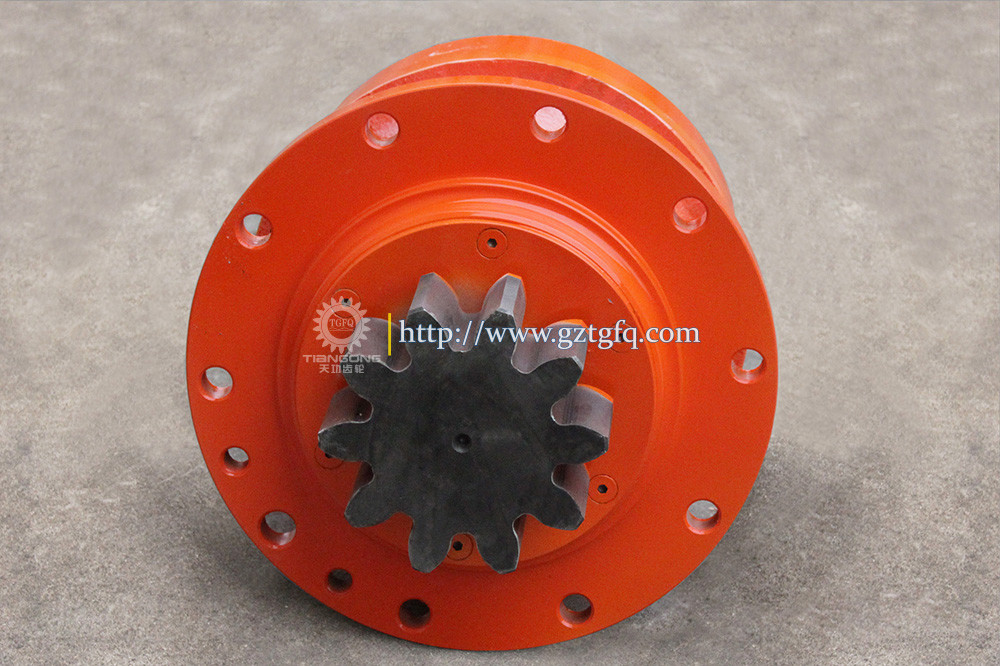

    Product Photo:

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing GearboxDH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing GearboxDH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing GearboxDH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    Drawing:

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    Pos.Part NoQtyParts name
    -.2404-1066A[1]SWING REDUCTION GEAR Komatsu China
     ["SERIAL: 50281-50610", "SERIAL_NO: 50281~50610", "ICA: I", "REP_PNO: 404-00062", "REP_QTY: 1", "desc: REDEUTEUR D'ORIENTATION"]
    -.404-00062[1]SWING REDUCTION GEAR Komatsu China
     ["SERIAL: 50611", "SERIAL_NO: 50611~", "desc: REDEUTEUR D'ORIENTATION"]
    1402-00017[1]CASING Komatsu China
     ["desc: CARTER"]
    2405-00006[1]SHAFT;DRIVE Komatsu China
     ["desc: ARBRE"]
    3104-00019[1]GEAR;RING Komatsu China
     ["desc: PIGNON"]
    4404-00063[4]GEAR;PLANET NO.2 Komatsu China
     ["desc: PIGNON"]
    5404-00064[1]GEAR;SUN NO.2 Komatsu China
     ["desc: PIGNON"]
    6404-00065[3]GEAR;PLANET NO.1 Komatsu China
     ["desc: PIGNON"]
    7404-00066[1]GEAR;SUN NO.1 Komatsu China
     ["desc: PIGNON"]
    8230-00017[1]CARRIER NO.2 Komatsu China
     ["desc: SUPPORT"]
    9230-00018[1]CARRIER NO.1 Komatsu China
     ["desc: SUPPORT"]
    10123-00094[4]PIN ASS'Y NO.2 Komatsu China
     ["desc: BROUCHE"]
    11123-00095[3]PIN ASS'Y NO.1 Komatsu China
     ["desc: BROUCHE"]
    122114-1594[13]WASHER;THUST(B) Komatsu China
     ["desc: RONDELLE"]
    132114-1592[2]WASHER;THUST(A) Komatsu China
     ["desc: RONDELLE"]
    14119-00003[1]BAR;LEVEL Komatsu China
     ["desc: CONDUITE"]
    15182-00009[1]PIPE;LEVEL GAUGE Komatsu China
     ["desc: CONDUITE"]
    16123-00096[2]PIN;KNOCK Komatsu China
     ["desc: BROUCHE"]
    172109-1041[1]BEARING;ROLLER Komatsu China
     ["desc: PALIER"]
    182109-1042[1]BEARING;ROLLER Komatsu China
     ["desc: PALIER"]
    19S2216873[10]BOLT;SOCKET Komatsu China
     ["desc: BOULON A 6 PANS CREUX"]
    20180-00179[1]SEAL;OIL Komatsu China
     ["desc: BAGUE DE HUILE"]
    212181-1116D4[1]PLUG(B) Komatsu China
     ["desc: BOUCHON"]
    222181-1116D2[2]PLUG(A) Komatsu China
     ["desc: BOUCHON"]
    23S5740890[3]PIN;SPRING Komatsu China
     ["desc: BROUCHE"]
    24S6500300[4]RING;RETAINER Komatsu China
     ["desc: BAGUE"]
    25S6500650[1]RING;RETAINER Komatsu China
     ["desc: BAGUE"]
    26115-00037[1]RING;NILOS Komatsu China
     ["desc: BAGUE"]
    27S5740900[4]PIN;SPRING Komatsu China
     ["desc: GOUPILLE ELASTIQUE"]
    28191-00167[2]PLATE;SUPPORT Komatsu China
     ["desc: PLAQUE"]
    29S3453116[6]BOLT;SCREW Komatsu China
     ["desc: BOULON"]

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox


    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox


    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    DH150-7 DH130-5 Swing Reduction Gearbox 2404-1066A Rotation Slewing Gearbox

    FAQ:
    Common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: How long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
