    199-4539 E336D Excavator Parts Swing Gearbox For

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E336D / E330C / E330D
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    199-4539 E336D Excavator Parts Swing Gearbox For

    199-4539 E336D Manufacturing Factory Excavator Parts Swing Gearbox For

    Quick Details

    Model:E336D / E330C / E330D
    Brand: TGFQ
    Part Number: 333-2959 / 199-4539
    Part Name: Excavator swing gearbox without motor
    Material: Steel
    Process: Heat Treatment

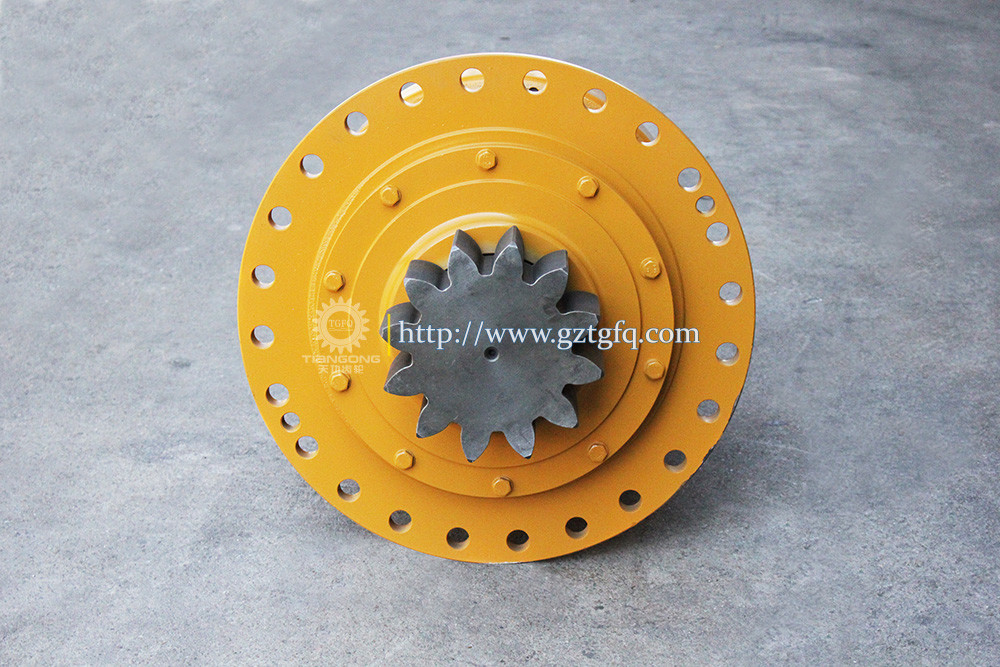

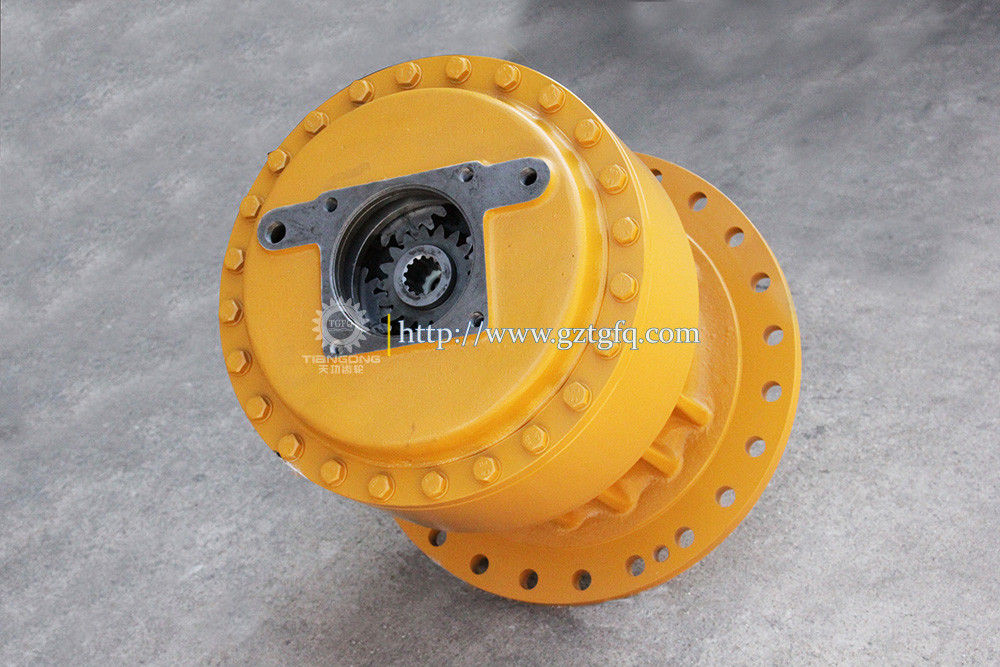

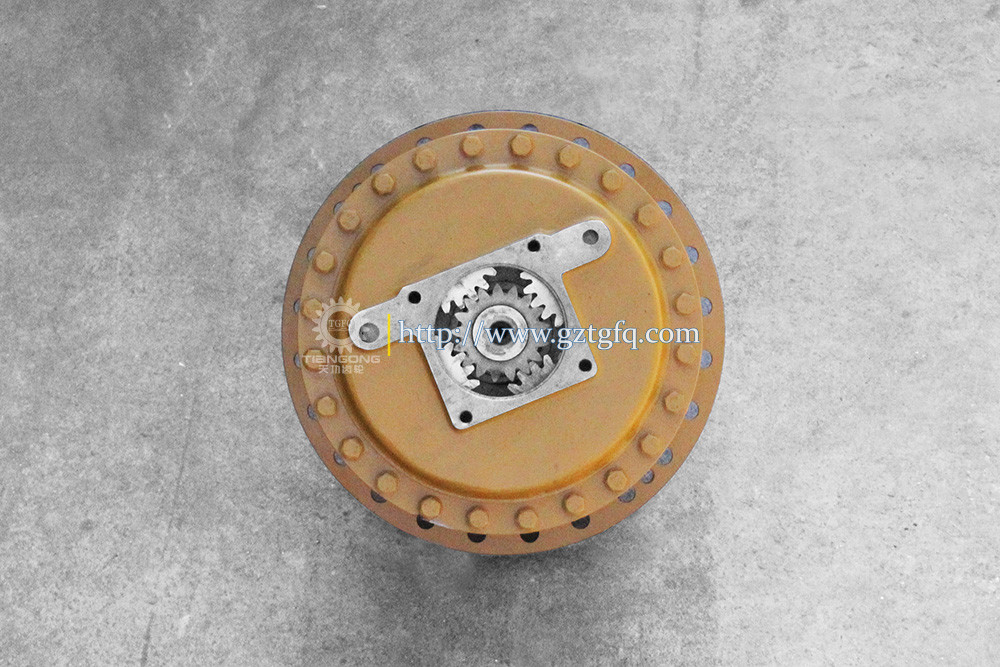

    Product Photo:

    199-4539 E336D Excavator Parts Swing Gearbox For199-4539 E336D Excavator Parts Swing Gearbox For199-4539 E336D Excavator Parts Swing Gearbox For199-4539 E336D Excavator Parts Swing Gearbox For

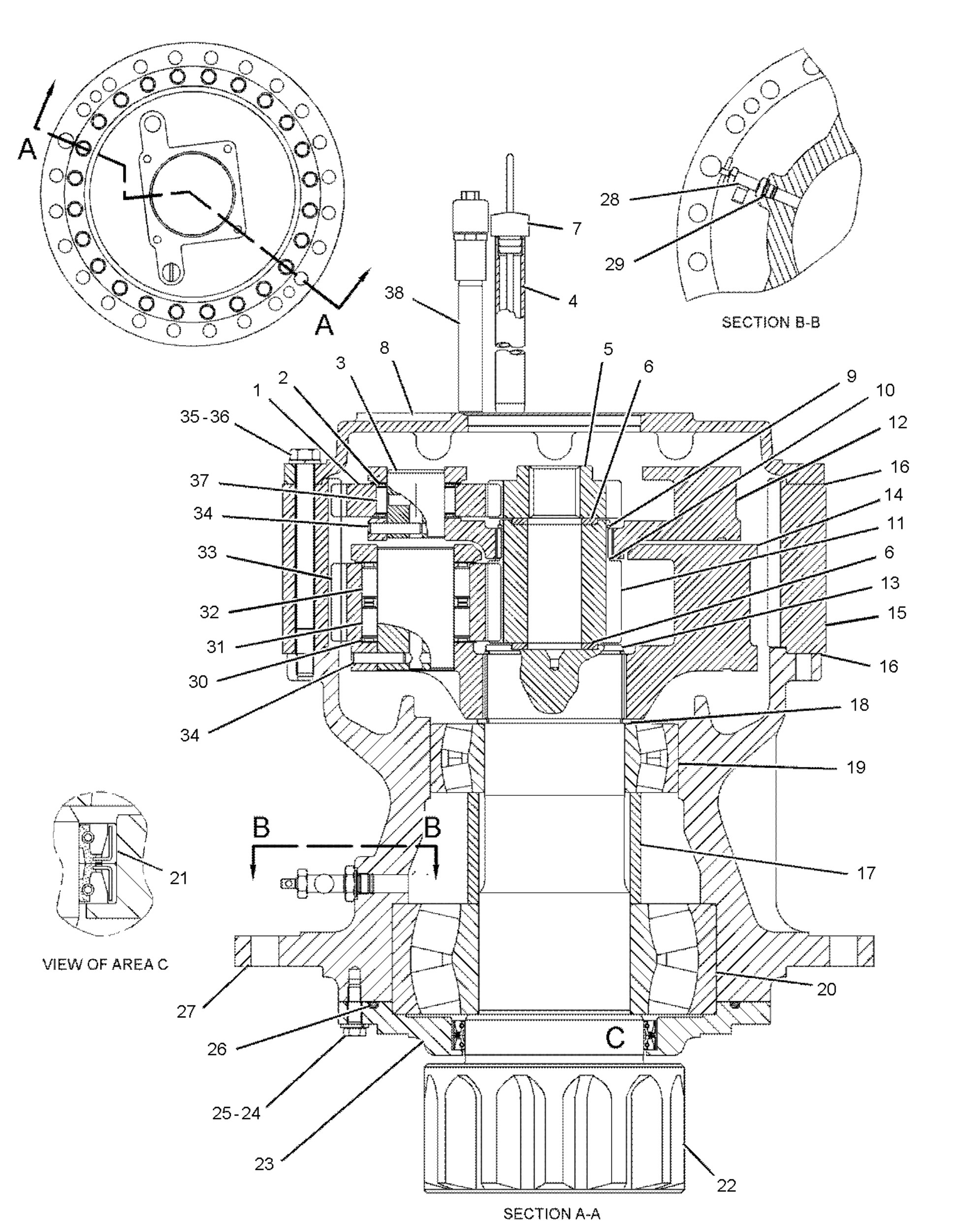

    Drawing:

    199-4539 E336D Excavator Parts Swing Gearbox For

    Pos.Part NoQtyParts name
    1148-4602[4]GEAR-PLANETARY (24-TEETH)
    2094-1528[8]WASHER (53X84X1-MM THK)
    3148-4608[4]SHAFT-PLANETARY
    4114-1399[1]PIPE-GAUGE
    5148-4600[1]GEAR-SUN (17-TEETH)
    67I-7684 M[2]SPACER (50X79.6X6-MM THK)
    7114-1398[1]GAUGE-OIL LEVEL (SWING DRIVE)
    8199-4540[1]COVER-HOUSING
    9096-1441[1]RING-RETAINING
    10093-1730[1]RING-RETAINING
    11148-4601[1]GEAR-SUN (17-TEETH)
    12191-2511[1]CARRIER-PLANETARY
    13114-1322[1]RING-RETAINING
    14148-4607[1]CARRIER-PLANETARY
    15148-4604[1]GEAR-RING (67-TEETH)
    161U-8846 B SEALANT-GASKET
    17171-9413[1]SPACER (140.5X160X103.2-MM THK)
    18110-7149[1]RING-RETAINING
    199U-8693[1]BEARING-ROLLER
    207I-7619[1]BEARING-ROLLER
    21128-9170[2]SEAL-LIP TYPE
    22148-4605[1]SHAFT-PINION
    237I-7611[1]CAGE
    248T-4183 M[10]BOLT (M12X1.75X40-MM)
    258T-4223[10]WASHER-HARD (13.5X25.5X3-MM THK)
    265M-4454[1]SEAL-O-RING
    27191-2524[1]HOUSING
    286V-7238[1]VALVE-SHUTOFF
    293K-0360[1]SEAL-O-RING
    30148-4611[8]WASHER (71.3X112X1-MM THK)
    31191-2514[8]BEARING AS
    32148-4609[4]SHAFT-PLANETARY
    33148-4603[4]GEAR-PLANETARY (24-TEETH)
    34099-5194[8]PIN-SPRING
    358T-6383 M[24]BOLT (M16X2X200-MM)
    369X-8257[24]WASHER (17.5X30X3.5-MM THK)
    37191-2513[4]BEARING AS-ROLLER
    38227-6221 C[1]BREATHER AS (SWING DRIVE)
     227-6215[1]BOSS (1/4-18-THD)
     4H-6112[1]BREATHER (SWING DRIVE)
     267-6785[1]PIPE
     B USE AS REQUIRED
     C CHANGE FROM PREVIOUS TYPE
     M METRIC PART

    Heat treatment technology is an important element of products,Our cost is six times higher than that of our opponents. We insist on using Austrian Aichelin heat treatment system to ensure the of heat treatment process. The perfect combination of meterials and advanced technology, make our high-quality gear a solid foundation.


    199-4539 E336D Excavator Parts Swing Gearbox For


    199-4539 E336D Excavator Parts Swing Gearbox For


    199-4539 E336D Excavator Parts Swing Gearbox For


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    199-4539 E336D Excavator Parts Swing Gearbox For

    199-4539 E336D Excavator Parts Swing Gearbox For

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Are you just trading company or factory?
    A: we have our own factory and have 23 years of production experience in the excavated gear industry.
