227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 227-6113 E349D Excavator Swing Gearbox 296-6250 E345D from wholesalers

    Buy cheap 227-6113 E349D Excavator Swing Gearbox 296-6250 E345D from wholesalers
    • Buy cheap 227-6113 E349D Excavator Swing Gearbox 296-6250 E345D from wholesalers
    • Buy cheap 227-6113 E349D Excavator Swing Gearbox 296-6250 E345D from wholesalers
    • Buy cheap 227-6113 E349D Excavator Swing Gearbox 296-6250 E345D from wholesalers

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E 345D / E 349D / E 345B
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    227-6113 E349D Swing Gear Box 296-6250 E345D Swing Gearbox

    Quick Details

    Model:E345D / E349D / E345B
    Brand: TGFQ
    Part Number: 227-6113 / 227-6114 / 296-6250
    Motor No.:M5X180
    Part Name: Excavator swing gearbox without motor
    Material: Steel
    Process: Heat Treatment
    1. Long life.

    2. High strength.

    3. Easier for maintenance.

    4. More accurate.

    5. Anti-corrosion.

    6. Suitable for various environments.

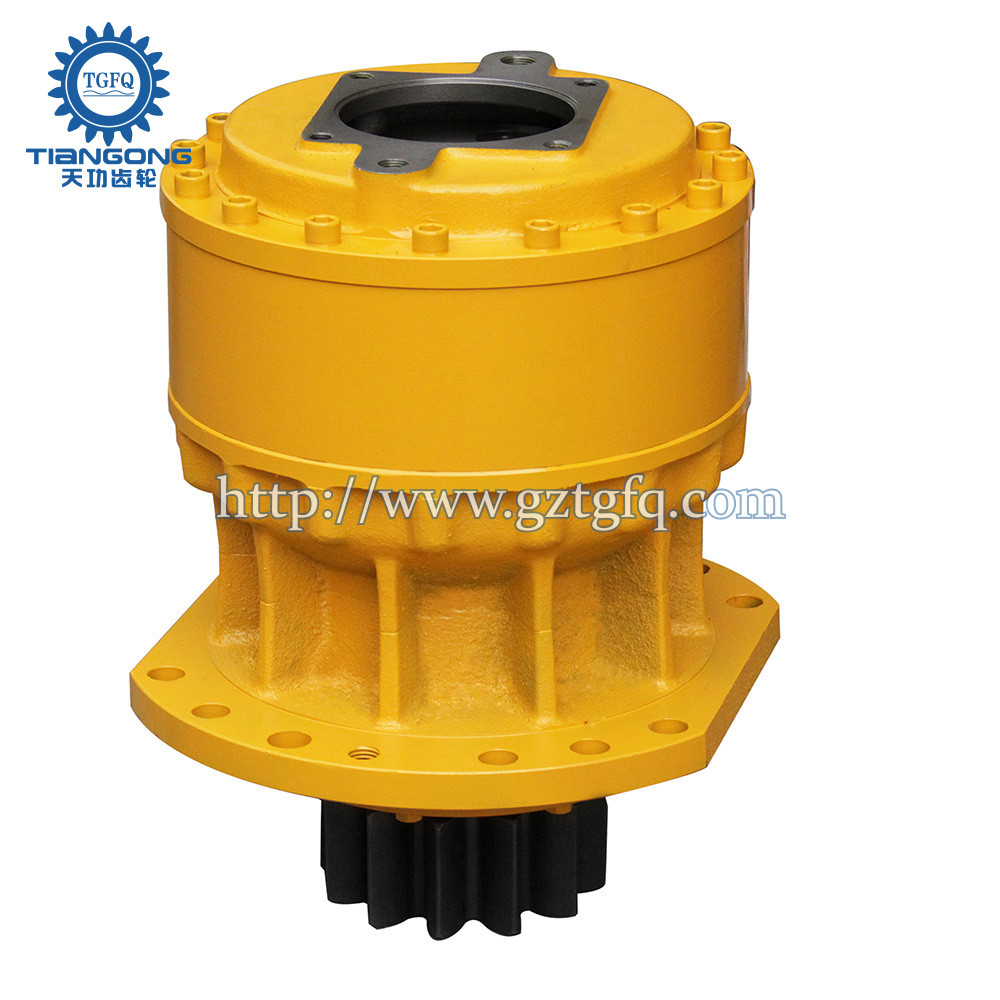

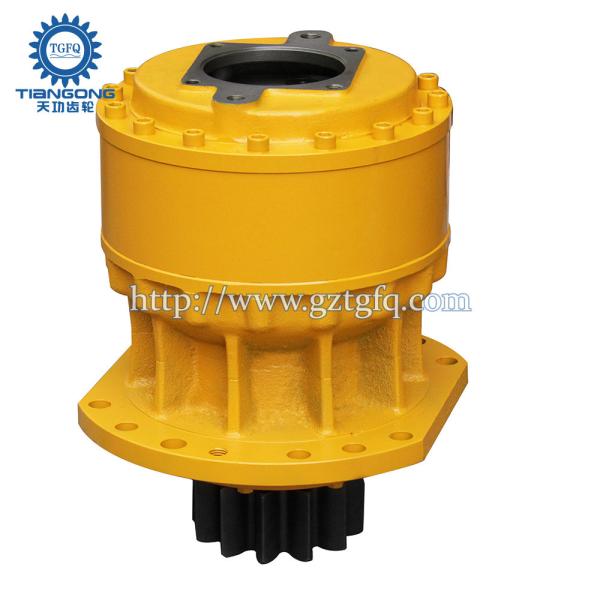

    Product Photo:

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    Drawing:

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    Pos.Part NoQtyParts name
    14I-1422 I[1]HOSE AS
    24I-7464[4]GEAR-PLANETARY (25-TEETH)
    34I-7466[4]GEAR-PLANETARY (23-TEETH)
    44I-7467[1]GEAR-RING (72-TEETH)
    56V-7238[1]VALVE-SHUTOFF (SWING DRIVE)
    67I-7728[1]CARRIER-PLANETARY
    77Y-0597[1]SPACER-SPECIAL
    87Y-1238[1]CARRIER
    9093-1730[2]RING-RETAINING
    10094-1509[4]SHAFT-PLANETARY
    11094-1528[8]WASHER (53X84X1-MM THK)
    12095-1806[1]BEARING-ROLLER
    13096-2653[1]RING-RETAINING
    14096-4339[1]BEARING AS-ROLLER
     4D-7956[1]RACE-ROLLER BEARING
     4L-0734[1]RACE & ROLLER AS
    15110-7216[1]GEAR-SUN (24-TEETH)
    16114-1383[4]SHAFT-PLANETARY
    17114-1398[1]GAUGE-OIL LEVEL (SWING DRIVE)
    18114-1399[1]PIPE-GAUGE
    19114-1401[1]COVER-HOUSING
    20114-1403[1]CAGE
    21114-8234[1]BREATHER (SWING DRIVE)(1/2-14-NPTF-THD)
       -OR-
     4H-6112[1]BREATHER (SWING DRIVE)
       (1/4-18 NPTF-THD)
    22136-2802[2]CONNECTOR
    23136-2803[2]CLIP
    24136-2804[1]BOSS (1/2-14-NPTF-THD)
       -OR-
     227-6215[1]BOSS (1/4-18-THD)
    25169-5534[1]HOUSING
    26169-5535[1]GEAR-SUN (20-TEETH)
    27227-6108[1]SHAFT-PINION
    28093-1731[1]RING-RETAINING
    29094-0584[8]WASHER (40.3X72X1-MM THK)
    30199-4582[4]BEARING AS
    31095-0886[4]PIN-SPRING
    32095-0891[4]PIN-SPRING
    33135-9044[2]SEAL-LIP TYPE
    343K-0360[1]SEAL-O-RING
    355P-2235[1]SEAL-O-RING
    36191-2513[8]BEARING AS-ROLLER
    377Y-0595[1]SPACER (58X79.6X6-MM THK)
    387Y-1434[1]SPACER (40X69.5X6-MM THK)
    398T-4183 M[8]BOLT (M12X1.75X40-MM)
    408T-4223[10]WASHER-HARD (13.5X25.5X3-MM THK)
    418T-4244 M[1]NUT (M12X1.75-THD)
    428T-4956 M[1]BOLT (M12X1.75X35-MM)
    438T-6385 M[16]BOLT (M16X2X180-MM)
    449X-8257[16]WASHER (17.5X30X3.5-MM THK)
    451U-8846 B SEALANT-GASKET
     B USE AS REQUIRED
     I REFER TO HYDRAULIC INFORMATION SYSTEM
     M METRIC PART

    Packaging Details:
    1.According to orders,pack the spare parts one by one by oil paper.
    2.Put them into small carton boxes one by one.
    3.Put the packed small carton boxes into bigger carton boxes one by one.
    4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
    5. Goods is packed by oil paper and plastic bags inside.
    6.Using wooden case package.
    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D


    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D


    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: do you have a factory?
    A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
