E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear from wholesalers

    Buy cheap E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear from wholesalers
    • Buy cheap E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear from wholesalers
    • Buy cheap E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear from wholesalers
    • Buy cheap E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear from wholesalers

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E320D2 320D2 E323D2 323D2
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    Excavator Parts E320D2 320D2 Swing Gearbox 378-9517 Reduction Gear

    Quick Details

    Model:E320D2 320D2 E323D2 323D2
    Brand: TGFQ
    Part Number: 378-9517
    Part Name: Excavator Swing Gearbox Without Motor
    Weight: 240KG
    Process: Heat Treatment

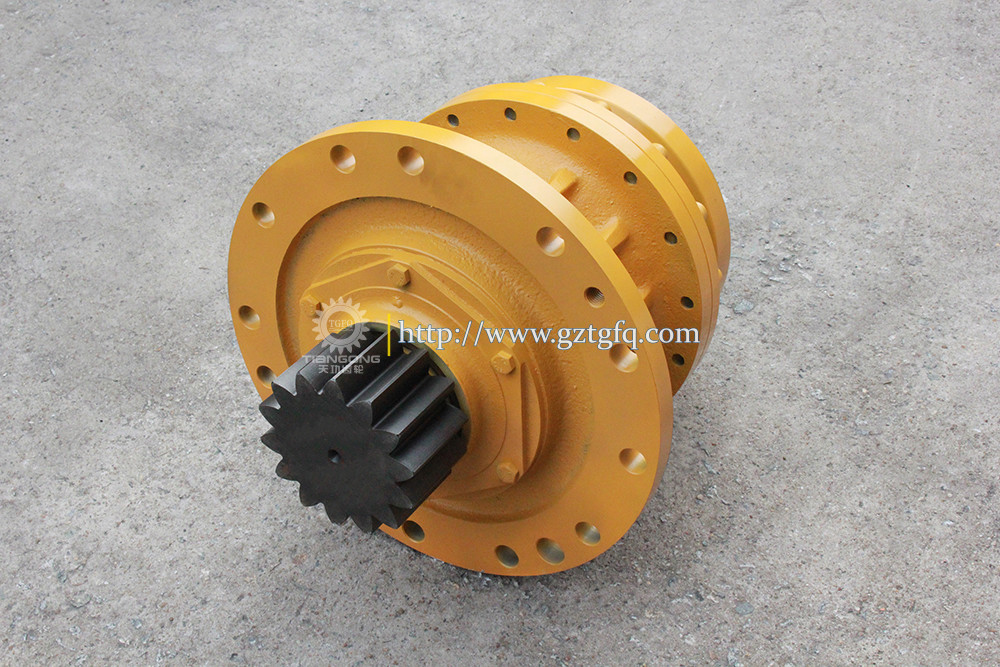

    Product Photo:

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction GearE320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction GearE320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    Drawing:

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    378-9517 DRIVE GP-SWING
    S/N XBA1-UP
    PART OF 464-8726, 465-7766 DRIVE GP-SWING

    Pos.Part NoQtyParts name
    16V-7238[1]VALVE-SHUTOFF
    2094-0611[6]WASHER (47.3X76X1-MM THK)
    3148-4636[1]SHAFT-PINION
    4148-4640[1]RING-RETAINING
    5171-9383[1]SPACER
    6199-4561[2]SEAL-LIP TYPE
    7227-6228[1]CAGE
    8367-8364[1]GEAR-SUN (20-TEETH)
    9367-8365[3]GEAR-PLANETARY (26-TEETH)
    10367-8367[2]RING-RETAINING
    11367-8368[1]GEAR-SUN (23-TEETH)
    12367-8369[3]GEAR-PLANETARY (25-TEETH)
    13378-9513[3]SHAFT
    14378-9514[1]CARRIER-PLANETARY
    15378-9515[1]GEAR-RING (73-TEETH)
    16378-9516[1]HOUSING
    17378-9609[1]CARRIER AS
    18451-2182[6]WASHER-HARD (13.5X25.5X3-MM THK)
    19453-3447 M[6]BOLT (M12X1.75X40-MM)
    20094-0584[6]WASHER (40.3X72X1-MM THK)
    21509-6676[3]PIN-SPRING
    22095-1022[1]BEARING-ROLLER
    23148-4642[1]SEAL-O-RING
    24148-4643[1]BEARING
    25296-6268[6]BEARING AS-ROLLER
    26346-5215[3]BEARING AS
    273K-0360[1]SEAL-O-RING
    287I-7623[1]SPACER (52X69.5X6-MM THK)
    297Y-1434[1]SPACER (40X69.5X6-MM THK)
    308T-0348 M[16]BOLT-SOCKET HEAD (M16X2X50-MM)
    318T-4240[3]RING-RETAINING
    329X-8268[16]WASHER (17.5X30X3.5-MM THK)
     1U-8846 BF SEALANT-GASKET
     B USE AS REQUIRED
     F NOT SHOWN
     M METRIC PART


    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear


    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear


    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    E320D2 320D2 Excavator Swing Gearbox 378-9517 Reduction Gear

    FAQ:
    Common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: How long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: Do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: If I only know the excavator model, but can not offer parts No., what should I do ?
    A: If possible, you can send us pictures of old products, nameplate or the size for referenc.


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
