    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E324D E325C E329D
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    E324D E325C E329D Swing Carrier Assembly For Apply To Excavator Swing Reduction Gearbox

    Quick Details

    Model:E324D E325C E329D
    Brand: TGFQ
    Part Number: 191-2693
    Part Name: Excavator swing gearbox without motor
    Weight: 299KG
    Process: Heat Treatment

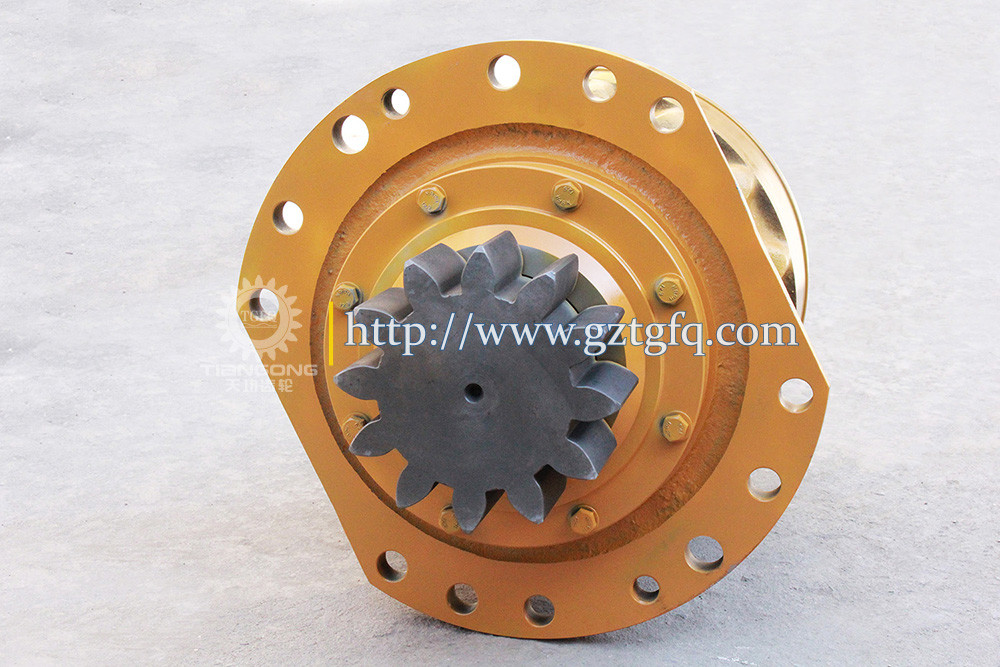

    325C 329D Swing Gearbox Photo:

    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    Drawing:

    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    Pos.Part NoQtyParts name
    14I-7466[4]GEAR-PLANETARY (23-TEETH)
    2227-6221[1]BREATHER AS (SWING DRIVE)
    2A.4H-6112[1]BREATHER (SWING DRIVE)
    2B.227-6215[1]BOSS (1/4-18-THD)
    2C.267-6785[1]PIPE
    36V-7238[1]VALVE-SHUTOFF
    47I-7728[1]CARRIER-PLANETARY
    57Y-0225[3]SHAFT-PLANETARY
    67Y-1434[2]SPACER (40X69.5X6-MM THK)
    7093-1730[2]RING-RETAINING
    8093-1731[1]RING-RETAINING
    9094-0611[6]WASHER (47.3X76X1-MM THK)
    10094-1528[8]WASHER (53X84X1-MM THK)
    11136-2940[1]BEARING
    12096-2653[1]RING-RETAINING
    13136-2904[1]BEARING
    14114-1383[4]SHAFT-PLANETARY
    15114-1398[1]GAUGE-OIL LEVEL (SWING DRIVE)
    16114-1399[1]PIPE-GAUGE
    17114-1401[1]COVER-HOUSING
    18191-2696[1]CAGE
    19135-9044[2]SEAL-LIP TYPE
    20169-5617[1]GEAR-SUN (18-TEETH)
    21169-5618[3]GEAR-PLANETARY (27-TEETH)
    22191-2579[1]CARRIER-PLANETARY
    23171-9280[1]GEAR-RING (72-TEETH)
    24191-2694[1]SHAFT-PINION
    25191-2695[1]HOUSING
    26171-9283[1]GEAR-SUN (24-TEETH)
    27171-9375[1]SEAL-O-RING
    28191-2697[1]SPACER (110X140X90.1-MM THK)
    29509-6676[7]PIN-SPRING
    303K-0360[1]SEAL-O-RING
    318J-8879[1]SEAL-O-RING
    327Y-0252[3]BEARING AS-ROLLER
    33191-2513[8]BEARING AS-ROLLER
    34453-3447 M[8]BOLT (M12X1.75X40-MM)
    35451-2182[8]WASHER-HARD (13.5X25.5X3-MM THK)
    36453-2843 M[16]BOLT (M16X2X180-MM)
    37451-2175[16]WASHER-HARD (17.5X30X3.5-MM THK)
     1U-8846 BF SEALANT-GASKET
     B USE AS REQUIRED
     F NOT SHOWN
     M METRIC PART

    Packaging Details:
    1.According to orders,pack the spare parts one by one by oil paper.
    2.Put them into small carton boxes one by one.
    3.Put the packed small carton boxes into bigger carton boxes one by one.
    4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
    5. Goods is packed by oil paper and plastic bags inside.
    6.Using wooden case package.
    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox


    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox


    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    191-2693 E324D E325C E329D Swing Carrier Assembly For Excavator Swing Reduction Gearbox

    FAQ:
    Common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: How long is your delivery time?
    A: In stock: 1-2 working days.
    Not in stock: 3-10 working days.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
