Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Ask Lasest Price
Brand Name :	TGFQ
Model Number :	DX80R DX75 E80
Price :	200.00-800.00USD
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	1000 pcs / month
Delivery Time :	1-3days

Add to Cart

Product Details
Company Profile

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Factory Direct Sales Cheap Doosan Excavator Parts DX80R DX75 Swing Reduction Gearbox

Product
Model:DX80R DX75 E80
Brand: TGFQ
Part Number: 170303-00032A / K1042873
Part Name: Excavator Swing Reduction
Place of Origin: Guangzhou,China
Process: Heat Treatment
Feature: 1. Long life. 2. High strength. 3. Easier for maintenance 4. More accurate. 5. Anti-corrosion. 6. Suitable for various environments.

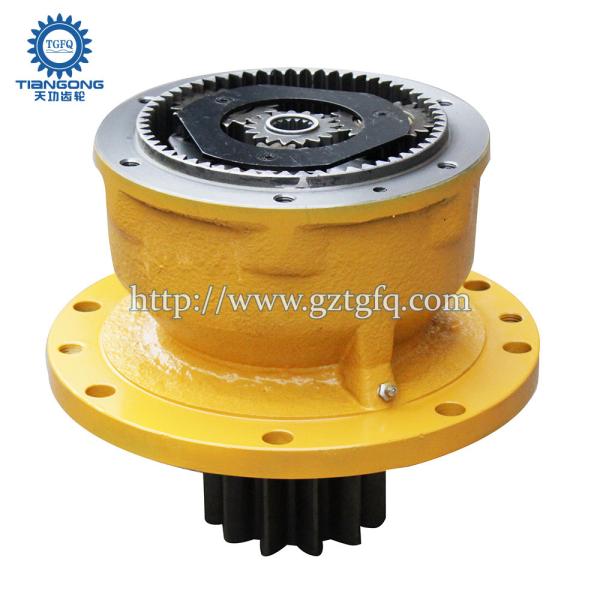

Product Photo:

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Drawing:

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Pos.	Part No	Qty	Parts name	Comments
*.	K9006619	[1]	SEAL KIT;SWING MOTOR
-.	170303-00032	[1]
-.	K1042873	[1]	MOTOR;SWING	170303-00032
1	*NA00342	[1]	CASING
11	K9006589	[1]	. BALL;THRUST
12	K9005957	[1]	. WASHER
13	K9006590	[3]	. ROLLER
14	2.114-00862	[2]	. WASHER
15	K9006591	[1]	. SPRING
16	S6510420	[1]	RING
17	K9006612	[1]	. BLOCK;CYLINDER
18	1.412-00064	[2]	PLATE;FRICTION
19	1.412-00073	[1]	PLATE;MATING
2	K9006595	[1]	CASING;VALVE
20	K9006594	[1]	PISTON;BRAKE
21	K9006592	[16]	SPRING;BRAKE
22	K9006596	[1]	PLATE;VALVE
23	K9006202	[2]	PLUNGER
24	K9006203	[2]	SPRING;CHECK
25	K9006180	[2]	PLUG
26	S5700621	[1]	PIN;PARALLEL
27	2180-1217D142	[1]	O-RING
28	2180-1217D147	[1]	O-RING
29	2180-1217D148	[1]	O-RING
3	K9006593	[1]	SHAFT;DRIVE
30	2180-1217D153	[1]	O-RING
31	S8000181	[2]	O-RING
31	S8000161	[2]	O-RING
32	S8000111	[2]	O-RING
33	S2215061	[4]	BOLT;SOCKET M12X1.75X25
34	S2206261	[3]	BOLT;SOCKET
35	2181-1950D1	[2]	PLUG
36	2181-1116D4	[1]	PLUG
37	S6500250	[4]	RING;RETAINING
38	K9006221A	[2]
38	K9006221	[2]	VALVE;RELLEF	K9006221A
39	K9006609A	[1]
39	K9006609	[1]	VALVE;BRAKE	K9006609A
4	K9006220	[1]	BEARING;ROLLER
40	K9006610	[1]	GAUGE;OIL LEVEL
5	K9006604	[1]	BEARING;BALL
6	K9006605	[1]	SEAL;OIL
7	K9006603A	[1]	PLATE;SHOE
7	K9006603	[1]	PLATE;SHOE	K9006603A
8	K9006588	[1]	. PLATE;RETAINER
9	K9006611	[1]	PISTON ASSY
R1.	*NA00348	[1]	CASING;GEAR
R11.	K9006599	[3]	RING;INNER NO.2
R12.	K9006190A	[3]	RING,INNER;NO 1
R12.	K9006190	[3]	RING(NO.1);INNER	K9006190A
R13.	K9006608	[3]	BEARING;NEEDLE
R14.	K9006219	[3]	BEARING;NEEDLE
R15.	K9006600	[3]	GEAR;PLANET NO.2
R16.	K9006192A	[3]	GEAR,PLANETARY;(NO.1)
R16.	K9006192	[3]	GEAR(NO.1);PLANET	K9006192A
R17.	K9006601	[1]	GEAR;SUN;NO.2
R18.	K9006194	[1]	GEAR,SUN;NO.1
R19.	K9006196	[1]	WASHER(NO.1);THRUST
R2.	K9006602A	[1]	SHAFT,PINION
R2.	K9006602	[1]	SHAFT;PINION	K9006602A
R20.	K9006197	[1]	PLATE;THRUST
R21.	K9006402	[9]	WASHER;THRUST
R22.	K9006403	[3]	SCREW
R23.	2181-1116D3	[1]	PLUG;HEX. SOCKET
R24.	2181-1116D1	[2]	PLUG
R25.	S2215271	[6]	BOLT;SOCKET
R26.	K9006204	[3]	WASHER(NO.3);THRUST
R3.	K9006694	[1]	BEARING;TAPER ROLLER
R3.	K9006215	[1]	BEARING;TAPER ROLLER	K9006694
R4.	K9006606	[1]	BEARING;TAPER ROLLER
R5.	K9006607	[1]	SEAL;OIL
R6.	K9006597	[1]	COVER;BEARING
R7.	K9006187	[2]	COLLAR;HALF
R8.	K9006598A	[1]
R8.	K9006598	[1]	CARRIER NO.2	K9006598A
R9.	K9006188	[1]	CARRIER(NO.1)

Main Features:

Specifiions
1.Completely interchangeable with original
2.Very competitive price
3.Low-noise, high efficiency, high reliability, long life
4.Small size, high power density
5.Excellent oil absorption properties.
6.For engineering machinery, maritime and boat and industrial
machinery etc.
7.For open-loop Swashplate axial piston pump.
8.Continuous working pressure up to 280bar, the instantaneous
maximum working pressure up to 350bar.
9.Flow is proportional to drive speed and displacement, and can be
achieved by adjusting the swashplate angle stepless variable
10.There are constant pressure, constant-power constant pressure,
constant-voltage constant-flow and other control method, and the
control response speed
11.Drive shaft can withstand the axial and radial loads
12.For pass-axis structure, and for multi-loop system

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts

Q: How long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
