Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | TGFQ |
Model Number : | EX60-5 / EX75-5 / EX70-5 / EX80-5 |
Price : | 200.00-800.00USD |
Payment Terms : | L/C, T/T, D/P, D/A |
Supply Ability : | 1000 pcs / month |
Delivery Time : | 1-3days |
Hitachi EX60-5 Swing Gearbox 4398053 Excavator Spare Parts EX60-5 Swing Reducer
Quick Details |
Model:EX60-5 / EX75-5 / EX70-5 / EX80-5 |
Brand: TGFQ |
Part Number: 4398053 / 4397256 |
Part Name: Excavator Reducer |
Process: Heat Treatment |

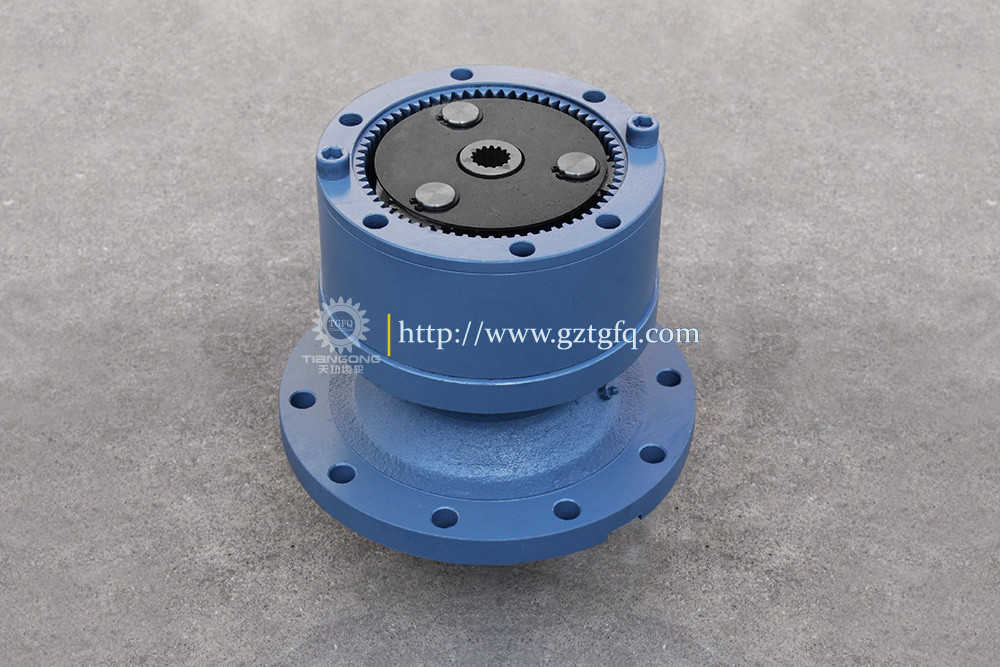

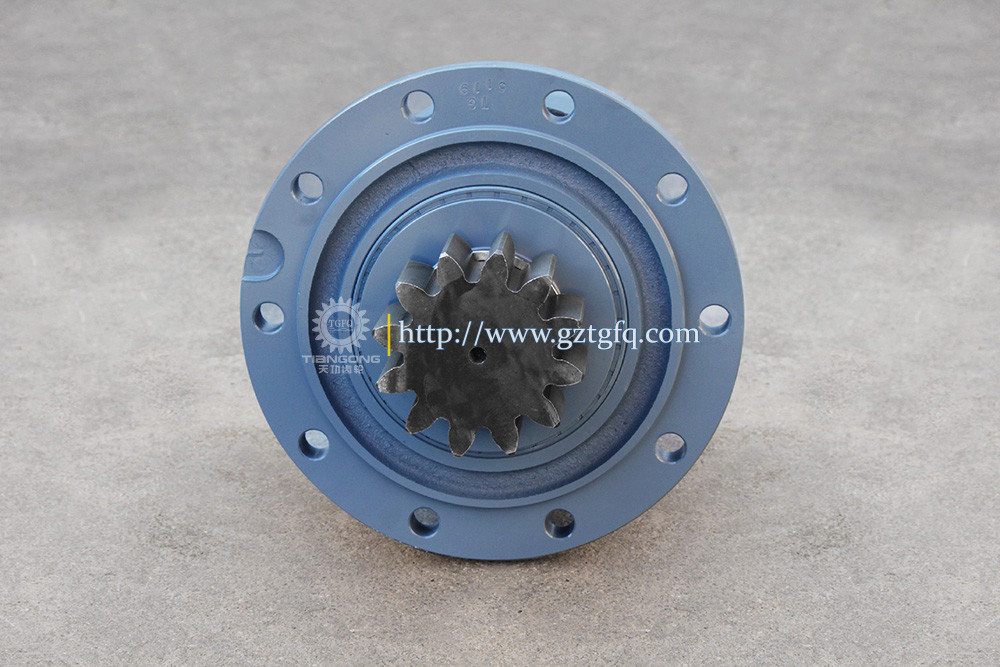

Excavator Reducer Photo:
Drawing:
Pos. | Part No | Qty | Parts name |
4398053 | [1] | T.MISSION | |
1 | M341403 | [8] | BOLT;SOCKET |
2 | 4397235 | [1] | PLATE |
3 | 4397236 | [1] | GEAR;SUN |
4 | 4397246 | [1] | CARRIER |
5 | 4397237 | [1] | GEAR;SUN |
6 | 4397238 | [1] | PLATE;THRUST |
7 | 4397239 | [1] | CARRIER |
9 | 4397240 | [1] | NUT |
10 | 4397241 | [1] | BRG.;ROL. |
11 | 4395197 | [1] | SEAL;OIL |
14 | 4397242 | [1] | BRG.;ROL. |
18 | 4397244 | [3] | GEAR;PLANETARY |
19 | 4397245 | [3] | BRG.;NEEDLE |
22 | 4397247 | [1] | GEAR;RING |
23 | 4397248 | [3] | GEAR;PLANETARY |
24 | 4267081 | [3] | PLATE;THRUST |
25 | 4134502 | [3] | PIN;SPRING |
26 | 4397249 | [3] | PIN |
27 | 4397250 | [1] | PIPE;DRAIN |
28 | 94-2012 | [1] | PLUG |
29 | 94-2010 | [2] | PLUG |
30 | 4397251 | [1] | HOUSING |
31 | 4397252 | [1] | SEAL;DUST |
32 | 4397253 | [1] | GUIDE |
33 | 4397254 | [1] | SHAFT;PROP. |
34 | 942517 | [3] | RING;RETAINING |
35 | 4397255 | [1] | COVER |
115 | 4397243 | [1] | CAP |
116 | 4255227 | [1] | PIPE |
300 | 4397256 | [1] | SWING DEVICE(WITHOUT MOTOR) |
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if
you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we
will offer the correct item.
Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
![]() |
