    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EX120-5 / EX135UR-5
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy

    Hitachi 9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy Waliking Reducer

    Quick Details

    Model:EX120-5 / EX135UR-5
    Brand: TGFQ
    Part Number: 9148921 / 9148942
    Part Name: Hydraulic Swing Gearbox
    Process: Heat Treatment

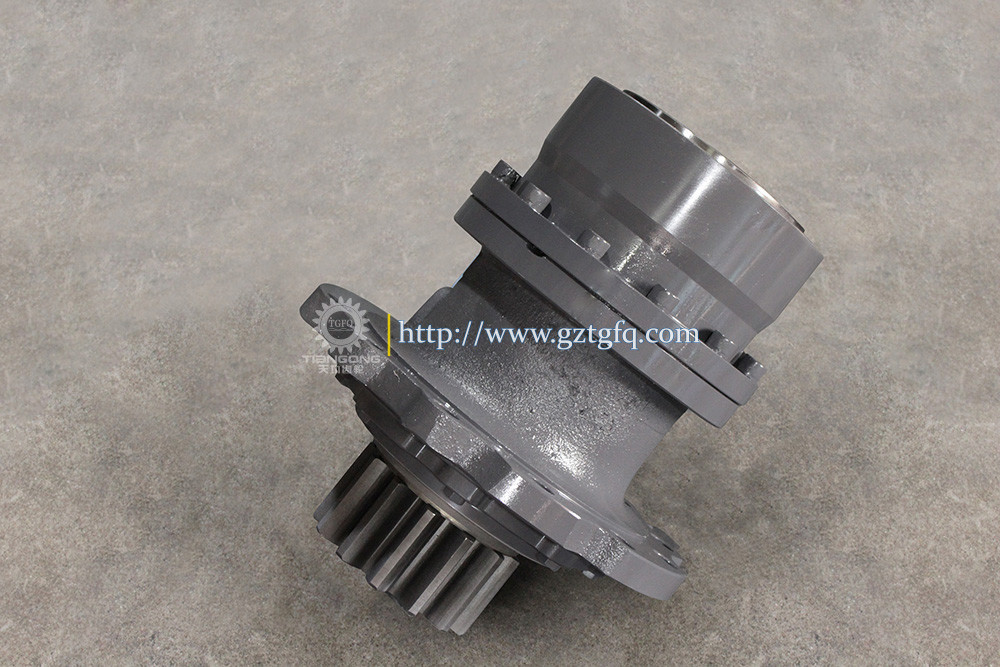

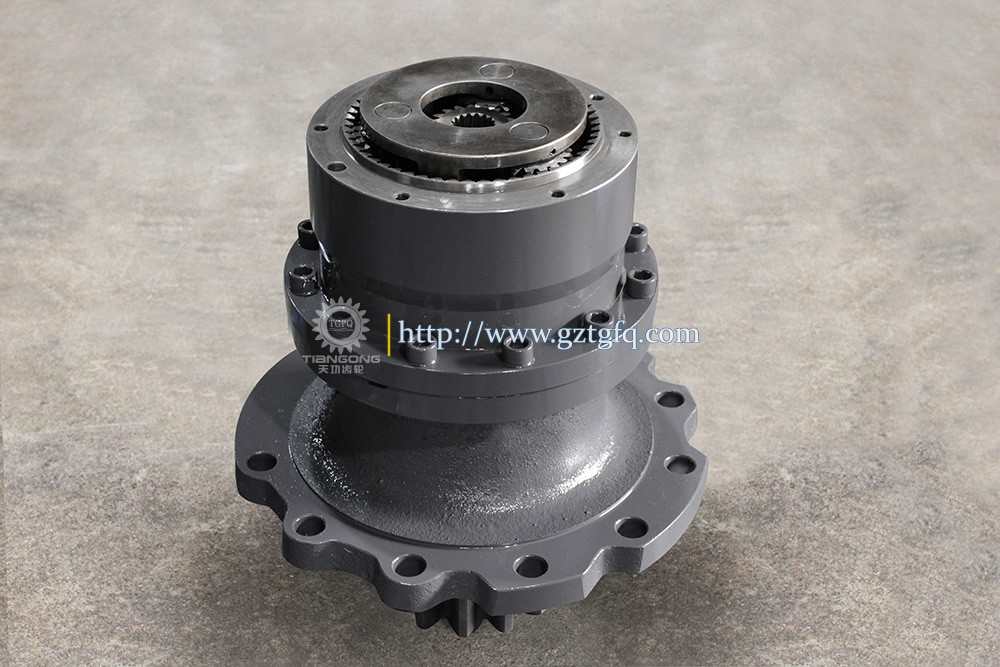

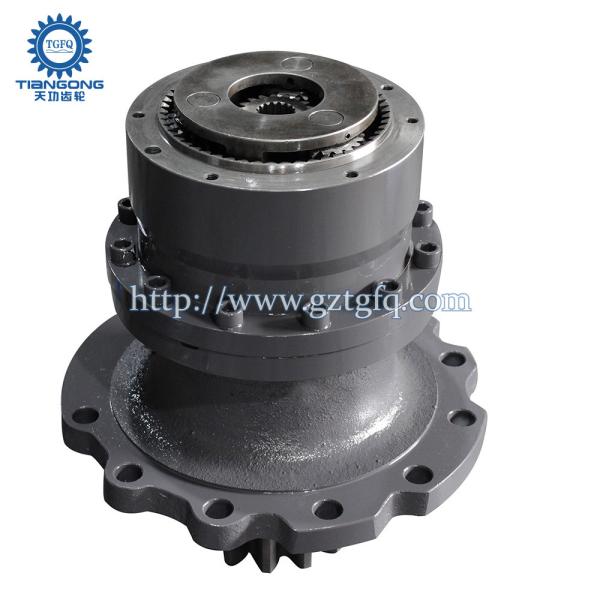

    Hydraulic Swing Gearbox Photo:

    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy

    Drawing:

    Hitachi machinery list:

    EX100-5
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX100-5 JPN
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX100M-5
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX120-5
    SWING DEVICE : » 9148921 SWING DEVICE
    EX120-5 JPN
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX120-5HG
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX120-5LV JPN
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX120-5X
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    SWING DEVICE : » 9148921 SWING DEVICE
    EX120-5Z
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX120SS-5
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX125WD-5
    SWING DEVICE : » 9148921 SWING DEVICE
    EX130H-5
    SWING DEVICE : » 9148921 SWING DEVICE
    EX130H-5 JPN
    SWING DEVICE : » 9148921 SWING DEVICE(WITHOUT MOTOR)
    EX130K-5
    EX135USR
    SWING DEVICE : » 9148921 SWING DEVICE
    EX135USRK
    SWING DEVICE : » 9148921 SWING DEVICE
    ZX125W
    SWING DEVICE : » 9148921 SWING DEVICE
    Pos.Part NoQtyParts nameComments
    12036830[1]SHAFT;PROP.Y 2028036
    12028036[1]SHAFT;PROP.
    24244693[1]SLEEVE
    3A811100[1]O-RING
    44248609[1]BRG.;SPH.ROL.
    64244691[1]SEAL;OILY 4424512
    64424512[1]SEAL;OIL
    74247567[1]O-RING
    83058620[1]COVER
    91020380[1]HOUSING
    11J011035[8]BOLT;SEMS
    124293424[1]BRG.;SPH.ROL.
    13991350[1]RING;RETAINING
    142036804[1]CARRIER
    164258089[1]PLATE;THRUST
    179742788[3]GEAR;PLANETARY
    184266255[6]PLATE;THRUST
    194337638[3]PIN
    214116308[6]PIN;SPRING
    222036811[1]GEAR;RING
    23M341440[12]BOLT;SOCKET
    243069697[1]GEAR;SUN
    253069725[3]GEAR;PLANETARY
    262036832[1]CARRIER
    274176070[1]PLATE;THRUST
    294269480[6]PLATE;THRUST
    304330377[3]BRG.;NEEDLE
    324337637[3]PIN
    353069727[1]GEAR;SUN
    368050210[1]PIPE
    3794-2012[1]PLUG
    608065302[1]COVER(FOR TRANSPORTATION)
    61J011050[8]BOLT;SEMS(FOR TRANSPORTATION)
    6294-2011[1]PLUG(FOR TRANSPORTATION)
    1004330219[1]MOTOR;OIL
    102927488[1]RING;RETAINING
    1044264452[1]PIPE
    1064255227[1]PIPE
    1074298608[1]CAP
    1083053093[1]NAME-PLATE
    109M492564[2]SCREW;DRIVE
    110M341025[7]BOLT;SOCKET
    1113074223[1]GAUGE;LEVEL
    2009148921[1]SWING DEVICE(WITHOUT MOTOR)

    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy
    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy


    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy


    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy

    9148921 EX120 Swing Motor EX120-5 Swing Gearbox Assy

    FAQ:
    Common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: How can I pay the order?
    A: We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.


    Q: Do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
