    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EX200-1 / EX220-1
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    Quick Details

    Model:EX200-1 / EX220-1
    Brand: TGFQ
    Part Number: 9083734
    Part Name: Excavator swing gearbox without motor
    Process: Heat Treatment

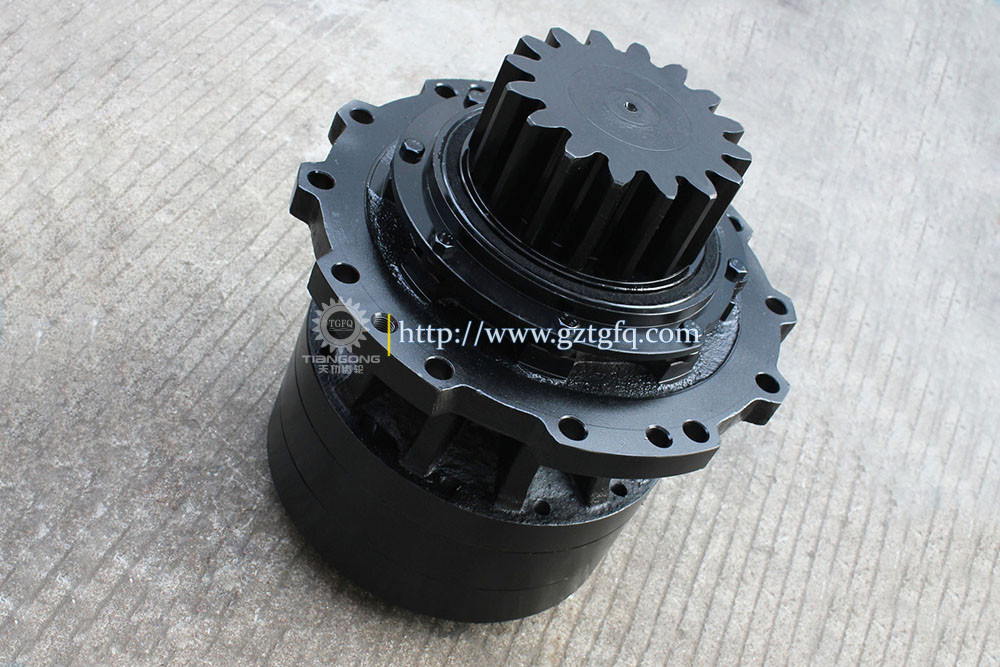

    Product Photo:

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing GearboxHitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing GearboxHitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

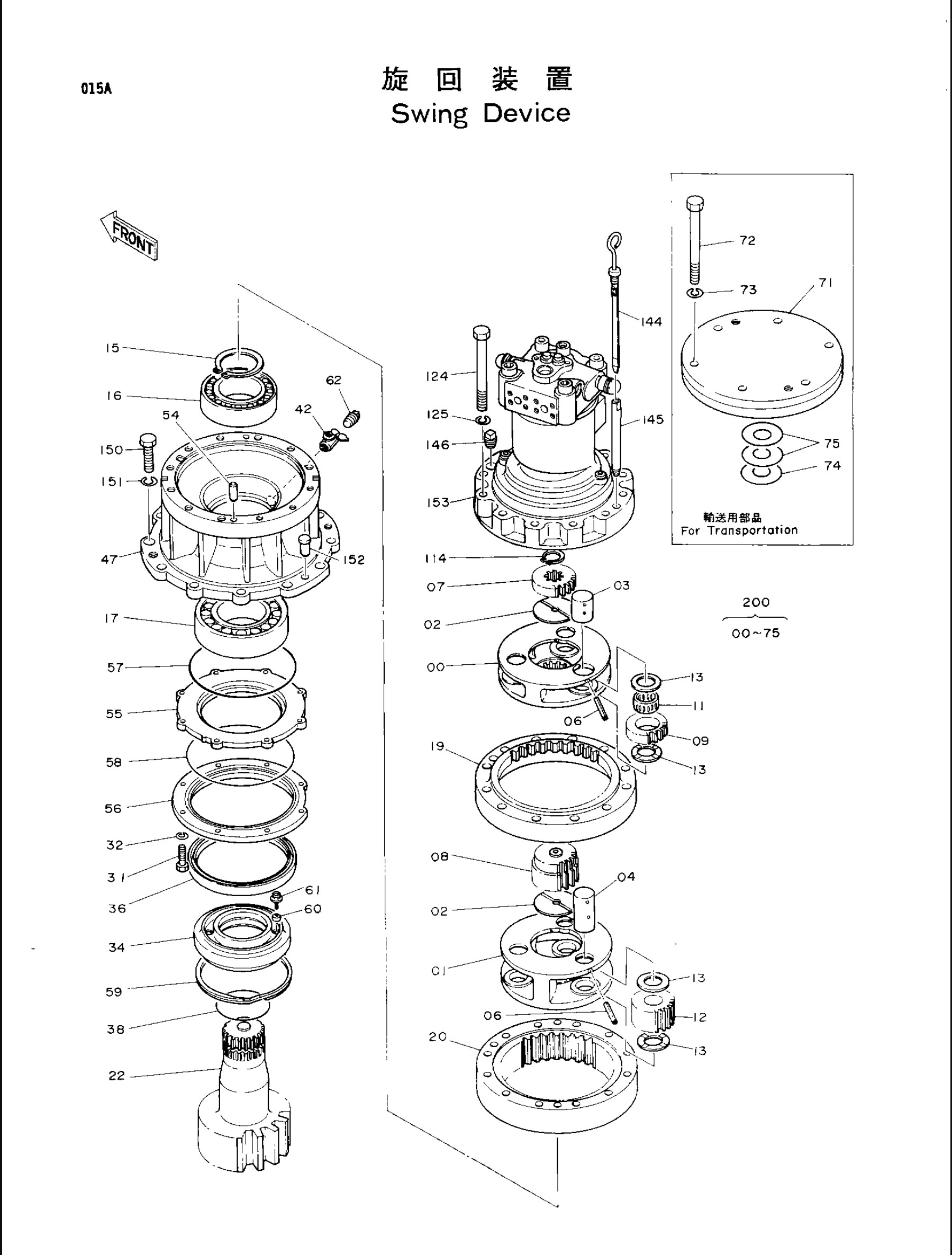

    Drawing:

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    Pos.Part NoQtyParts name
    01010673[1]CARRIER
    11011450[1]CARRIER
    24187590[2]PLATE;THRUST
    34187588[3]PIN
    44244694[3]PIN
    6986954[6]PIN
    73035168[1]GEAR;SUN
    83039317[1]GEAR;SUN
    93035171[3]GEAR;PLANETARY
    114187318[3]BRG.;NEEDLE
    129727123[3]GEAR;PLANETARY
    134187591[12]PLATE;THRUST
    15942480[1]RING;SNAP
    164504706[1]BRG.
    174508194[1]BRG.
    192024897[1]RING;GEAR
    202023937[1]GEAR;INTERNAL
    222023937[1]GEAR;INTERNAL
    31J901240[8]BOLT
    32A590912[8]WASHER;SPRING
    342024621[1]SLEEVE
    364187681[1]SEAL;OIL
    38A811120[1]O-RING
    424194712[1]COCK
    471011686[1]HOUSING
    54J401640[2]PIN;KNOCK
    552025179[1]COVER
    562024625[1]COVER
    574210325[1]O-RING
    584204138[1]O-RING
    594204748[1]RING;RETAINING
    604204644[2]MAGNET
    614204645[2]SCREW
    6294-2024[1]PLUG
    718043499[1]COVER(FOR TRANSPORTATION)
    72J911814[6]BOLT(FOR TRANSPORTATION)
    73A590918[6]WASHER;SPRING(FOR TRANSPORTATION)
    744232537[1]SHIM(FOR TRANSPORTATION)
    754232696[3]SHIM(FOR TRANSPORTATION)
    114959499[1]RING;SNAP
    124J911813[1]BOLT
    125A590918[12]WASHER;SPRING
    1443043290[1]GAUGE;LEVEL
    1454229787[1]PIPE
    14694-2025[1]PLUG
    150J932065[12]BOLT
    151A590920[12]WASHER;SPRING
    1524080398[2]NOCK PIN
    1534224991[1]MOTOR;OIL
    2009083734[1]SWING;DEVICE

    Packaging Details:
    1.According to orders,pack the spare parts one by one by oil paper.
    2.Put them into small carton boxes one by one.
    3.Put the packed small carton boxes into bigger carton boxes one by one.
    4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
    5. Goods is packed by oil paper and plastic bags inside.
    6.Using wooden case package.
    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox


    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox


    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    Hitachi Excavator Swing Drive Reducer 9083734 EX200-1 EX220-1 Swing Gearbox

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: do you have a factory?
    A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
