Excavator LQ32W00011F1 Planetary Motor Reduction SK250-8 SK260-8
Swing Gearbox
Quick Details |
| Model: SK250-8 SK260-8 |
| Brand: TGFQ |
| Part Number:LQ32W00011F1 |
| Motor Number: LQ15V00015F2 |
| Part Name: Swing Reduction |
| Process: Heat Treatment |
| Delivery Methods: By Air/ By Express/ By Sea |

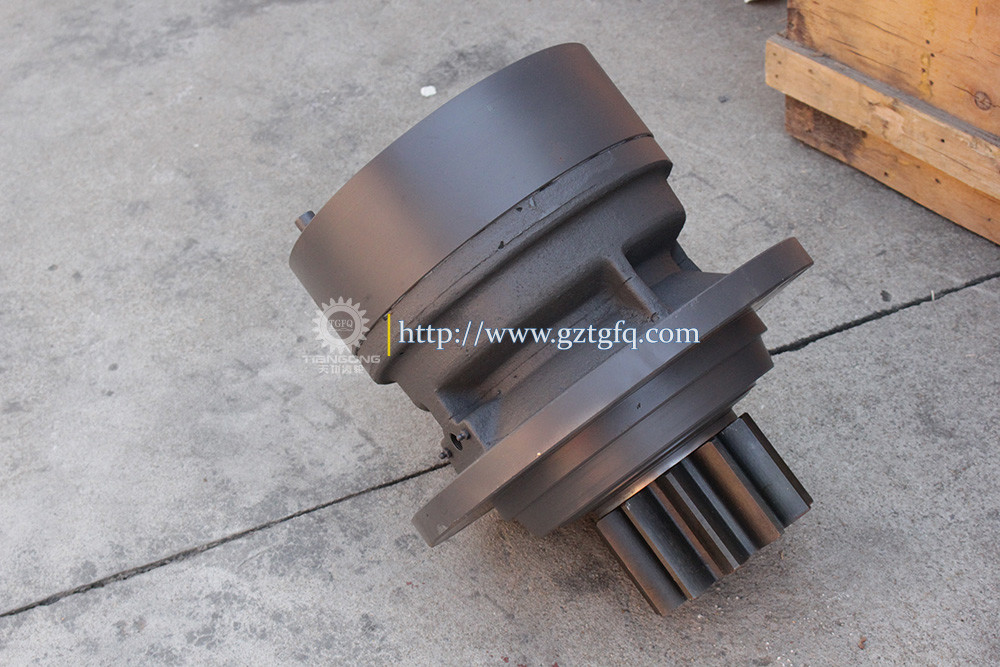

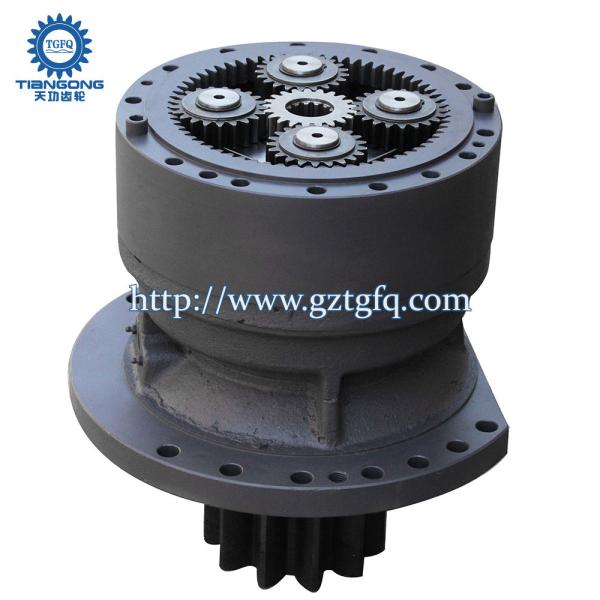

Product Photo:
Drawing:
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
| . . | LQ15V00015F2 | [1] | HYDRAULIC MOTOR,151CC | KOB ASSY-Swing |
| 1 | LQ15V00015S001 | [1] | SNAP RING | KOB |
| 2 | LQ15V00015S002 | [1] | OIL SEAL | KOB SPRING |
| 3 | LQ15V00015S003 | [1] | ROLLER BEARING | KOB ROLLER |
| 4 | LQ15V00015S004 | [1] | SPRING SEAT | KOB SPRING |
| 5 | LQ15V00015S005 | [1] | PLATE | KOB |
| 6 | LQ15V00015S006 | [1] | PLATE | KOB |
| 7 | NSS | [9] | NOT SOLD SEPARAT | CON PISTON |
| 8 | LQ15V00015S008 | [3] | PLATE | KOB |
| 9 | LQ15V00015S009 | [3] | PLATE | KOB |
| 10 | LQ15V00015S010 | [1] | O-RING | KOB Superseded by part number: 45Z91D91 |
| 11 | LQ15V00015S011 | [1] | PISTON | KOB PISTON |
| 12 | LQ15V00015S012 | [1] | O-RING | KOB |
| 13 | LQ15V00015S013 | [19] | SPRING | KOB |
| 14 | LQ15V00015S014 | [2] | PISTON | KOB |
| 15 | 2436U1309S41 | [3] | CAP | KOB PLUG |
| 16 | ZD12P01100 | [3] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 17 | 2441U455S53 | [2] | PIN | KOB |
| 18 | LQ15V00015S018 | [4] | WASHER, LOCK | KOB |
| 19 | LQ15V00015S019 | [4] | RING | KOB |
| 20 | LQ15V00015S020 | [4] | BUSHING | KOB |
| 21 | LQ15V00015S021 | [1] | PLATE | KOB |
| 22 | LQ15V00015S022 | [1] | NEEDLE BEARING,45mm ID x 33mm OD x 20mm W | KOB NEEDLE |
| 23 | LQ15V00015S023 | [1] | RING | KOB RETAINING |
| 24 | NSS | [1] | NOT SOLD SEPARAT | CON CYLINDER |
| 25 | NSS | [1] | NOT SOLD SEPARAT | CON CASE |
| 26 | LQ15V00015S026 | [1] | RING | KOB COLLAR |
| 27 | LQ15V00015S027 | [1] | SNAP RING | KOB RETAINING |
| 28 | LQ20V00001F1 | [2] | HYDRAULIC VALVE | KOB |
| 29 | LQ15V00015S029 | [1] | O-RING,183.74mm ID x 3.53mm Width | KOB |
| 32 | NSS | [1] | NOT SOLD SEPARAT | CON COVER |
| 33 | LQ22V00002F1 | [2] | HYDRAULIC VALVE | KOB RELIEF |
| 35 | ZS23C16060 | [4] | SCREW,Hex Socket Head, M16 x 60mm | KOB M16x2.0x60mm |
| 36 | 2441U962S45 | [2] | CHECK VALVE | KOB |
| 37 | 2441U962S46 | [2] | SPRING | KOB |
| 38 | 2441U962S48 | [2] | PLUG | KOB |
| 39 | ZD85P02600 | [2] | BACK-UP RING | KOB ID 26 x OD 32 x Th 1.25mm |
| 40 | LP15V00002S027 | [1] | PLUG | KOB |
| 41 | PH15V00004S013 | [2] | PISTON | KOB |
| 42 | PH15V00004S012 | [2] | RING | KOB |
Our service:
1. We have advanced technoledge .
2. Quick delivery and competitive price.
3. The larger quantity you order, the better price and faster
delivery we can supply.
4. We have a professional team to offer professional service for
you.
5. We can offer used and new, good quality, made in china parts to
you.
6. All parts can check with part number, all parts can order follow
part number.
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare
parts with in the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 22 years of production
experience in the excavated gear industry.
