Modern Techniques SK460-8 Reducer Swing Drive Gearbox For Excavator
Quick Details |
| Model: SK460-8 SK480-8 |
| Brand: TGFQ |
| Part Number: LS32W00012F1 / LS15V00024F1 |
| Part Name: Swing Reduction |
| Process: Heat Treatment |
| Delivery Methods: By Air/ By Express/ By Sea |

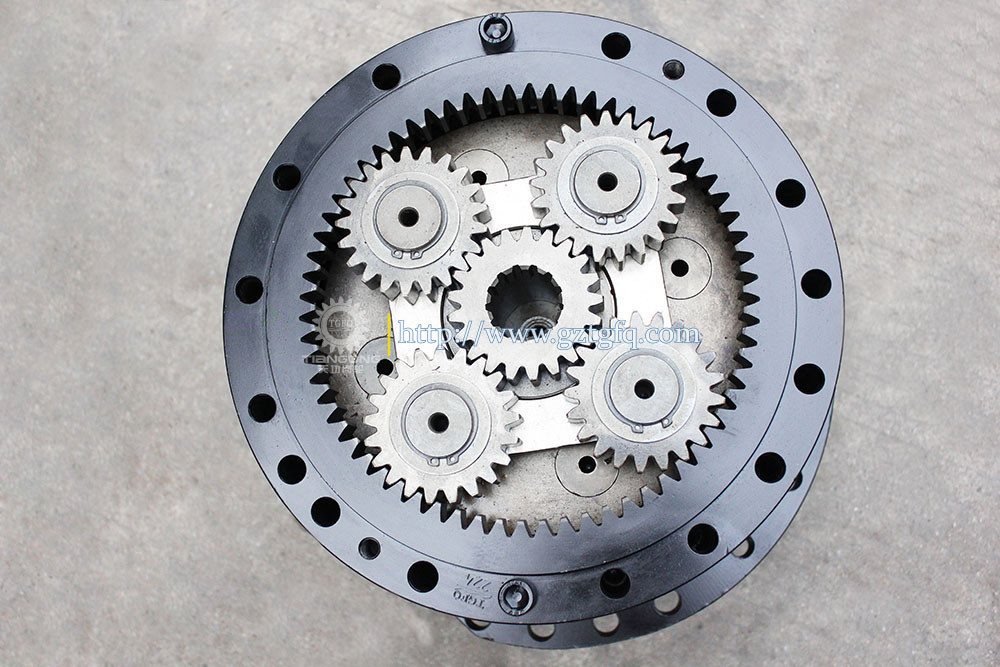

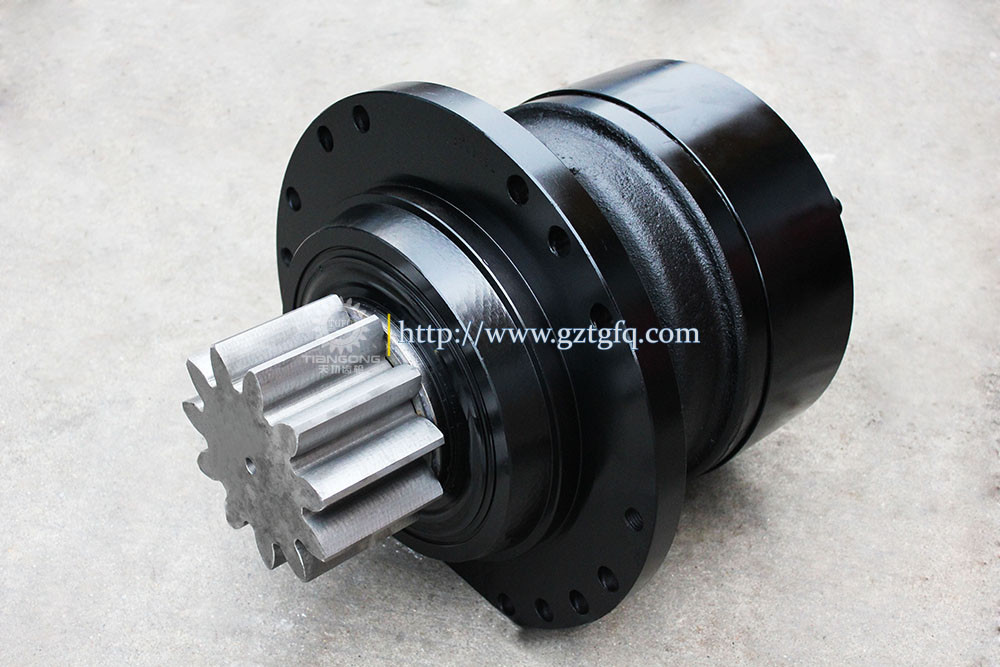

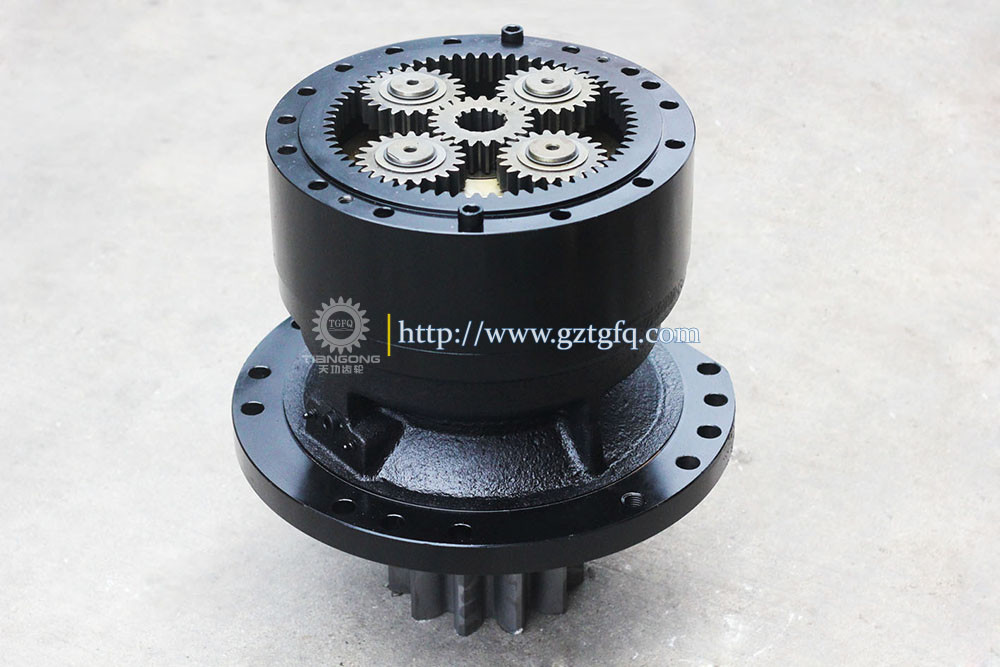

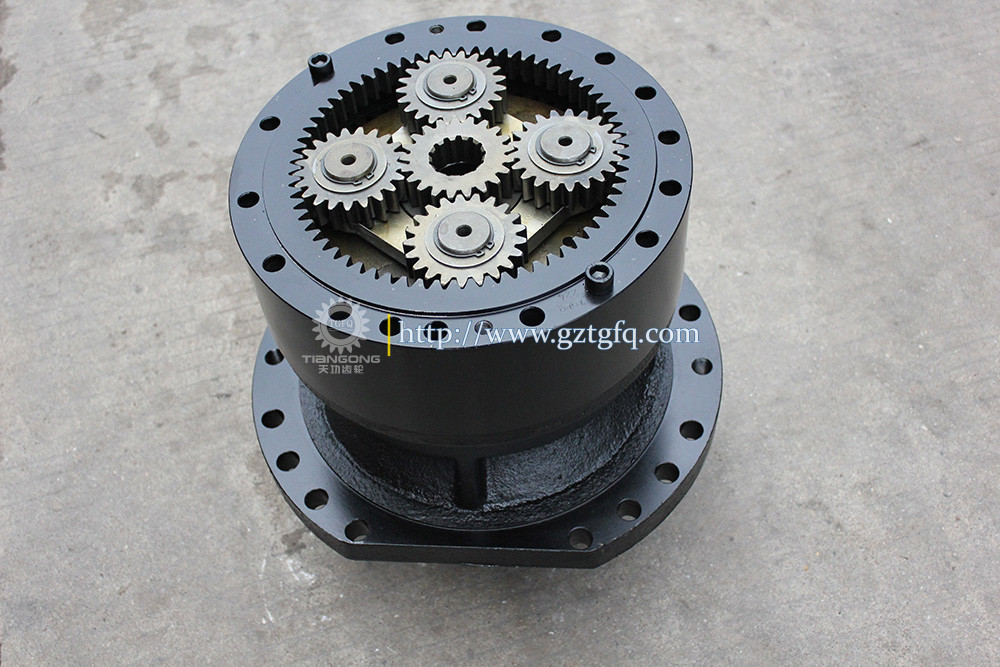

Product Photo:
Drawing:
Parts on group ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 -
(8/07-12/12) :
| Pos. | Part No | Qty | Parts name | Comments |
| . . | LS32W00012F1 | [1] | HYDRAULIC EQUIPMENT | KOB Swing Reduction Assembly |
| 1 | LQ32W01038P1 | [1] | FINGER ASSY. | KOB |
| 2 | LQ32W01027P1 | [1] | SHAFT, PLANETARY CAR | KOB |
| 3 | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB |
| 4 | LQ32W01031F1 | [1] | SPIDER | KOB |
| 5 | LQ32W01010P1 | [1] | GEAR | KOB |
| 6 | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB |
| 7 | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 8 | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 9 | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 10 | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB |
| 11 | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB |
| 12 | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB |
| 13 | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB |
| 14 | LQ32W01035P1 | [1] | OIL SEAL | KOB |
| 15 | NA | [1] | NOT SERVICED | FOR Housing |
| 16 | LC32W01033P1 | [1] | OIL SEAL | KOB |
| 17 | LQ32W01036P1 | [1] | SLEEVE | KOB |
| 18 | LQ32W01037P1 | [8] | WASHER | KOB |
| 19 | LQ32W01018P1 | [8] | WASHER | KOB Thrust |
| 20 | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 21 | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 22 | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23 | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 24 | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
Our service:
1. We have advanced technoledge .
2. Quick delivery and competitive price.
3. The larger quantity you order, the better price and faster delivery we can supply.
4. We have a professional team to offer professional service for you.
5. We can offer used and new, good quality, made in china parts to you.
6. All parts can check with part number, all parts can order follow part number.
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare
parts with in the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 22 years of production
experience in the excavated gear industry.
