EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

Guangzhou Tiangong Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer from wholesalers

    Buy cheap EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer from wholesalers
    • Buy cheap EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer from wholesalers
    • Buy cheap EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer from wholesalers
    • Buy cheap EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer from wholesalers

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EC460 EC480D
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    MOQ : 1 Piece
    • Product Details
    • Company Profile

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    Excavator Spare Part Reducer EC460 EC480D Voe14541030 Swing Reducer Gearbox

    Quick Details

    Model: EC460 EC480D
    Brand: TGFQ
    Part Number: VOE14541030 / SA7118-30130 / VOE14724277
    Part Name: Swing Reduction
    Motor: M5X130
    Process: Heat Treatment
    Delivery Methods: By Air / By Express / By Sea

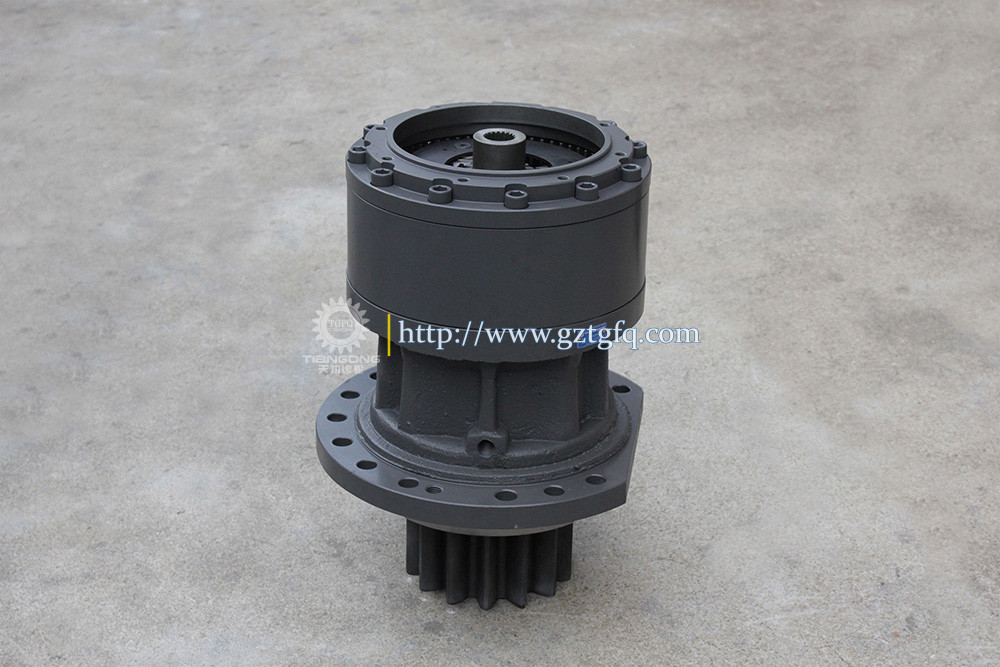

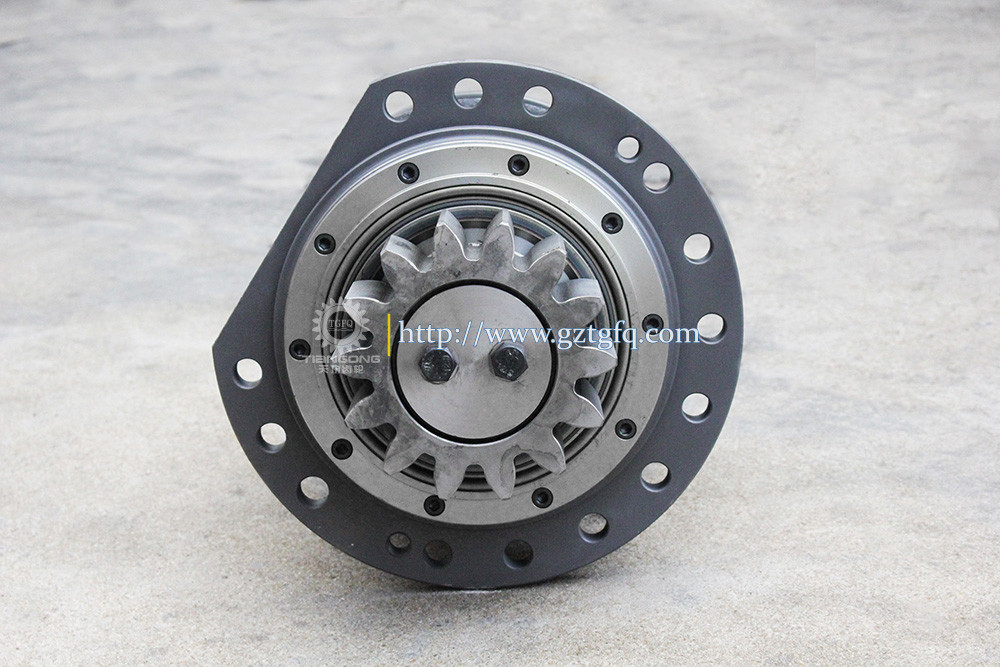

    Product Photo:

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing ReducerEC460 EC480D Excavator Swing Gearbox Voe14541030 Swing ReducerEC460 EC480D Excavator Swing Gearbox Voe14541030 Swing ReducerEC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    Drawing:

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    Parts on group Swing gearbox:

    Pos.Part NoQtyParts nameComments
     VOE14541030[1]Swing gearbox
    1VOE14529015[1]Valve
    2VOE14540404[1]Shaft
    3VOE14540405[1]Collar
    4VOE14509281[1]Cover
    5VOE990596[1]O-ring
    6VOE14508911[1]Seal
    7VOE993025[10]Hexagon screw
    8VOE14640027[1]Roller bearing
    9VOE14558674[1]Roller bearing
    10SA9541-01090[1]Retaining ring
    11SA7118-30510[1]Case
    12SA7118-30350[1]Ring gear
    13VOE950677[4]Pin
    14SA984363[12]Bolt
    15SA7118-30370[1]Plate
    16SA7118-30380[1]Thrust ring
    17SA7118-30390[1]Gear
    18SA7118-30480[1]Washer
    19SA7118-30490[1]Sun gear
    20SA7118-34510[1]Adapter
    21SA7118-30200[1]Planet carrier
    22SA7118-30230[3]Pin
    23SA7118-30260[6]Washer
    24SA9325-08010[3]Spring pin
    25SA7118-30220[3]Planetary gear
    26VOE14528725[1]Planet carrierSER NO 11515-11718 SER NO 80001-80334
     VOE14528725[1]Planet carrierSER NO 11719- SER NO 80335-
    27SA7118-30430[3]PinSER NO 11515-11718 SER NO 80001-80334
     VOE14528726[3]PinSER NO 11719- SER NO 80335-
    28VOE14550879[3]Needle bearingSER NO 11515-11718 SER NO 80001-80334
     VOE14550879[3]Needle bearingSER NO 11719- SER NO 80335-
    29SA7118-30450[3]Washer
    30SA7118-30460[3]Washer
    31SA9541-01042[3]Retaining ring
    32SA9325-08010[3]Spring pin
    33SA7118-30410[1]Planet carrier
    34SA7118-30420[3]Planetary gear
    100VOE14526214[1]Overhaul kit

    Size Information:

    Swing Reducer Gearbox For EC460

    Length(cm)
    Width(cm)
    Highly(cm)
    Weight(KG)
    48
    48
    70
    200

    Packaging Details:

    1.According to orders,pack the spare parts one by one by oil paper.
    2.Put the goods into wooden boxes if necessary especially for the shipments by sea.
    3. Goods is packed by oil paper and plastic bags inside.
    4.Using wooden case package.
    5.We support the custom-made demand for package.

    Related Products:

    We can supply you all kinds of excavator spare parts as following:

    Hydraulic Parts:

    Hydraulic pump, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Pump regulator,etc.

    Electric Parts:

    Controller, Monitor, Panel, Throttle motor, Solenoid valve, Wire harness, etc.
    Engine Parts:

    Cylinder block, Cylinder head, Crankshaft, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbocharger, Starter motor, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc.

    Other Parts:

    Seal kit, Floating seal, Joystick, Foot pedal valve, O-ring box, Coupling, etc.

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer


    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer


    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

    FAQ:
    common problem:
    Q: What can you do
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


    Q: how long is the warranty period?
    A: Within 6 months, we will provide you with maintenance spare parts with in the warranty period free of charge.


    Q: do you accept OEM or ODM?
    A: Yes, you just need to provide your logo file or ideas.


    Q: can I order one of our samples for testing first?
    A: Of course!


    Q: how do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: do you have a factory?
    A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
