SUMITOMO KSC10080 Swing Reducer SH350 CX360B SH380-6 Swing Gearbox
Quick Details |
| Model: SH350 CX360B |
| Brand: TGFQ |
| Part Name: Swing Reduction |
| Part Number: KSC10080 / KSC10240R / KSC10240C / KSC12120 |
| Process: Heat Treatment |
| Delivery Methods: By Air / By Express / By Sea |
Product Photo:

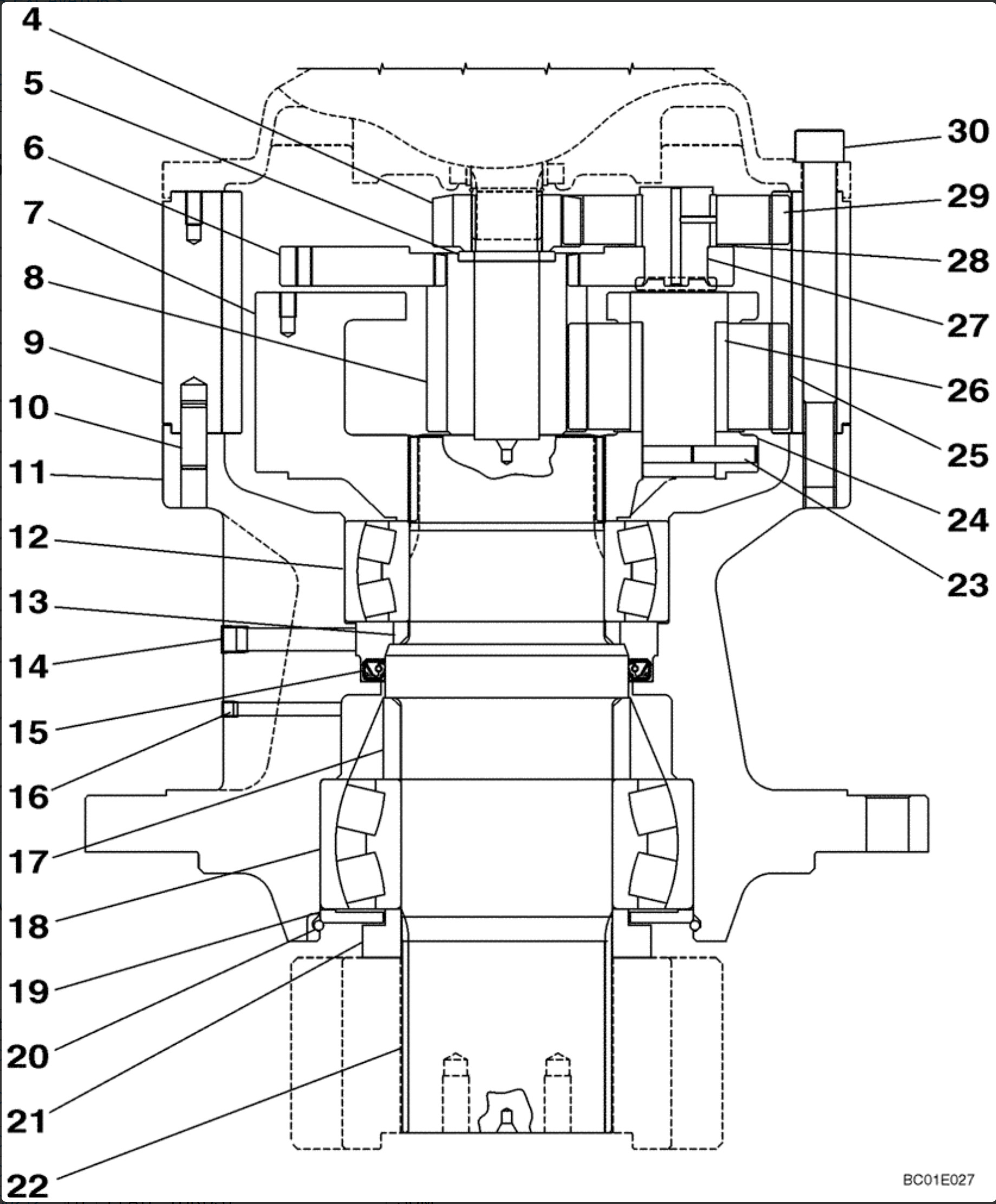

Drawing:
Parts on group Parts on group (CX350B) - CRAWLER EXCAVATOR TIER 3
(NA) (5/08-) :
| Pos. | Part No | Qty | Parts name | Comments |
| . . | KSC10080 | [1] | REDUCER | SUM Incl. 4 - 30 Superseded by part number: KSC10490 |
| . . | KSC10240R | [1] | REMAN-REDUCTION UNIT | RAC CX350B CRAWLER EXCAVATOR TIER 3 (NA) (5/08-), Reman for New PN
KSC10080 Superseded by part number: KSC10350R |
| . . | KSC10240C | [1] | CORE-REDUCTION UNIT | RAC Return Number |
| 4 | KSC10100 | [1] | SUN GEAR | SUM |
| 5 | KSC0212 | [1] | PLATE, THRUST | SUM |
| 6 | KSC0245 | [1] | CARRIER | SUM |
| 7 | KSC0246 | [1] | CARRIER | SUM |
| 8 | KSC0219 | [1] | SUN GEAR | SUM |
| 9 | KSC10110 | [1] | RING GEAR | SUM |
| 10 | KTC0155 | [4] | PIN | SUM |
| 11 | KSC10120 | [1] | HOUSING | SUM Gear |
| 12 | KSC0207 | [1] | BEARING,120mm ID x 200mm OD x 62mm W | SUM |
| 13 | KSC0210 | [1] | SPACER | SUM |
| 14 | 150824A1 | [1] | PLUG | SUM |
| 15 | KTC0153 | [1] | OIL SEAL | SUM |
| 16 | 158352A1 | [2] | PLUG | SUM |
| 17 | KSC0249 | [1] | SPACER | SUM |
| 18 | 150491A1 | [1] | ROLLER BEARING,130mm ID x 280mm OD x 93mm W | SUM |
| 19 | KSC0250 | [1] | BEARING COVER | SUM Bearing |
| 20 | KSC0251 | [1] | RETAINING WIRE | SUM |
| 21 | KSC0214 | [1] | SPACER | SUM |
| 22 | KSC0222 | [1] | SHAFT | SUM |
| 23 | NSS | [4] | NOT SOLD SEPARAT | CON Pin, 10 x 40 mm |
| 24 | NSS | [4] | NOT SOLD SEPARAT | CON Plate |
| 25 | NSS | [4] | NOT SOLD SEPARAT | CON Gear |
| 26 | NSS | [4] | NOT SOLD SEPARAT | CON Pin |
| 27 | NSS | [3] | NOT SOLD SEPARAT | CON Pin |
| 28 | NSS | [3] | NOT SOLD SEPARAT | CON Plate |
| 29 | NSS | [3] | NOT SOLD SEPARAT | CON Gear |
| 30 | 150483A1 | [12] | BOLT,Hex Skt, M20 | SUM |
Size Information:Length(cm) | Width(cm) | Highly(cm) | Weight(KG) |
58 | | 76 | 375 |
