Good Quality TGFQ 22216 Spherical Roller Bearing Large Stock
Product Description
Spherical roller bearing:Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not susceptible to the influence of the angle between the shaft and the bearing housing on the error or shaft bending, and it is suitable for installation errors or shaft deflection caused by angle errors. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
Mainly applicable cage: stamped steel plate reinforced cage (suffix E, very few in China). Stamped steel plate cage (suffix CC), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined brass two-piece cage (suffix MB). Machined brass integral cage (suffix CA/CAM), stamped steel cage for vibration occasions (suffix JPA). Brass cage (suffix EMA) for vibration occasions. The same structure may have different codes on the bearings.
Appliion:Paper machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings with seat.
| Appliion: | Excavator Bearing |
| Product Number: | Spherical Roller Bearing |
| Size: | 80*140*33 |
| Lubried: | Grease |
| Series: | Ball Swing Bearing |
| Material: | Gcr15 Chrome Steel Bearing |
| Clearance: | C4, C3, C0, C5, C2 |
| Material: | Chrome Steel Bearing |
Excavator bearing, angular contact bearing size chart
| Bearing number | Dimensions |
| d | D | B |
| BA152-2036 | 15 | 203 | 26 |
| BA222-1WSA | 222 | 273 | 26 |
| BA220-6SA | 220 | 276 | 26 |
| BA240-3ASA | 240 | 310 | 33.5 |
| SF4815VPX1 | 240 | 310 | 34 |
| SF4831PX1 | 240 | 310 | 33.4 |
| AC5033 | 250 | 330 | 37 |
| AC5836 | 289 | 355 | 34 |
| AC463240 | 230 | 320 | 40 |
| HS05145 | 117 | 145 | 14 |
| HS05154 | 126 | 154 | 14 |
| HS05383 | 320 | 383 | 30 |
| MC6034 | 300 | 340 | 18 |
| 180BA-2256 | 180 | 225 | 22 |
| B-SF4454PX1 | 220 | 295 | 33 |
| BA260-4 | 260 | 340 | 38 |
| AC4629 | 230 | 290 | 27 |
| BA230-7ASA | 230 | 300 | 35 |
| SF3607 | 180 | 225 | 15 |
| BA180-4WSA | 180 | 250 | 33 |
| AC4531 | 225 | 315 | 36 |
| AC4631 | 230 | 310 | 39 |
| BA4852PX1 | 240 | 310 | 33 |
| R196Z-4 | 196.85 | 241.3 | 17.462/23.812 |
| AC463240 | 230 | 320 | 40 |
| 180N19W | 180 | 250 | 33 |
| 200BA27V-2 | 200 | 270 | 33 |
| 210BA29V | 210 | 295 | 35 |
| AC423040-1 | 210 | 300 | 40 |
| AC4630 | 230 | 300 | 35 |
| BA280-2SA | 280 | 370 | 40 |
| BA300-4WSA | 300 | 395 | 50 |
| BD130-1SA | 130 | 166 | 34 |
| BN220-1 | 220 | 280 | 28 |
| CR4411PX1 | 220 | 290 | 32 |
| CR6016PX1 | 300 | 380 | 38 |
| SF2812PX1 | 140 | 175 | 17.5 |
| SF3227PX1 | 160 | 200 | 20 |
| SF4007PX1 | 200 | 250 | 25 |
| SF4019PX1 | 200 | 260 | 30 |
Product Display

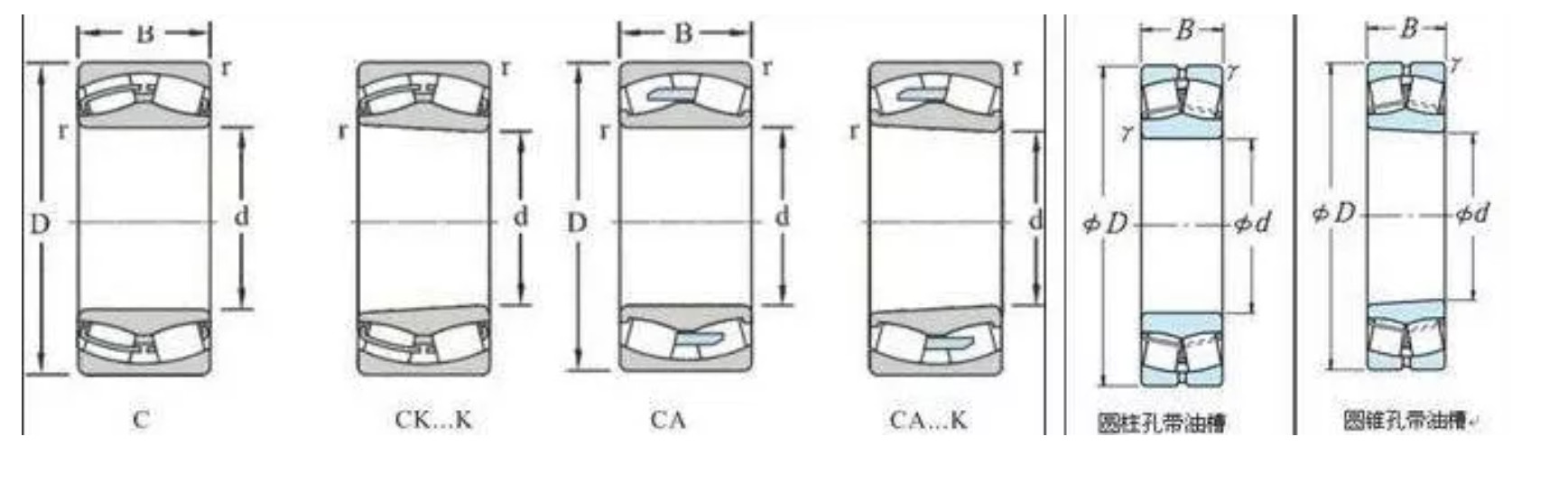

| W33 | Annular groove and three lubriion holes in the outer ring | ■ |
| K | Tapered bore, taper 1:12 | ■ |
| K30 | Tapered bore, taper 1:30 | ■ |
| W20 | Three lubriion holes in the outer ring | ■ |
| W26 | Six lubriion holes in the inner ring | ■ |
| W | Without annular groove and lubriion holes | ■ |
| SH | Outer ring screw holes (can be customized) | ■ |
| 2RS | Contact seal, NBR, on one or both sides | ■ |
| CA | Overall machined brass cage | ■ |
| CC | Two stamped steel cages | ■ |
| E , E1 | Two stamped steel cages | ■ |
| MB | Two machined brass cages | ■ |
| FA | One or two machined steel cages | ■ |
| ER | One or two machined steel cages | ■ |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
