SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

Ask Lasest Price
Brand Name :	TGFQ
Model Number :	SK50P
Price :	1000.00-5000.00usd
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	1000 pcs / month
Delivery Time :	2-3days

Add to Cart

Product Details
Company Profile

SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

TGFQ SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

PRODUCT DESCRIPTION

Model: SK200-6

Brand: TGFQ

Outer Packing: Wooden case

egory: Excavator Slew Device

Part Number: YN15V00026F6

Motor No.: M5X130

Means of Transport: By Sea, By Air or By Express

Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

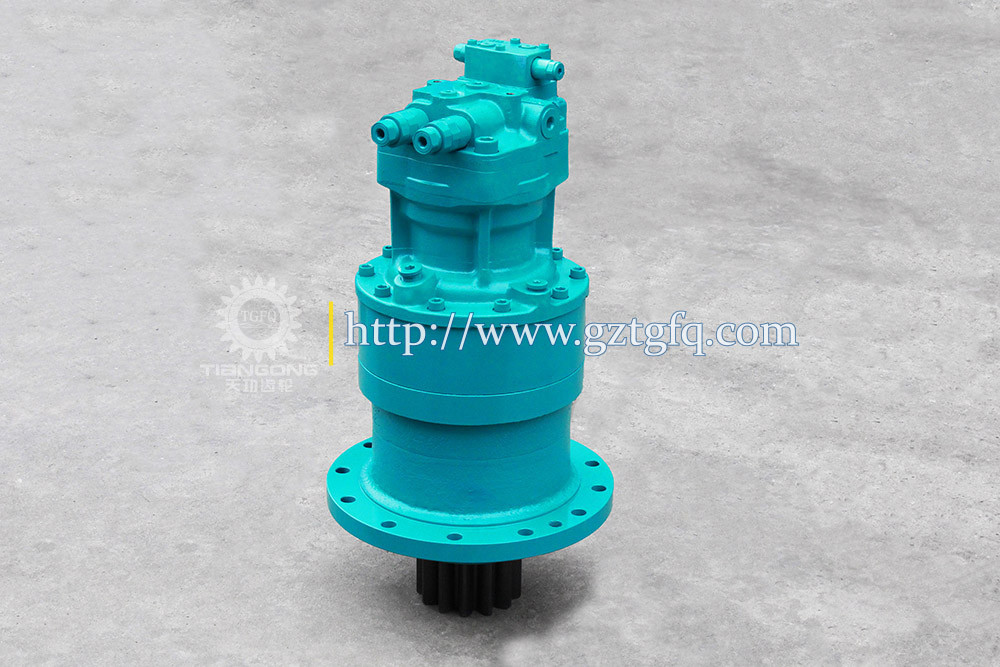

SK200-6 Slew Device Photo:

SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

Drawing:

Pos.	Part No	Qty	Parts Name	Comments
. .	YN15V00025F1	[1]	HYDRAULIC MOTOR	KOB Superseded by part number: YN15V00025F4
. .	YN15V00025F2	[1]	MOTOR ASSY (SWING)
. .	YN15V00025F3	[1]	MOTOR	KOB Superseded by part number: YN15V00025F5
. .	YN15V00025F5R	[1]	REMAN-HYD MOTOR	KOB SK200LC-6ES BTW YQ10-05501 - YQ10-05981, SK200-6ES BTW YN10-38001 - YN10-41732, Reman for new PN YN15V00025F3
. .	YN15V00025F5C	[1]	CORE-MOTOR HYDRAULIC	KOB Return Number
. .	YN15V00025F4	[1]	HYDRAULIC MOTOR,121.6CC	KOB ASSY (SWING)
. .	YN15V00025F5	[1]	MOTOR	KOB ASSY (SWING)
51	YN22V00014F1	[2]	VALVE	KOB ASSY, RELIEF (F1, F4 ONLY)
52	YN20V00004F1	[1]	VALVE	KOB ASSY, SWING-REACTIONLESS (F1, F3 ONLY)
53	YN22V00028F1	[2]	VALVE ASSY, RELIEF (F2 ONLY)
53-1.	ZD12G03000	[1]	O-RING,29.40mm ID x 35.60mm OD x 3.10mm	KOB ID 29.4 ± 0.29 x OD 35mm (F2 Only)
54	YN22V00030F1	[2]	VALVE	KOB ASSY, RELIEF (F3, F5 ONLY)
54-1.	ZD12G03000	[1]	O-RING,29.40mm ID x 35.60mm OD x 3.10mm	KOB ID 29.4 ± 0.29 x OD 35mm (F3, F5 Only)
55	YN20V00004F4	[2]	CONTROL VALVE	KOB ASSY, SWING-REACTIONLESS (F2, F4, F5 ONLY)
101	YN15V00025S101	[1]	SHAFT	KOB
111	YN15V00025S111	[1]	CYLINDER	KOB
114	YN15V00025S114	[1]	SPRING	KOB
121	NSS	[9]	NOT SOLD SEPARAT	CON PISTON
122	NSS	[9]	NOT SOLD SEPARAT	CON SHOE
123	YN15V00025S123	[1]	PLATE	KOB SET
124	YN15V00025S124	[1]	PLATE	KOB SHOE
131	YN15V00025S131	[1]	PLATE	KOB VALVE
301	YN15V00025S301	[1]	CASE	KOB
303	NSS	[1]	NOT SOLD SEPARAT	CON CASE
351	YN15V00002S351	[2]	HYDRAULIC VALVE	KOB PLUNGER Superseded by part number: YN15V00025S351
355	YN15V00002S355	[2]	SPRING	KOB
390	2437U407S981	[1]	LABEL	KOB NAME PLATE
391	2437U407S983	[2]	RIVET	KOB PIN
401	ZS23C20045	[4]	CAP,Hex Socket Head, M20 x 45mm	KOB Screw, M20 x 2.5 x 45mm
443	YN15V00002S011	[1]	ROLLER BEARING	KOB ROLLER
444	LQ15V00008S010	[1]	ROLLER BEARING	KOB ROLLER
451	NSS	[2]	NOT SOLD SEPARAT	CON PIN
469	YN15V00002S012	[2]	PLUG	KOB
472	2441U564S735	[1]	O-RING,3.5mm Thk x 173mm ID, 75 Duro	KOB (F1, F2, F3 ONLY) Superseded by part number: YN15V00025S489
488	ZD12P02800	[2]	O-RING	KOB ID 27.70 ± 0.27 x OD 34mm
489	YN15V00025S489	[1]	O-RING,3.5mm Thk x 173mm ID, 75 Duro	KOB (F4, F5 ONLY)
491	2441U509S491	[1]	OIL SEAL	KOB
702	YN15V00002S014	[1]	PISTON	KOB BRAKE
706	2441U736S706	[1]	O-RING	KOB
707	2415U188S707	[1]	O-RING	KOB
712	YN15V00025S712	[16]	SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring)	KOB BRAKE
742	YN15V00025S742	[3]	PLATE,ID14mm : OD15.5mm : W=1.7mm	KOB FRICTION
743	YN15V00025S743	[4]	PLATE,ID14mm : OD15.5mm : W=2mm	KOB SEPARATOR
980	LQ15V00001S982	[1]	PLUG	KOB
984	YN15V00002S984	[1]	PLUG	KOB
985	LQ15V00001S983	[3]	PLUG	KOB
993	ZE82T08000	[1]	PLUG	KOB 1/2" PT
994	ZE82T12000	[1]	PLUG	KOB 3/4" PT
. .	YN15V00025R100	[1]	REPAIR KIT	KOB CONSISTS OF REF. 121(9), 122(9)
. .	YN15V00025R200	[1]	REPAIR KIT	KOB CONSISTS OF REF. 303(1), 451(2)
. .	YN15V00025R300	[1]	SEAL ASSY.	KOB REPAIR KIT, CONSISTS OF REF. 472(1), 488(2), 491(1), 706(1), 707(1) (F1, F2, F3 ONLY)
. .	YN15V00025R400	[1]	REPAIR KIT	KOB CONSISTS OF REF. 488(2), 489(1), 491(1), 706(1), 707(1) (F4, F5 ONLY)

SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

SK200-6 Excavator Swing Gearbox With Motor Kobelco Spare Parts YN15V00026F6

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
