    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : PC300-7
    Price : 1000.00-5000.00usd
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator


    PRODUCT DESCRIPTION

    Model:PC300-7

    egory: Excavator Swing Motor Assy

    Brand: TGFQ

    Part Number: 706-7K-01081

    Outer Packing: Wooden case

    Package Size: 51*51*59CM

    Delivery Time: 1-3 days (after receive the payment)

    Means of Transport: By Sea, By Air or By Express

    Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.


    Overview Of Swing Motor

    Excavator slewing hydraulic system oil circuit, it is mainly composed of slewing hydraulic motor, slewing ring gear and control valve, the system has braking, oil supply anti-cavitation, anti-hydraulic impact, slewing priority and other functions.

    The slewing motor in the full hydraulic excavator is the key part of the slewing mechanism, which is to convert the oil pressure provided by the main pump into mechanical energy and input it to the reducer. Its working performance will directly affect the rotary speed of the whole machine, drive torque, rotary parking and parking brake, is the key to determine the productivity of the whole machine. Rotary motors are divided into low speed high torque motor and high speed rotary motor two egories

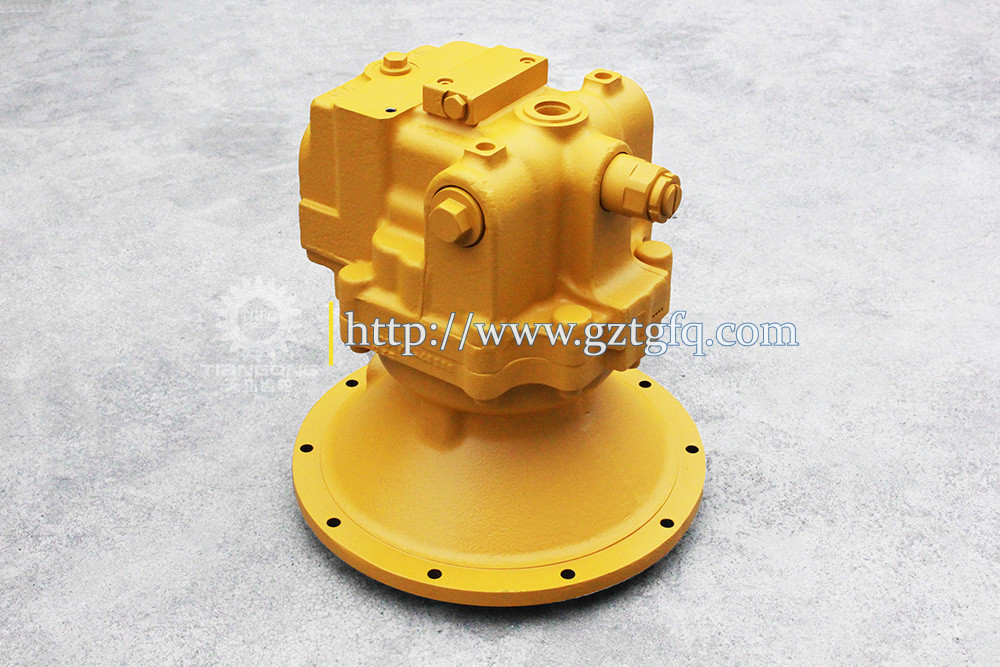

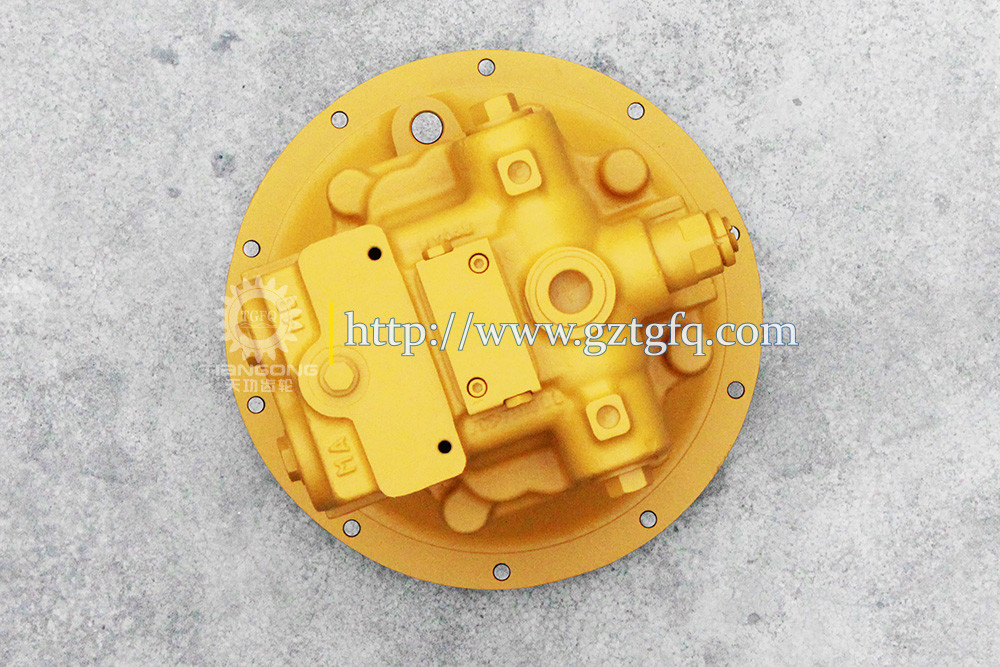

    Picture Of Swing Motor

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    Drawing Of Swing Motor

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator


    Pos.Part NoQtyParts nameComments
    706-7K-01081[1]Swing Motor Assembly Komatsu105 kg.
    ["SN: 61913-UP"] analogs:["7067K01080"] |$0.
    706-7K-03061[1]Motor Subassembly Komatsu China
    ["SN: 61913-UP"] |$1.
    1706-7K-41151[1]Case Komatsu32 kg.
    ["SN: 61913-UP", "SCC: C2"]
    2706-7K-71110[1]Housing Komatsu37 kg.
    ["SN: 61913-UP", "SCC: C2"]
    3706-7K-40010[1]Bearing Komatsu0.15 kg.
    ["SN: 61913-UP", "SCC: C2"]
    4706-75-42830[1]Pin, Dowel Komatsu0.02 kg.
    ["SN: 61913-UP", "SCC: C2"]
    5706-77-72280[1]Plug Komatsu0.08 kg.
    ["SN: 61913-UP"]
    607002-52034[1]O-ring Komatsu0.03 kg.
    ["SN: 61913-UP"] analogs:["0700242034"]
    7709-74-92810[2]Valve Komatsu0.063 kg.
    ["SN: 61913-UP"]
    8709-75-92220[2]Spring Komatsu0.001 kg.
    ["SN: 61913-UP"]
    9709-74-92821[2]Plug Komatsu0.4 kg.
    ["SN: 61913-UP"]
    10723-46-41820[2]O-ring Komatsu0.006 kg.
    ["SN: 61913-UP"]
    11700-93-11330[2]Ring, Back-up Komatsu0.01 kg.
    ["SN: 61913-UP"]
    12706-77-72130[2]Valve Komatsu0.31 kg.
    ["SN: 61913-UP"]
    13706-77-72140[2]Spring Komatsu0.02 kg.
    ["SN: 61913-UP"]
    14706-77-72150[2]Plug Komatsu0.52 kg.
    ["SN: 61913-UP"]
    1507002-54234[2]O-ring Komatsu0.04 kg.
    ["SN: 61913-UP"] analogs:["0700244234"]
    16706-7K-40030[1]O-ring Komatsu0.000 kg.
    ["SN: 61913-UP", "SCC: C2"]
    1701252-61450[10]Bolt, Hexagon Socket Head Komatsu0.087 kg.
    ["SN: 61913-UP"] analogs:["7051703370"]

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    706-7K-01081 Komatsu PC300-7 Swing Motor Assy Parts Of Excavator

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
