Brand Name : | TGFQ |
Model Number : | ZX120 ZX130-3 |
Price : | 200.00-800.00USD |
Payment Terms : | L/C, T/T, D/P, D/A |
Supply Ability : | 500 pcs / month |
Delivery Time : | 1-3days |
9262017 Excavator Parts Swing Gearbox Assy For ZX120 ZX130-3
Quick Details |
Model: ZX120 ZX130-3 |
Brand: TGFQ |
Part Number: 9262017 / 9277217 |
Part Name: Excavator Swing Gearbox |
Process: Heat Treatment |
Delivery Methods: Air/ Express/ Sea |

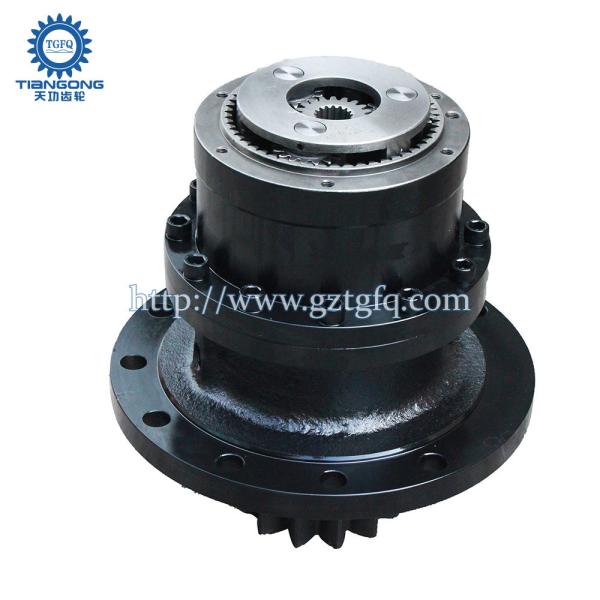

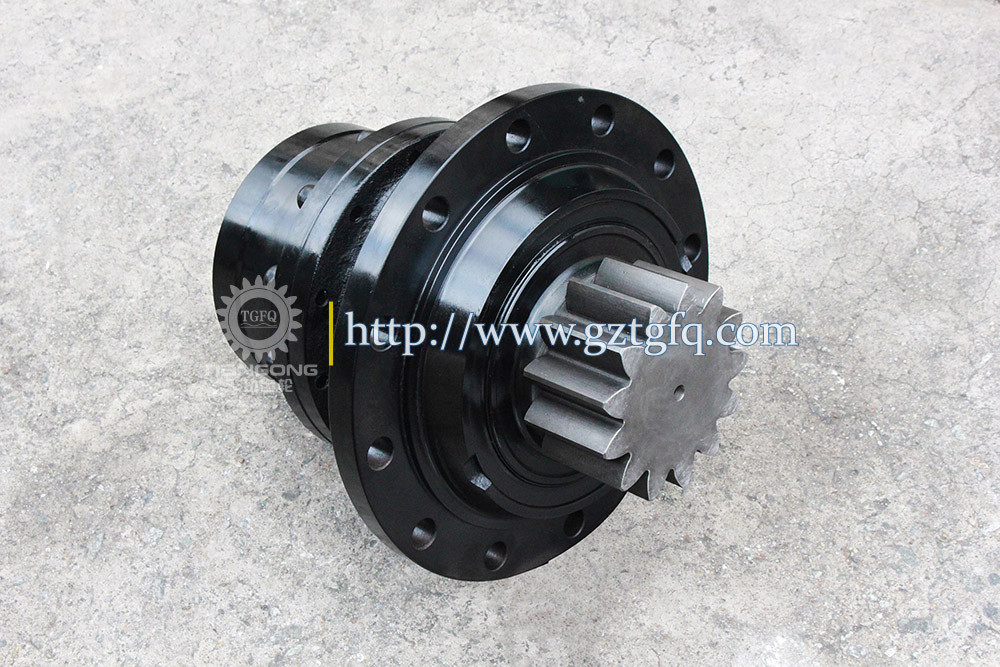

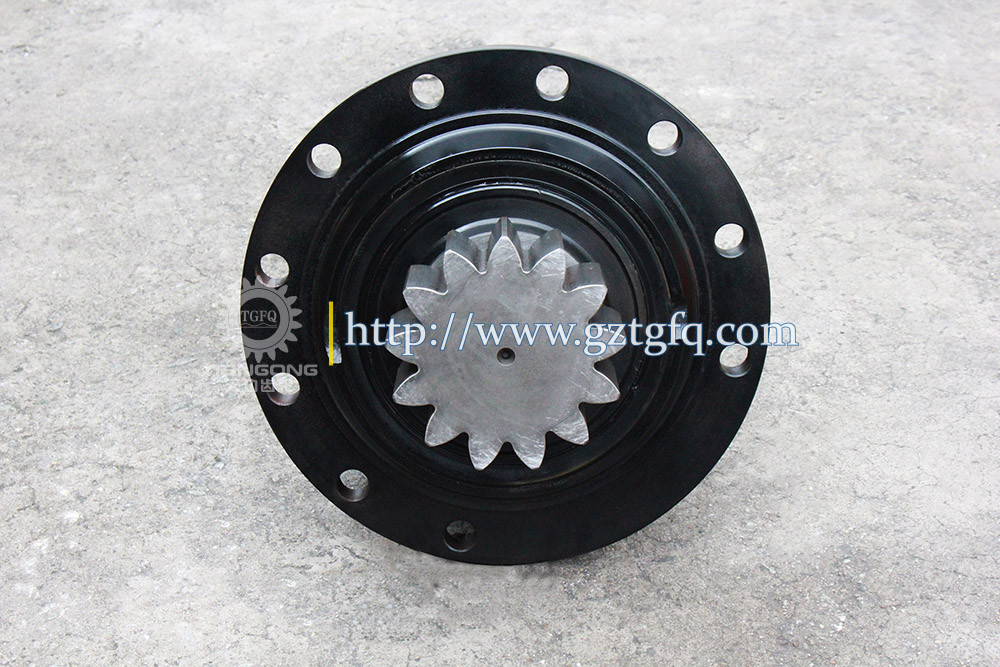

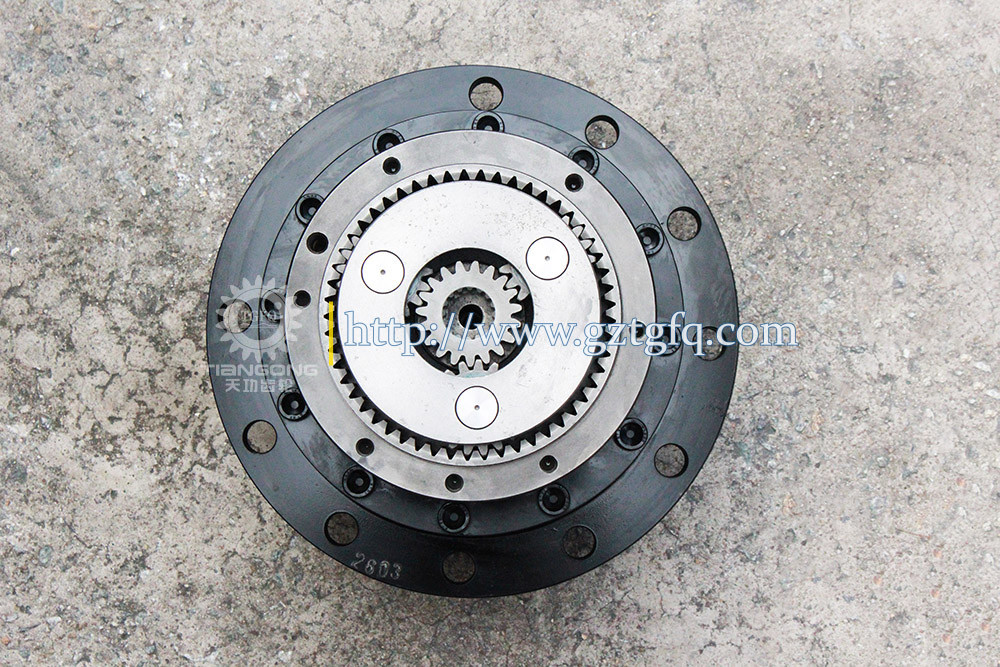

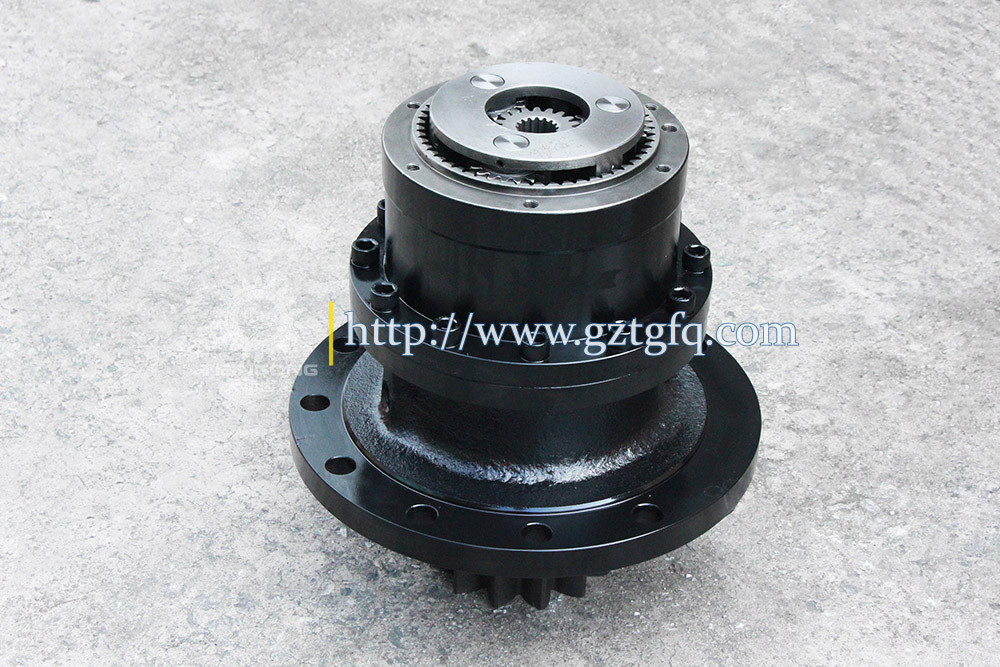

Product Photo:
Drawing:
Pos. | Part No | Qty | Parts name |
9262017 | [1] | T.MISSION (SWING) | |
-9277217 | [1] | T.MISSION (SWING) | |
0 | 2053848 | [1] | SHAFT;PROP. |
1 | 3083710 | [1] | SLEEVE |
2 | A811095 | [1] | O-RING |
3 | 4430041 | [1] | BRG.;ROL. |
4 | 4411143 | [1] | SEAL;OIL |
5 | 1033421 | [1] | HOUSING |
6 | 4408119 | [1] | BRG.;ROL. |
7 | 3083674 | [1] | NUT |
8 | 4407745 | [1] | PLATE;LOCK |
11 | 2042965 | [1] | CARRIER |
12 | 4176070 | [1] | PLATE;THRUST |
13 | 4408102 | [3] | PIN |
14 | 4414855 | [3] | BRG.;NEEDLE |
15 | 3084940 | [3] | GEAR;PLANETARY |
16 | 4414833 | [6] | PLATE;THRUST |
17 | 4116308 | [6] | PIN;SPRING |
19 | 3092035 | [1] | GEAR;SUN |
20 | 2045146 | [1] | GEAR;RING |
21 | M341440 | [12] | BOLT;SOCKET |
22 | J901016 | [2] | BOLT |
23 | 2042964 | [1] | CARRIER |
24 | 4244904 | [1] | PLATE;THRUST |
25 | 4408122 | [3] | PIN |
26 | 4430040 | [3] | BRG.;NEEDLE |
27 | 3083741 | [3] | GEAR;PLANETARY |
28 | 4408002 | [3] | PLATE;THRUST |
29 | 3083740 | [1] | GEAR;SUN |
31 | 3087949 | [1] | PIPE |
33 | 94-2012 | [1] | PLUG |
34 | 4445352 | [1] | PLUG |
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by
one.
4.Put the bigger carton boxes into wooden boxes if necessary
especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
![]() |
